Lasers & Light Sources

Compare the largest catalog of light sources and lasers among the top internationally trusted suppliers.

Product	Emission Wavelength	Output Optical Power	Optical Fiber	Availability	Price (USD)

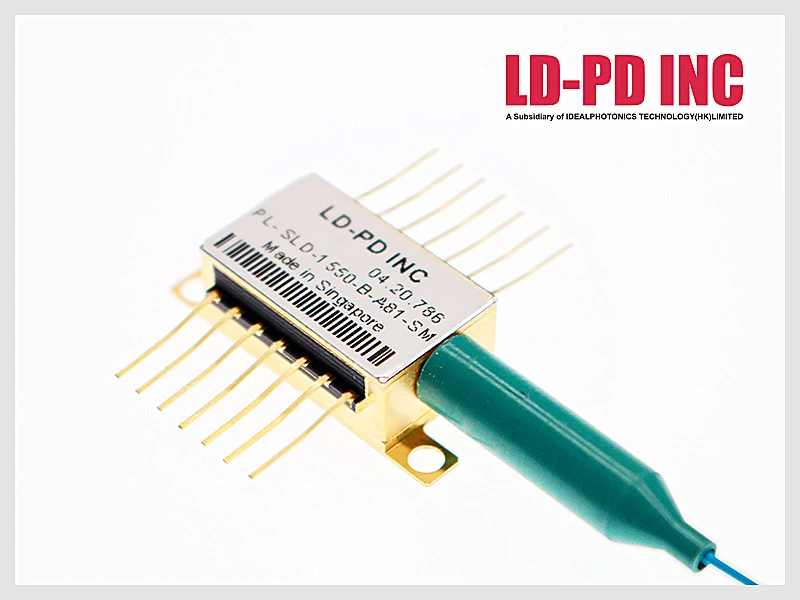

SWIR SLD	1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum)	15 mW (Minimum, CW) 20 mW (Typical, CW)	SM15-PS-U25D	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum) Output Optical Power 15 mW (Minimum, CW) 20 mW (Typical, CW) Optical Fiber SM15-PS-U25D Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 17 mA (Minimum) 50 mA (Maximum) Thermistor Resistance 10 kΩ Polarization Extinction Ratio 18 dB (Typical, PM Version) TEC Current 2.5 A TEC Voltage 4 V Fiber Length 1 m Forward Current 600 mA (--, Minimum, Maximum) Reverse Voltage 2 V (LD) 15 V (PD) 2 V (--, Minimum, Maximum) Maximum Current 600 mA Mode Field Diameter 10.5 μm (±500 nm, at 1.55 μm) Numerical Aperture 0.12 Storage Temperature -10 to 65 °C -40 °C (Minimum) 85 °C (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Upconversion Module	532 nm (±0.5 nm)	> 100 mW (output with) 700 mW (pump)	PM980 (Input)	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 532 nm (±0.5 nm) Output Optical Power > 100 mW (output with) 700 mW (pump) Optical Fiber PM980 (Input) Emission Range Visible Thermistor Resistance 10 kΩ (at 25 °C) Applications Wavelength Conversion Output Polarization Linear Input Wavelength 1064 nm (±1 nm) Operating Temperature 10 °C, 35 °C Storage Temperature -20 °C, 70 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.

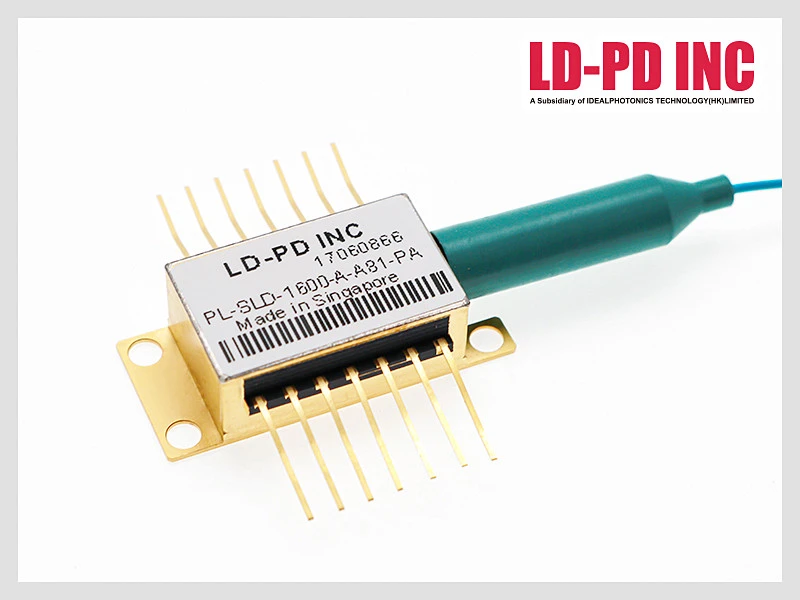

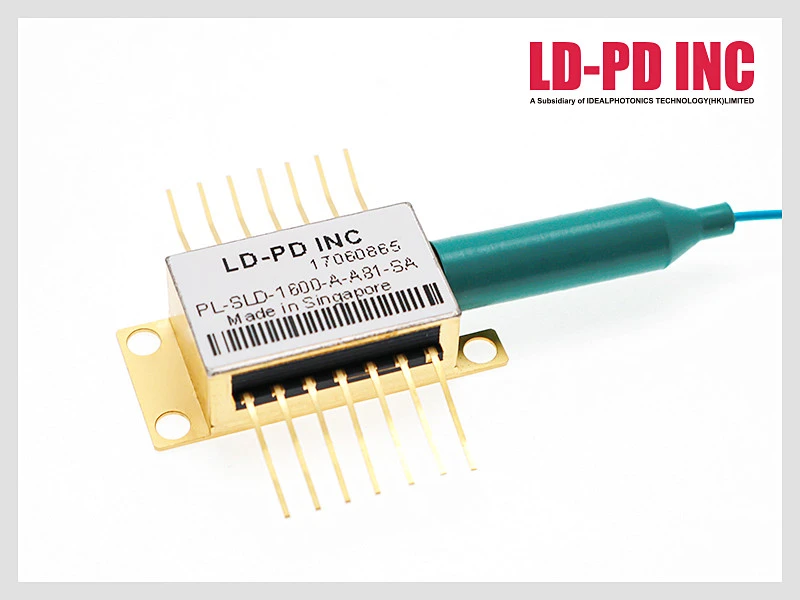

SWIR SLD	1590 nm (Minimum) 1600 nm (Typical) 1610 nm (Maximum)	10 mW (Typical, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1590 nm (Minimum) 1600 nm (Typical) 1610 nm (Maximum) Output Optical Power 10 mW (Typical, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 400 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 40 nm (Minimum) 50 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Diode Laser	1550 nm (±5 nm)	> 10 mW, 20 mW	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1550 nm (±5 nm) Output Optical Power > 10 mW, 20 mW Optical Fiber PM Fiber Emission Range Short-Wave IR Fiber Connector Type FC/APC Output Mode Fiber Coupled Key Features External Cavity Narrow linewidth Frequency & Mode Operation Narrow Linewidth Single Transverse Mode Linewidth (FWHM) < 10 kHz, < 1 kHz, < 100 Hz Optical Isolation > 40 dB Supply Voltage 5 - 6 V Operating Temperature -10 to 60 °C Relative Intensity Noise < -150 dB/Hz Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	1528 nm (Minimum) 1562 nm (Maximum)	-	SMF-28E+	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1528 nm (Minimum) 1562 nm (Maximum) Optical Fiber SMF-28E+ Emission Range Short-Wave IR Operating Current 450 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Thermistor Resistance 10 kΩ (Typical) Forward Voltage 1.6 V (Typical) 1.8 V (Maximum) TEC Current 230 mA (Typical) 1.5 A (Maximum) TEC Voltage 500 mV (Typical) 4 V (Maximum) Dimensions 1.5 mm (typical) Length 1.5 mm (Typical) Saturation Output Power 12 dBm (at -3 dB, Minimum) 14 dBm (at -3 dB, Typical) Signal Gain 10 dB (at -20 dBm, Minimum, Small Signal Gain) 13 dB (at -20 dBm, Typical, Small Signal Gain) Noise Level 8 dB (Typical) 9.5 dB (Maximum) Polarization Dependent Gain 1 dB (Typical) 1.8 dB (Maximum) Refractive Index 3.2 (Typical) Voltage Ripple 0.1 dB (Typical) 0.5 dB (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	795 nm (±0.5 nm)	100 mW - 2.1 W	PM Fiber (Output)	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 795 nm (±0.5 nm) Output Optical Power 100 mW - 2.1 W Optical Fiber PM Fiber (Output) Emission Range Near IR Fiber Connector Type FC/APC (Output) Operation CW Output Mode PM Fiber Key Features Narrow linewidth Frequency & Mode Operation Depends on Seed Laser Narrow Linewidth Single Transverse Mode Side Mode Suppression Ratio > 27 dB Linewidth (FWHM) < 100 kHz Optical Power Stability RMS≤0.5% Supplier Location Singapore See product details More from LD-PD PTE. LTD.

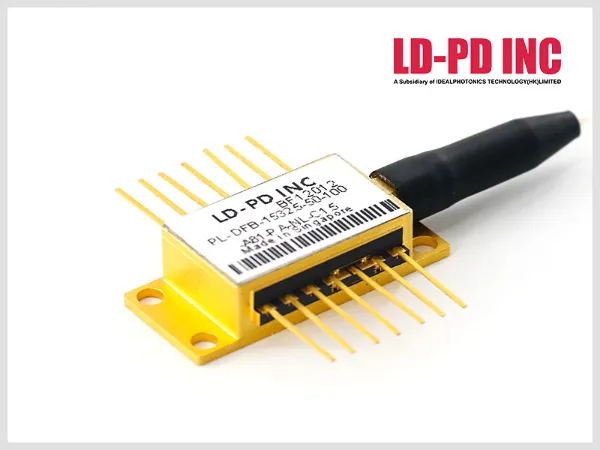

Fiber-Coupled Distributed-Feedback (DFB) Laser Diode	1531.5 nm (Minimum) 1532.5 nm (Typical) 1533.5 nm (Maximum)	60 mW (Typical, CW) 100 mW (Maximum, CW)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1531.5 nm (Minimum) 1532.5 nm (Typical) 1533.5 nm (Maximum) Output Optical Power 60 mW (Typical, CW) 100 mW (Maximum, CW) Optical Fiber PM Fiber Emission Range Short-Wave IR Operating Current 600 mA (Typical) 800 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material DFB Diode Threshold Current 15 mA (Typical) 30 mA (Maximum) Key Features Distributed Feedback (DFB) Narrow linewidth Frequency & Mode Operation Narrow Linewidth Single Transverse Mode Tunable Side Mode Suppression Ratio 40 dB (Minimum) Linewidth (FWHM) < 50 kHz 50 kHz (Typical) 100 kHz (Maximum) Polarization Extinction Ratio 20 dB (Minimum) Optical Isolation 40 dB (Minimum) Voltage 1.5 V (Typical) 1.8 V (Maximum) 4.75 V (Minimum) 5.25 V (Maximum) Operating Temperature -40 °C (Minimum) 25 °C (Typical) 80 °C (Maximum) Relative Intensity Noise -163 dB/Hz (Typical) -155 dB/Hz (Maximum) Storage Temperature -40 °C (Minimum) 80 °C (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	820 nm (Minimum) 825 nm (Typical) 830 nm (Maximum)	-	HI780	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 820 nm (Minimum) 825 nm (Typical) 830 nm (Maximum) Optical Fiber HI780 Emission Range Near IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Forward Voltage 2.5 V (Maximum) Wavelength Bandwidth (FWHM) 20 nm (Minimum, CW) 25 nm (Typical, CW) 30 nm (Maximum, CW) Voltage 2.7 V (Maximum) Forward Current 400 mA 300 mA (Typical) 350 mA (Maximum) Reverse Voltage 1.8 V (LD) Saturation Output Power 8 dBm (Minimum) 9 dBm (Typical) 10 dBm (Maximum) Thermal Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Noise Level 7 dB (Minimum) 8 dB (Typical) 9 dB (Maximum) Polarization Dependent Gain 10 dB (Typical) Voltage Ripple 1 dB (Typical) 2 dB (Maximum) Storage Temperature -20 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.

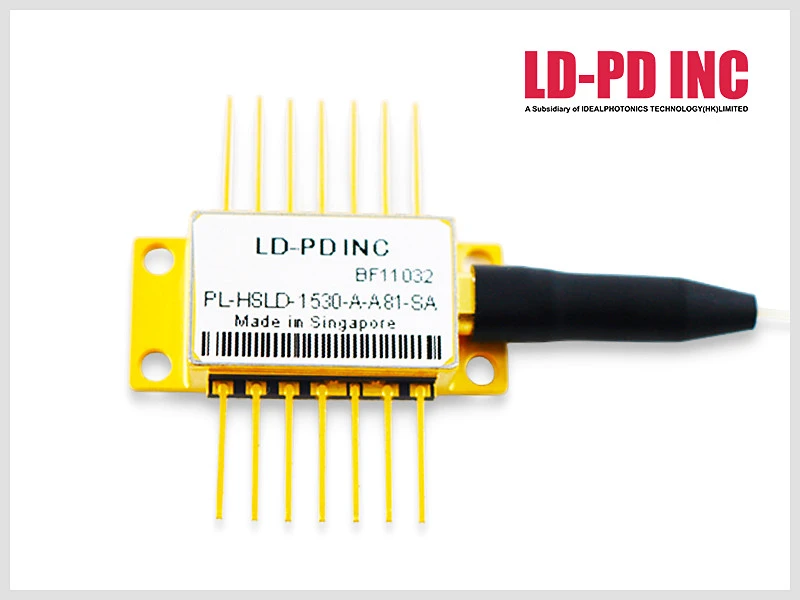

SWIR SLD	1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum)	20 mW (Typical, Coupled) 30 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum) Output Optical Power 20 mW (Typical, Coupled) 30 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 400 mA (Typical) 600 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
NIR SLD	1270 nm (Minimum) 1280 nm (Typical) 1290 nm (Maximum)	10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1270 nm (Minimum) 1280 nm (Typical) 1290 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 350 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Laser	1060 nm (Minimum) 1064 nm (Typical) 1068 nm (Maximum)	3 W (Maximum, Average)	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1060 nm (Minimum) 1064 nm (Typical) 1068 nm (Maximum) Output Optical Power 3 W (Maximum, Average) Emission Range Near IR Operation Pulsed Frequency & Mode Operation Single Transverse Mode Peak Optical Power 8 kW (Typical, Main) 12 kW (Maximum, Main) Voltage 24 V (Minimum) 28 V (Typical) 32 V (Maximum) Fiber Length 10 mm (Minimum) 500 mm (Maximum) Output Polarization Random Weight 300 g (Maximum) Spatial Mode/Shape TEM00 Beam Quality (M²) 1.3 (Maximum) Repetition Rate 5 kHz (Minimum) 50 kHz (Typical) 2 MHz (Maximum) Cooling System Contact Pulse Energy 600 μJ (Calculated) Pulse Jitter 200 ps (Maximum) Operating Temperature -40 °C (Minimum) 65 °C (Maximum) Fiber Numerical Aperture 0.08, 0.22 (Typical) Optical Power Stability 5 % (Maximum) (RMS) Storage Temperature -40 °C (Minimum) 85 °C (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	1538 - 1565 nm	100 mW (Minimum) 8 W (Maximum)	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1538 - 1565 nm Output Optical Power 100 mW (Minimum) 8 W (Maximum) Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Optical Isolation > 45 dB (Input) > 45 dB (Output) Fiber Length 2 m (±100 mm) Interfaces RS-422 Operating Temperature -5 to 55 °C Input Optical Power 10 mW (10 - 10 dBm) Noise Level 6.5 dB Operating Voltage 220 V (AC) Storage Temperature -40 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Laser	1554.94 - 1607.46 nm	10 mW	PM1550, SMF-28	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1554.94 - 1607.46 nm Output Optical Power 10 mW Optical Fiber PM1550, SMF-28 Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Key Features Tunable Frequency & Mode Operation Tunable Side Mode Suppression Ratio > 50 dB Wavelength Tuning Range ~ 1554.94 - 1607.46 nm (192.8 THz, 186.5 THz) Frequency Tuning Range 186.5 - 192.8 THz Number Of Channels 64 Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	760 nm (Minimum) 790 nm (Typical) 810 nm (Maximum)	-	HI780	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 760 nm (Minimum) 790 nm (Typical) 810 nm (Maximum) Optical Fiber HI780 Emission Range Visible Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Forward Voltage 2.5 V (Maximum) Wavelength Bandwidth (FWHM) 20 nm (Minimum, CW) 25 nm (Typical, CW) 30 nm (Maximum, CW) Voltage 2.7 V (Maximum) Forward Current 400 mA 250 mA (Typical) 300 mA (Maximum) Reverse Voltage 1.8 V (LD) Saturation Output Power 8 dBm (Minimum) 9 dBm (Typical) 10 dBm (Maximum) Thermal Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Noise Level 7 dB (Minimum) 8 dB (Typical) 9 dB (Maximum) Polarization Dependent Gain 10 dB (Typical) Voltage Ripple 1 dB (Typical) 2 dB (Maximum) Storage Temperature -20 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.

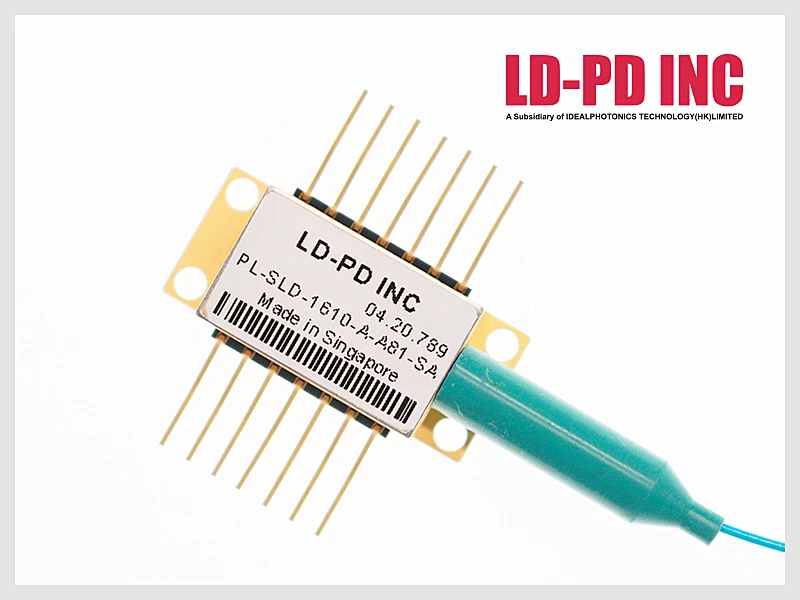

SWIR SLD	1600 nm (Minimum) 1610 nm (Typical) 1620 nm (Maximum)	5 mW 10 mW (Typical, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1600 nm (Minimum) 1610 nm (Typical) 1620 nm (Maximum) Output Optical Power 5 mW 10 mW (Typical, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 180 mA (Typical) 250 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 60 nm (Minimum) 70 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	1530 - 1580 nm	10 - 50 W	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 - 1580 nm Output Optical Power 10 - 50 W Emission Range Short-Wave IR Operation CW Key Features Narrow linewidth Frequency & Mode Operation Narrow Linewidth Single Transverse Mode Linewidth (FWHM) < 1 Hz Polarization Extinction Ratio > 17 dB Spatial Mode/Shape TEM00 Beam Quality (M²) < 1.2 Relative Intensity Noise < 0.03% (RMS 100 Hz - 10 MHz) Optical Power Stability Peak-Peak < 3%, RMS < 0.5% Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum)	20 mW (Typical, Coupled) 30 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum) Output Optical Power 20 mW (Typical, Coupled) 30 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 400 mA (Typical) 600 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

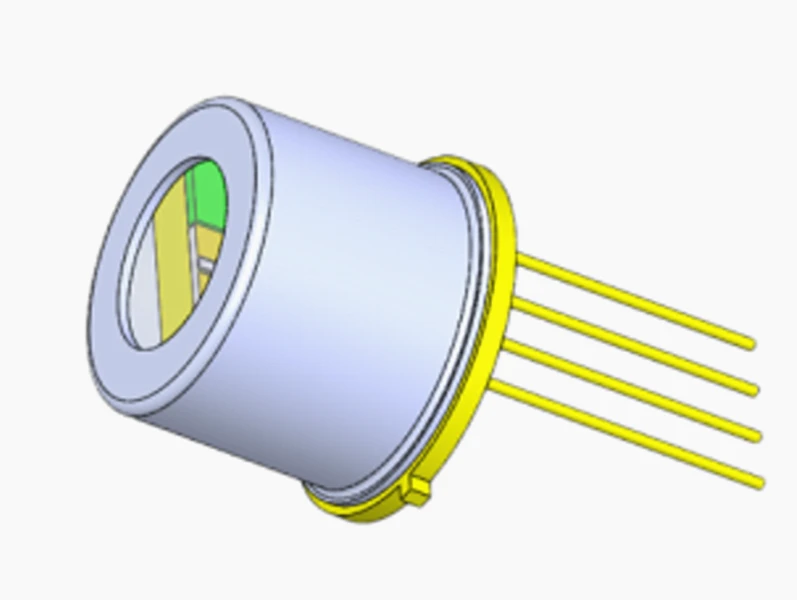

Free-Space Fabry-Perot Laser Diode	905 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 905 nm Emission Range Near IR Operating Current 12 A Operation Pulsed Source Material Fabry-Perot Diode Wavelength Bandwidth (FWHM) < 6 nm Peak Optical Power > 300 W Voltage 45 - 55 V 12 V Weight < 15 g Pulse Duration < 20 ns Operating Temperature -50 to 85 °C Beam Divergence < 30° 8 - 12° Pulse Duration (Range) nanosecond (ns) Storage Temperature -55 to 125 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	1551.72 nm (1550.92nm)	100 μW (-10 dBm) ~ 1 mW (0 dBm)	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1551.72 nm (1550.92nm) Output Optical Power 100 μW (-10 dBm) ~ 1 mW (0 dBm) Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Optical Isolation > 45 dB (Input) > 45 dB (Output) Fiber Length 1 m (±100 mm) Interfaces RS-232 Weight < 160 g Operating Temperature -20 to 65 °C Input Optical Power 100 nW - 316.2 μW (-40 to -5 dBm) Noise Level 4.5 dB Operating Voltage 5 V Power Consumption < 6 W Storage Temperature -40 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.

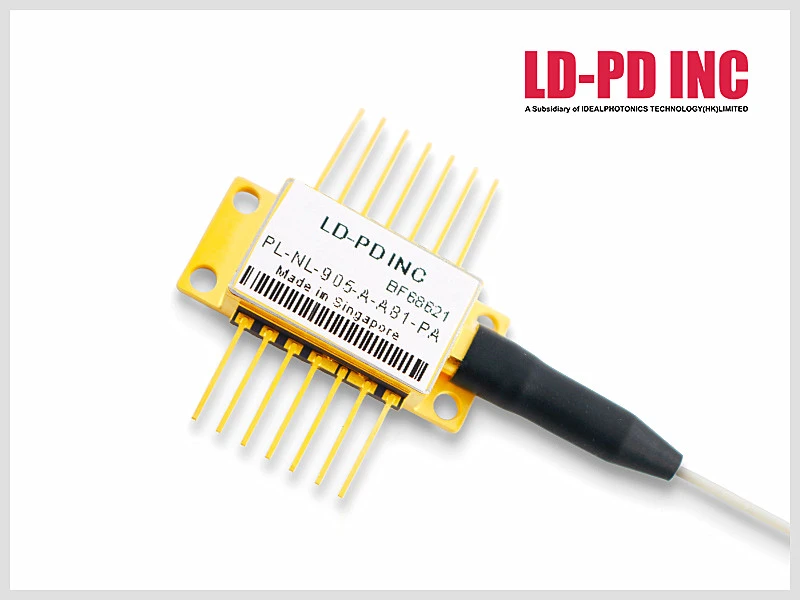

Fiber-Coupled Single-Frequency Laser Diode	904 nm (Minimum) 905 nm (Typical) 906 nm (Maximum)	10 mW (Typical, Peak) 20 mW (Maximum, Peak)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 904 nm (Minimum) 905 nm (Typical) 906 nm (Maximum) Output Optical Power 10 mW (Typical, Peak) 20 mW (Maximum, Peak) Optical Fiber PM Fiber Emission Range Near IR Operating Current 70 mA (Typical) 100 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Threshold Current 25 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (at 15 mW, Typical) 2.5 V (at 15 mW, Maximum) Key Features External Cavity Narrow linewidth Frequency & Mode Operation Narrow Linewidth Side Mode Suppression Ratio 40 dB (Minimum) 50 dB (Typical) Linewidth (FWHM) < 1 MHz 1 MHz (Typical) 10 MHz (Maximum) Polarization Extinction Ratio 20 dB (Minimum) Optical Isolation 30 dB (Minimum) TEC Current 1.4 A (Maximum) TEC Voltage 2.8 V (Maximum) Dimensions 1000 mm Peak Optical Power 10 mW (Typical) 20 mW (Maximum) Length 1000 mm (±100 mm) Wavelength/Temperature Coefficient 65 pm/K (Typical) 80 pm/K (Maximum) Relative Intensity Noise -135 dB/Hz (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

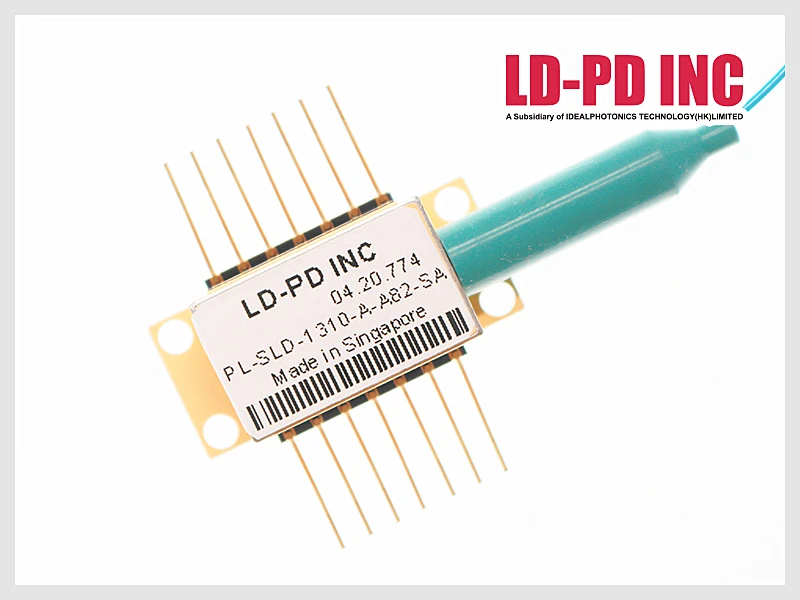

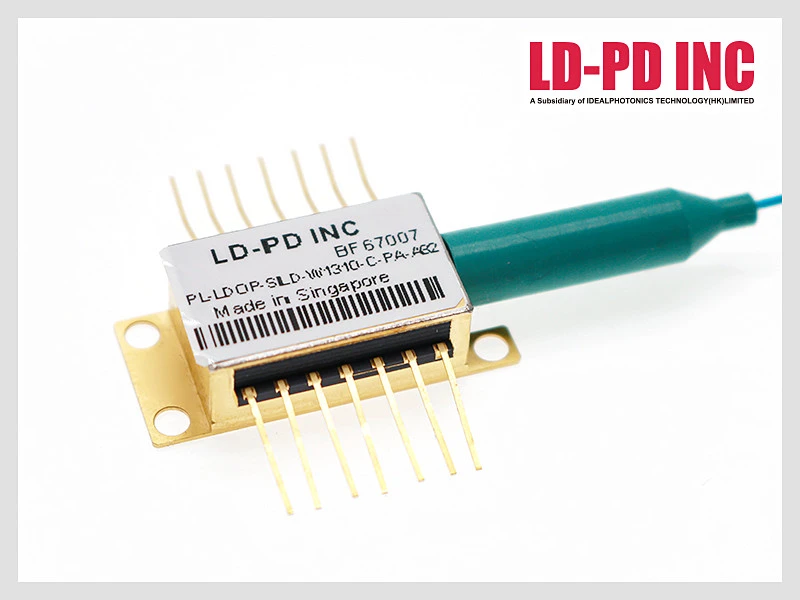

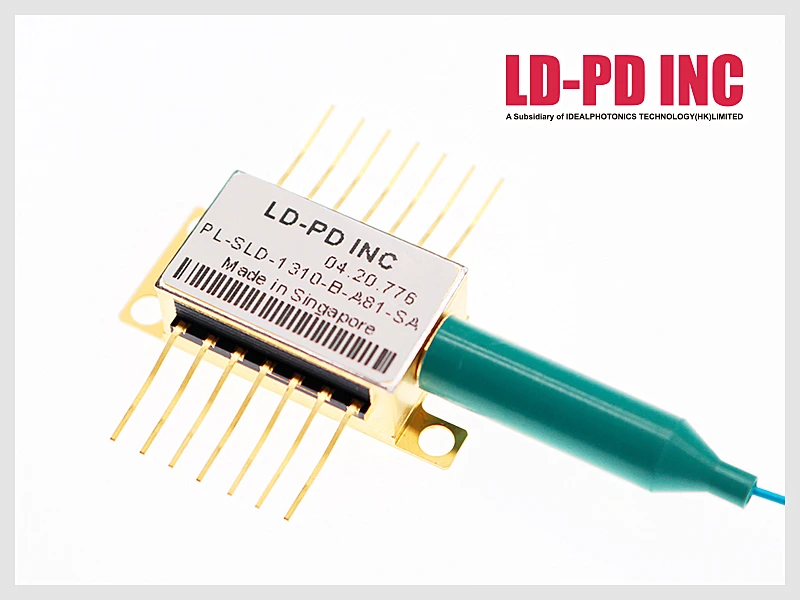

NIR SLD	1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum)	10 mW 4 mW (Minimum, Coupled) 8 mW (Typical, Coupled) 12 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum) Output Optical Power 10 mW 4 mW (Minimum, Coupled) 8 mW (Typical, Coupled) 12 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 250 mA (Typical) 300 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	1532 - 1565 nm (C-band single channel) 1547.79 nm	5.012 W (tested with 37 dBm, 1550 nm, 10 dBm input)	SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1532 - 1565 nm (C-band single channel) 1547.79 nm Output Optical Power 5.012 W (tested with 37 dBm, 1550 nm, 10 dBm input) Optical Fiber SMF-28E Emission Range Short-Wave IR Fiber Connector Type FC/APC (Input) FC/APC (Output) Operation CW Output Mode Fiber Coupled Source Material Ytterbium Dimensions 483 x 280 x 38 mm (Bench-Top) 139 x 235 x 70 mm (Module) Supply Voltage 100 - 240 V Interfaces RS-232 Noise Level 5 dB (input 0 dBm, 1550 nm, Typical, at 40 dB gain) Power Monitor +15 to +35 dBm (Output), -15 dBm to +5 dBm (Input) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
NIR SLD	1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum)	2 mW 1 mW (Minimum) 1.3 mW (Typical) 1.6 mW (Maximum)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum) Output Optical Power 2 mW 1 mW (Minimum) 1.3 mW (Typical) 1.6 mW (Maximum) Optical Fiber PM Fiber Emission Range Near IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Polarization Extinction Ratio 1 dB (Maximum) TEC Current 1 A (Maximum) Fiber Length 1.2 m (Minimum) Spectral Ripple 0.1 dB (Typical) 0.2 dB (Maximum) Storage Temperature -50 °C (Minimum) 85 °C (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	1538 - 1565 nm	100 mW (Minimum) 5 W (Maximum)	-	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1538 - 1565 nm Output Optical Power 100 mW (Minimum) 5 W (Maximum) Emission Range Short-Wave IR Fiber Connector Type FC Operation CW Output Mode Fiber Coupled Optical Isolation > 45 dB (Input) > 45 dB (Output) Interfaces RS-422 Operating Temperature -5 to 55 °C Input Optical Power 100 μW - 10 mW (-10 to 10 dBm) Noise Level 6.5 dB Operating Voltage 220 V (AC) Storage Temperature -40 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	1290 nm (Minimum) 1330 nm (Maximum)	-	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1290 nm (Minimum) 1330 nm (Maximum) Optical Fiber PM Fiber Emission Range Near IR Operating Current 150 mA (Typical) 200 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Thermistor Resistance 10 kΩ (Typical) Forward Voltage 1.6 V (Typical) 1.8 V (Maximum) Polarization Extinction Ratio 15 dB (Minimum) 20 dB (Typical) TEC Current 230 mA (Typical) 1.5 A (Maximum) TEC Voltage 500 mV (Typical) 4 V (Maximum) Dimensions 1.5 mm (typical) Length 1.5 mm (Typical) Saturation Output Power 7 dBm (at -3 dB, Minimum) 10 dBm (at -3 dB, Typical) Signal Gain 15 dB (at -20 dBm, Minimum, Small Signal Gain) 18 dB (at -20 dBm, Typical, Small Signal Gain) Noise Level 5 dB (Typical) 7 dB (Maximum) Polarization Dependent Gain 1 dB (Typical) 1.8 dB (Maximum) Refractive Index 3.2 (Typical) Voltage Ripple 0.1 dB (Typical) 0.5 dB (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

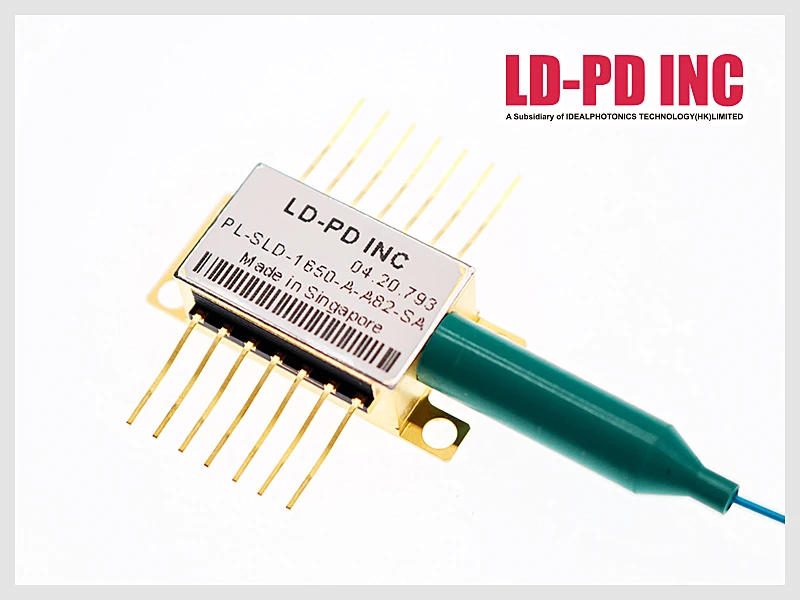

SWIR SLD	1630 nm (Minimum) 1650 nm (Typical) 1670 nm (Maximum)	10 mW (Minimum, Coupled) 15 mW (Typical, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1630 nm (Minimum) 1650 nm (Typical) 1670 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 15 mW (Typical, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 200 mA (Typical) 400 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 50 mA (Typical) 100 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.2 V (Typical) 1.8 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 60 nm (Typical) 70 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Amplifier	-	-	-	Contact Supplier	Add to cart to request quote
Product Code Fiber Connector Type FC/APC Operation Pulsed Output Mode Fiber Coupled Optical Isolation > 45 dB (Output) Peak Optical Power 10 - 500 W Fiber Length 1 m (±100 mm) Interfaces RS-232 Pulse Duration 1 - 100 ns Operating Temperature -20 to 65 °C Input Optical Power 100 μW - 50 mW (Peak) Optical Return Loss > 45 dB Pulse Duration (Range) nanosecond (ns) Operating Voltage 5 V Polarization Dependent Gain < 0.5 dB Storage Temperature -40 to 85 °C Supplier Location Singapore See product details More from LD-PD PTE. LTD.

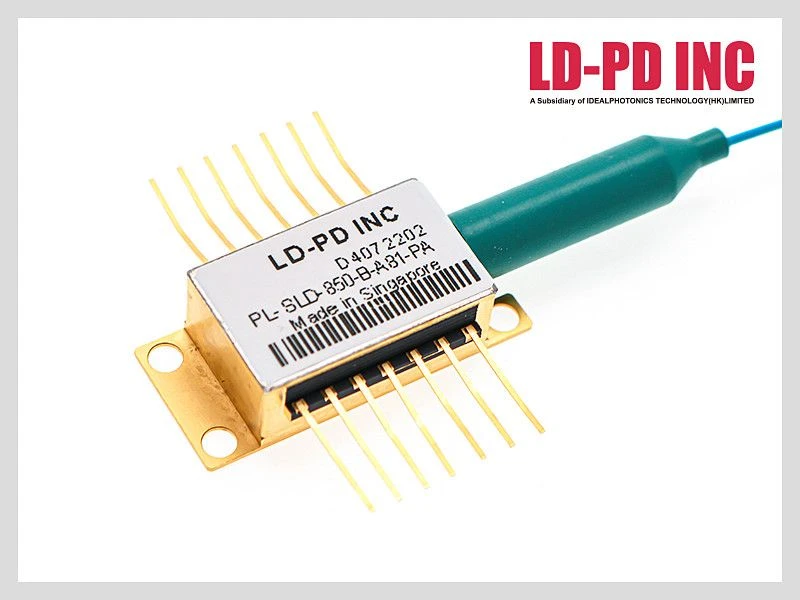

NIR SLD	840 nm (Minimum) 850 nm (Typical) 860 nm (Maximum)	20 mW (Minimum, Coupled) 35 mW (Typical, Coupled) 40 mW (Maximum, Coupled)	HI780, PM980	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 840 nm (Minimum) 850 nm (Typical) 860 nm (Maximum) Output Optical Power 20 mW (Minimum, Coupled) 35 mW (Typical, Coupled) 40 mW (Maximum, Coupled) Optical Fiber HI780, PM980 Emission Range Near IR Operating Current 400 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 50 nm (Minimum) 55 nm (Typical) 60 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	1570 nm (Minimum) 1590 nm (Typical) 1610 nm (Maximum)	-	SMF-28E+	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1570 nm (Minimum) 1590 nm (Typical) 1610 nm (Maximum) Optical Fiber SMF-28E+ Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Forward Voltage 2.5 V (Maximum) Wavelength Bandwidth (FWHM) 30 nm (Minimum, CW) 35 nm (Typical, CW) 40 nm (Maximum, CW) Voltage 2.7 V (Maximum) Forward Current 300 mA (Typical) 350 mA (Maximum) Saturation Output Power 8 dBm (Minimum) 9 dBm (Typical) 10 dBm (Maximum) Thermal Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Noise Level 7 dB (Minimum) 8 dB (Typical) 9 dB (Maximum) Polarization Dependent Gain 10 dB (Typical) Voltage Ripple 1 dB (Typical) 2 dB (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber Laser	1529.16 - 1567.13 nm	500 μW	PM1550, SMF-28	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1529.16 - 1567.13 nm Output Optical Power 500 μW Optical Fiber PM1550, SMF-28 Emission Range Short-Wave IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Key Features Tunable Frequency & Mode Operation Tunable Side Mode Suppression Ratio > 50 dB Wavelength Tuning Range ~ 1529.16 - 1567.13 nm (191.3 THz, 196.05 THz) Frequency Tuning Range 191.3 - 196.05 THz Number Of Channels 96 Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Gain Chip	1528 nm (Minimum) 1562 nm (Maximum)	-	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1528 nm (Minimum) 1562 nm (Maximum) Optical Fiber PM Fiber Emission Range Short-Wave IR Operating Current 1 A (Typical) 1.5 A (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Thermistor Resistance 10 kΩ (Typical) Forward Voltage 1.6 V (Typical) 1.8 V (Maximum) TEC Current 230 mA (Typical) 1.5 A (Maximum) TEC Voltage 500 mV (Typical) 4 V (Maximum) Dimensions 1.5 mm (typical) Length 1.5 mm (Typical) Saturation Output Power 23 dBm (at -3 dB, Minimum) 26 dBm (at -3 dB, Typical) Signal Gain 30 dB (at -20 dBm, Minimum, Small Signal Gain) 35 dB (at -20 dBm, Typical, Small Signal Gain) Noise Level 6 dB (Typical) 9.5 dB (Maximum) Polarization Dependent Gain 5.2 dB (Typical) 6.3 dB (Maximum) Refractive Index 3.2 (Typical) Voltage Ripple 0.1 dB (Typical) 0.5 dB (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
NIR SLD	1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum)	10 mW (Minimum, Coupled) 15 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 15 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 450 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 50 nm (Minimum) 55 nm (Typical) 60 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

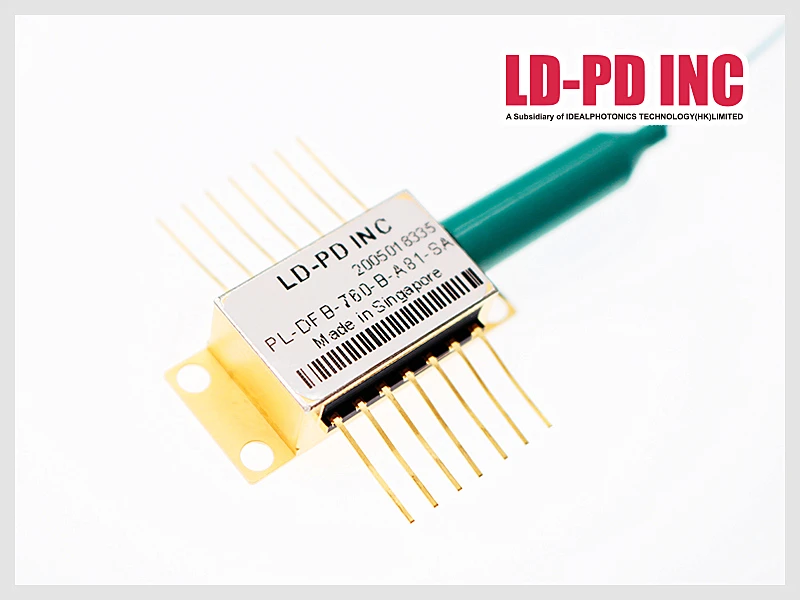

Fiber-Coupled Distributed-Feedback (DFB) Laser Diode	759 nm (Minimum) 760 nm (Typical) 761 nm (Maximum)	5 mW 4 mW (Minimum) 8 mW (Typical) 12 mW (Maximum)	HI780	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 759 nm (Minimum) 760 nm (Typical) 761 nm (Maximum) Output Optical Power 5 mW 4 mW (Minimum) 8 mW (Typical) 12 mW (Maximum) Optical Fiber HI780 Emission Range Visible Operating Current 40 mA (Typical) 60 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material DFB Diode Threshold Current 5 mA (Typical) 10 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (Typical) 2 V (Maximum) Key Features Distributed Feedback (DFB) Narrow linewidth Frequency & Mode Operation Narrow Linewidth Tunable Side Mode Suppression Ratio 30 dB (Minimum) 40 dB (Typical) Linewidth (FWHM) < 2 MHz Applications O₂ Detection Wavelength/Current Coefficient 0.015 nm/mA (Typical) Wavelength/Temperature Coefficient 0.12 nm/K (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

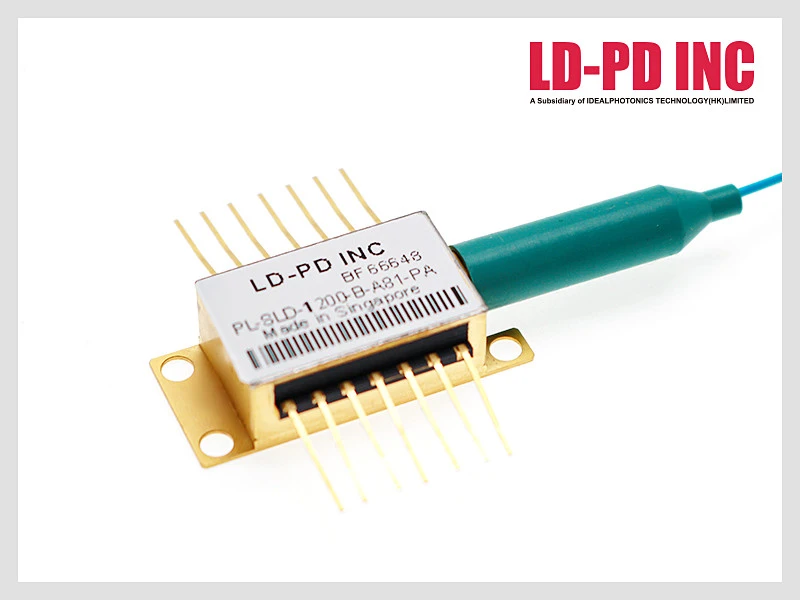

NIR SLD	1150 nm (Minimum) 1200 nm (Typical) 1250 nm (Maximum)	10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1150 nm (Minimum) 1200 nm (Typical) 1250 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 800 mA (Typical) 1 A (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

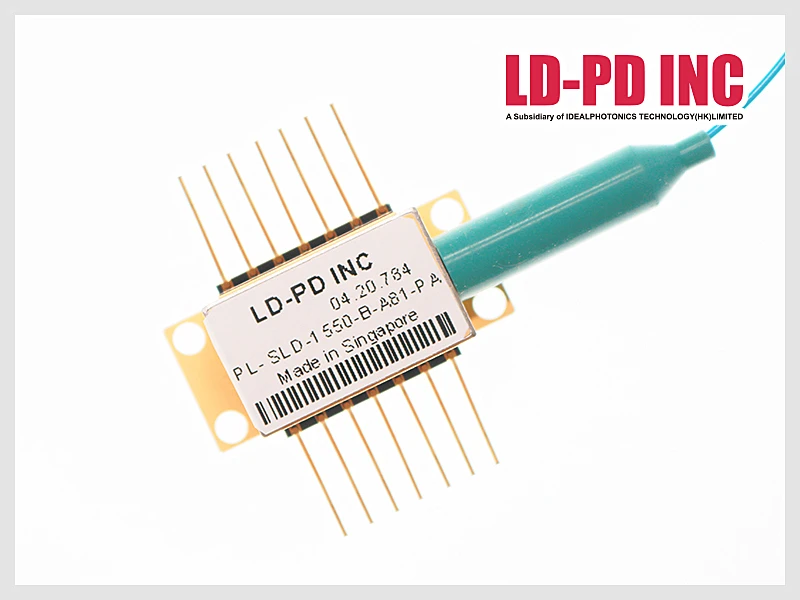

SWIR SLD	1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum)	10 mW (Typical, Coupled) 15 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum) Output Optical Power 10 mW (Typical, Coupled) 15 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 400 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 100 mA (Typical) 150 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.2 V (Typical) 1.8 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 50 nm (Typical) 60 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
Fiber-Coupled Diode Laser	850 nm (±10 nm)	1 mW 1.2 mW (Test Output) > 300 μW (Guaranteed)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 850 nm (±10 nm) Output Optical Power 1 mW 1.2 mW (Test Output) > 300 μW (Guaranteed) Optical Fiber PM Fiber Emission Range Near IR Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Threshold Current 1.2 mA Polarization Extinction Ratio > 16 dB Voltage 2.1 V Package Coax, TO-46 Fiber Length > 800 mm Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1590 nm (Minimum) 1600 nm (Typical) 1610 nm (Maximum)	10 mW (Typical, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1590 nm (Minimum) 1600 nm (Typical) 1610 nm (Maximum) Output Optical Power 10 mW (Typical, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 400 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 40 nm (Minimum) 50 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum)	15 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum) Output Optical Power 15 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 200 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 55 nm (Minimum) 60 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

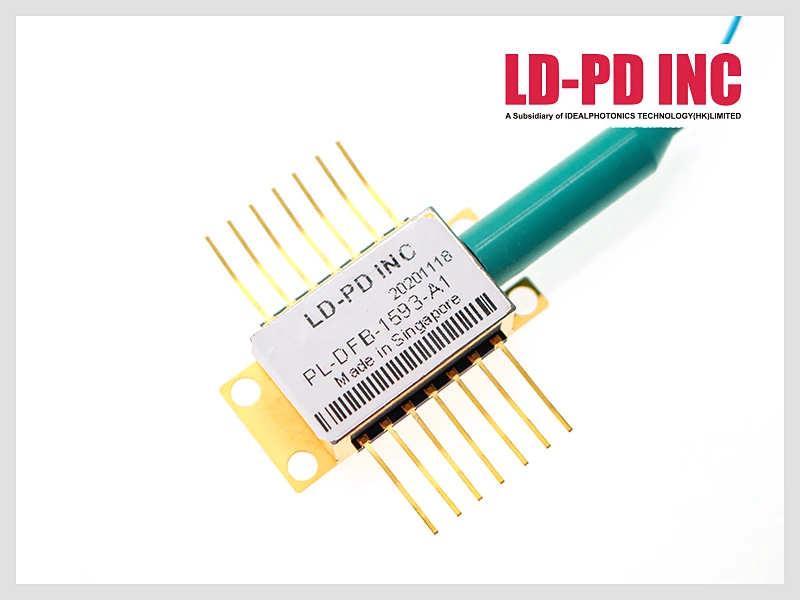

Fiber-Coupled Distributed-Feedback (DFB) Laser Diode	1592.5 nm (Minimum) 1593 nm (Typical) 1593.5 nm (Maximum)	10 mW (Minimum) 15 mW (Typical) 30 mW (Maximum)	SM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1592.5 nm (Minimum) 1593 nm (Typical) 1593.5 nm (Maximum) Output Optical Power 10 mW (Minimum) 15 mW (Typical) 30 mW (Maximum) Optical Fiber SM Fiber Emission Range Short-Wave IR Operating Current 80 mA (Typical) 120 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material DFB Diode Threshold Current 20 mA (Typical) 30 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (Typical) 2 V (Maximum) Key Features Distributed Feedback (DFB) Narrow linewidth Frequency & Mode Operation Narrow Linewidth Tunable Side Mode Suppression Ratio 30 dB (Minimum) 40 dB (Typical) Linewidth (FWHM) < 2 MHz Wavelength/Current Coefficient 0.015 nm/mA (Typical) Wavelength/Temperature Coefficient 0.12 nm/K (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

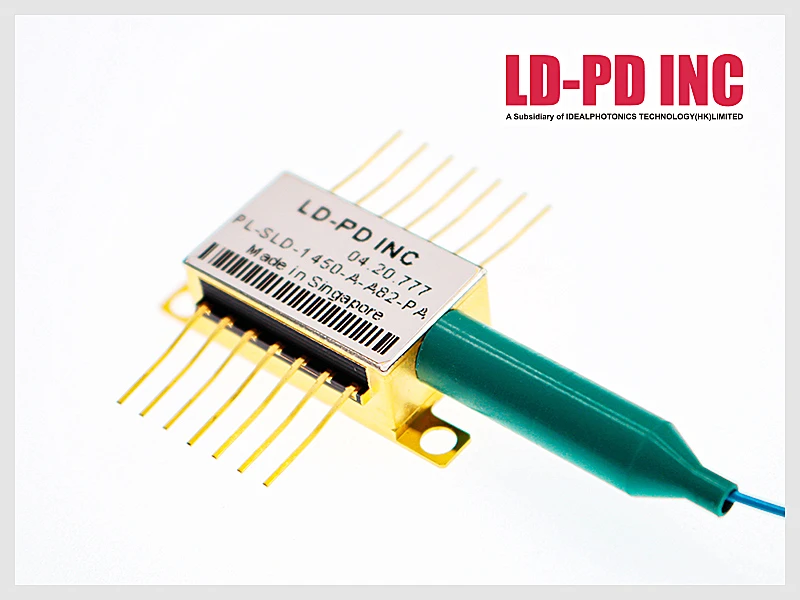

SWIR SLD	1440 nm (Minimum) 1450 nm (Typical) 1460 nm (Maximum)	10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1440 nm (Minimum) 1450 nm (Typical) 1460 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 350 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

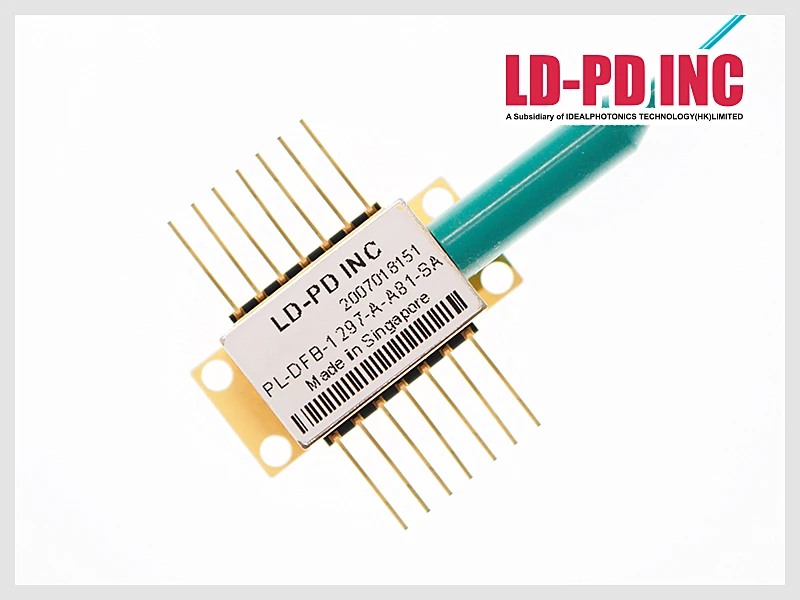

Fiber-Coupled Distributed-Feedback (DFB) Laser Diode	1296.5 nm (Minimum) 1297 nm (Typical) 1297.5 nm (Maximum)	10 mW (Minimum) 15 mW (Typical) 30 mW (Maximum)	SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1296.5 nm (Minimum) 1297 nm (Typical) 1297.5 nm (Maximum) Output Optical Power 10 mW (Minimum) 15 mW (Typical) 30 mW (Maximum) Optical Fiber SMF-28E Emission Range Near IR Operating Current 80 mA (Typical) 120 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material DFB Diode Threshold Current 20 mA (Typical) 30 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (Typical) 2 V (Maximum) Key Features Distributed Feedback (DFB) Narrow linewidth Frequency & Mode Operation Narrow Linewidth Tunable Side Mode Suppression Ratio 30 dB (Minimum) 40 dB (Typical) Linewidth (FWHM) < 2 MHz Applications HF Detection Wavelength/Current Coefficient 0.015 nm/mA (Typical) Wavelength/Temperature Coefficient 0.12 nm/K (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

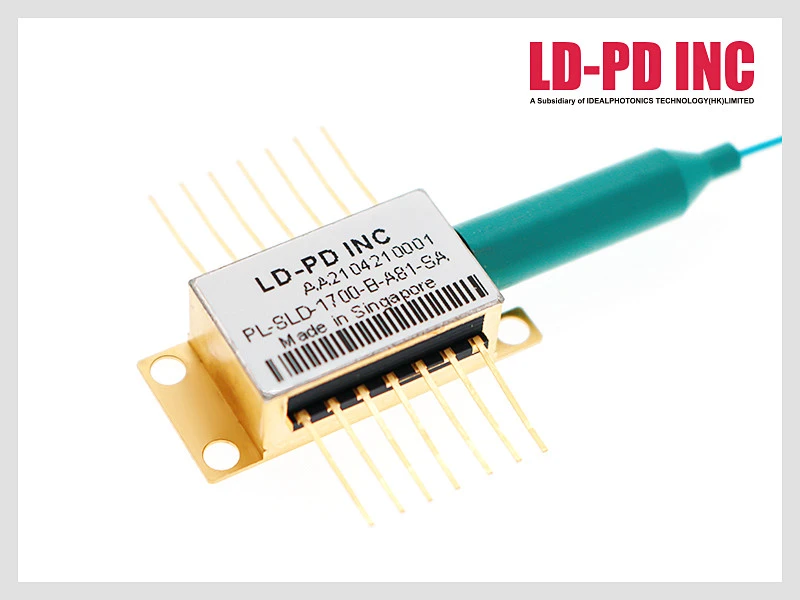

SWIR SLD	1660 nm (Minimum) 1700 nm (Typical) 1740 nm (Maximum)	10 mW (Typical, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1660 nm (Minimum) 1700 nm (Typical) 1740 nm (Maximum) Output Optical Power 10 mW (Typical, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 200 mA (Typical) 350 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Typical) 40 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 60 nm (Minimum) 70 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum)	2 mW (Minimum, Coupled) 4 mW (Typical, Coupled) 5 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum) Output Optical Power 2 mW (Minimum, Coupled) 4 mW (Typical, Coupled) 5 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 180 mA (Typical) 200 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Minimum) 40 mA (Typical) 50 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 25 nm (Minimum) 30 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum)	10 mW (Typical, Coupled) 12 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1510 nm (Minimum) 1530 nm (Typical) 1550 nm (Maximum) Output Optical Power 10 mW (Typical, Coupled) 12 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 250 mA (Typical) 350 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
NIR Broadband Light Source	1528 - 1603 nm (at 3 dB)	200 mW 10 mW, 20 mW, 50 mW, 500 μW	PM1550, SMF-28	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1528 - 1603 nm (at 3 dB) Output Optical Power 200 mW 10 mW, 20 mW, 50 mW, 500 μW Optical Fiber PM1550, SMF-28 Emission Range Short-Wave IR Fiber Connector Type FC/APC Output Mode Fiber Coupled Source Material SLD Key Features Broadband Frequency & Mode Operation Broadband Polarization Extinction Ratio < 0.2 dB Optical Isolation > 35 dB (Output) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

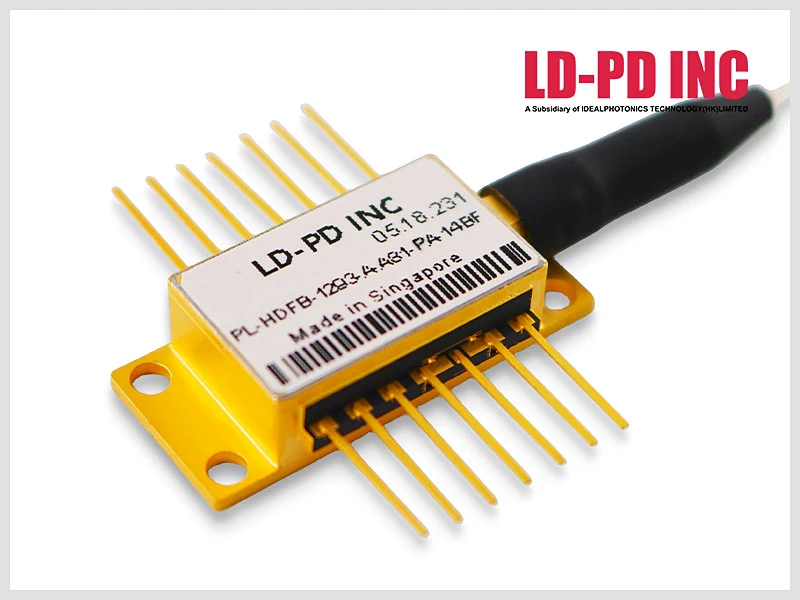

Fiber-Coupled Distributed-Feedback (DFB) Laser Diode	1292.5 nm (Minimum) 1293 nm (Typical) 1293.5 nm (Maximum)	60 mW (Typical) 80 mW (Maximum)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1292.5 nm (Minimum) 1293 nm (Typical) 1293.5 nm (Maximum) Output Optical Power 60 mW (Typical) 80 mW (Maximum) Optical Fiber PM Fiber Emission Range Near IR Operating Current 250 mA (Typical) 350 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material DFB Diode Threshold Current 20 mA (Typical) 30 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (Typical) 2 V (Maximum) Key Features Distributed Feedback (DFB) Narrow linewidth Frequency & Mode Operation Narrow Linewidth Tunable Side Mode Suppression Ratio 30 dB (Minimum) 40 dB (Typical) Linewidth (FWHM) < 2 MHz Wavelength/Current Coefficient 0.015 nm/mA (Typical) Wavelength/Temperature Coefficient 0.12 nm/K (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

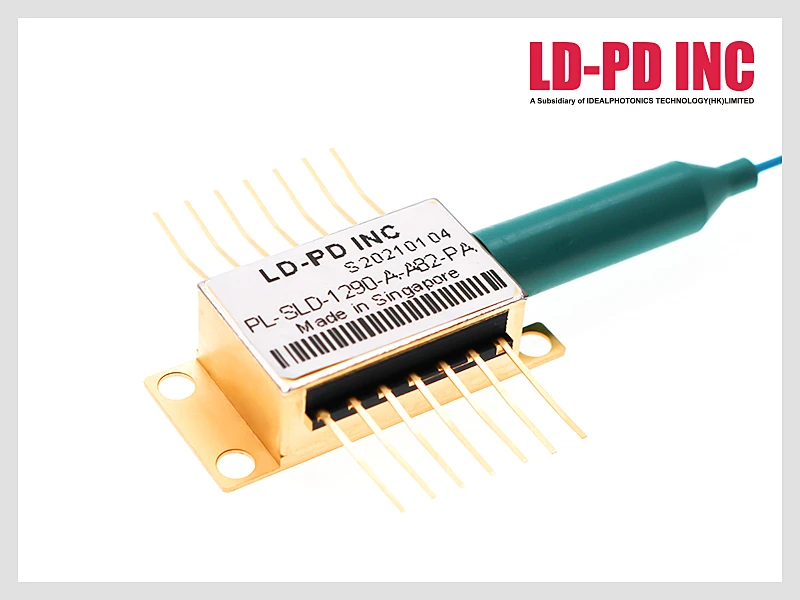

NIR SLD	1280 nm (Minimum) 1290 nm (Typical) 1300 nm (Maximum)	10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1280 nm (Minimum) 1290 nm (Typical) 1300 nm (Maximum) Output Optical Power 10 mW (Minimum, Coupled) 20 mW (Typical, Coupled) 25 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 350 mA (Typical) 500 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
NIR SLD	1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum)	10 mW 4 mW (Minimum, Coupled) 8 mW (Typical, Coupled) 12 mW (Maximum, Coupled)	PM1310, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1290 nm (Minimum) 1310 nm (Typical) 1330 nm (Maximum) Output Optical Power 10 mW 4 mW (Minimum, Coupled) 8 mW (Typical, Coupled) 12 mW (Maximum, Coupled) Optical Fiber PM1310, SMF-28E Emission Range Near IR Operating Current 250 mA (Typical) 300 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 90 mA (Typical) 110 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 30 nm (Minimum) 40 nm (Typical) 80 nm (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.

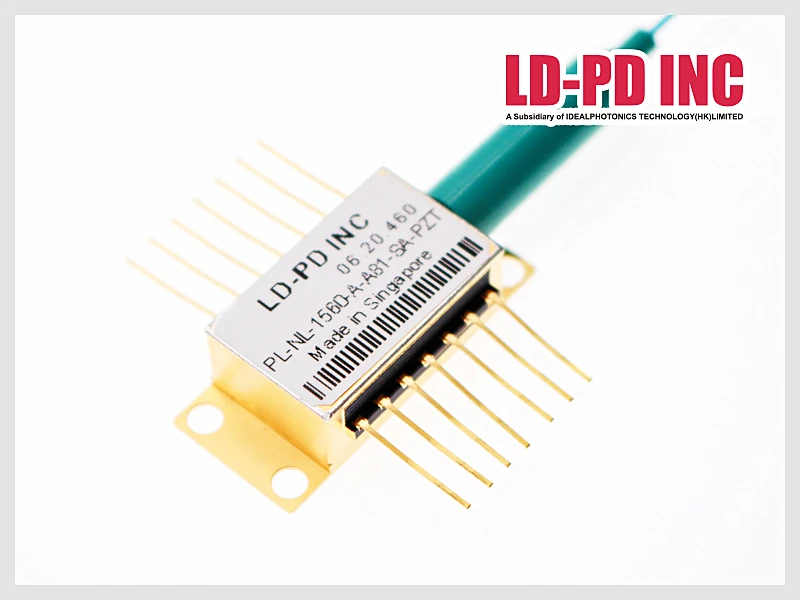

Fiber-Coupled Fiber-Bragg-Grating (FBG) Laser Diode	1559.48 nm (Minimum) 1560.48 nm (Typical) 1561.48 nm (Maximum)	10 mW (Minimum, Peak) 20 mW (Maximum, Peak)	PM Fiber	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1559.48 nm (Minimum) 1560.48 nm (Typical) 1561.48 nm (Maximum) Output Optical Power 10 mW (Minimum, Peak) 20 mW (Maximum, Peak) Optical Fiber PM Fiber Emission Range Short-Wave IR Operating Current 200 mA (Typical) 300 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material Diode Threshold Current 45 mA (Typical) 65 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.3 V (Typical) 1.8 V (Maximum) Key Features External Cavity Narrow linewidth Stabilized Tunable Frequency & Mode Operation Narrow Linewidth Tunable Side Mode Suppression Ratio 40 dB (Minimum) 45 dB (Typical) Linewidth (FWHM) 1 MHz (Typical) 10 MHz (Maximum) Polarization Extinction Ratio 20 dB (Minimum) Optical Isolation 30 dB (Minimum) TEC Current 1.8 A (Maximum) TEC Voltage 3.5 V (Maximum) Dimensions 1000 mm Peak Optical Power 10 mW (Minimum) 20 mW (Maximum) Voltage 0V (Minimum) 150 V (Maximum) 2.7 V (Maximum) Length 1000 mm (±100 mm) Wavelength Tuning Range 1 nm (Minimum) 1.5 nm (Maximum) Differential Slope Efficiency 0.064 W/A (Minimum) 0.1 W/A (Typical) Wavelength/Temperature Coefficient 60 pm/K (Typical) 80 pm/K (Maximum) Relative Intensity Noise -145 dB/Hz (Maximum) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
SWIR SLD	1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum)	2 mW (Minimum, Coupled) 4 mW (Typical, Coupled) 5 mW (Maximum, Coupled)	PM1550, SMF-28E	Contact Supplier	Add to cart to request quote
Product Code Emission Wavelength 1530 nm (Minimum) 1550 nm (Typical) 1570 nm (Maximum) Output Optical Power 2 mW (Minimum, Coupled) 4 mW (Typical, Coupled) 5 mW (Maximum, Coupled) Optical Fiber PM1550, SMF-28E Emission Range Short-Wave IR Operating Current 180 mA (Typical) 200 mA (Maximum) Fiber Connector Type FC/APC Operation CW Output Mode Fiber Coupled Source Material SLD Threshold Current 30 mA (Minimum) 40 mA (Typical) 50 mA (Maximum) Thermistor Resistance 9.5 kΩ (Minimum) 10 kΩ (Typical) 10.5 kΩ (Maximum) Forward Voltage 1.8 V (Typical) 2.5 V (Maximum) Polarization Extinction Ratio 17 dB (Minimum) 20 dB (Typical) Wavelength Bandwidth (FWHM) 25 nm (Minimum) 30 nm (Typical) Supplier Location Singapore See product details More from LD-PD PTE. LTD.
