Fiber Optics

Fiber optics features minimal light loss and total internal reflection (TIR), which allows them to potentially be very long (hundreds of kilometers) and flexible.

Product	Wavelength Range	Fiber Connector Type	Fiber Type	Availability	Price (USD)
Optical Time Domain Reflectometer	-	SC/UPC	-	Contact Supplier	Add to cart to request quote
Product Code Fiber Connector Type SC/UPC Key Features One-Button Automatic Test Dimensions 160 x 80 x 18 mm Applications Access Network Testing CATV Network Testing FTTX Test with PON Networks LAN Network Testing Lab and Factory Testing Live Fiber Troubleshooting Metro Network Testing Interfaces USB Reflectance Accuracy ±4 dB Operating Temperature -10 to 50 °C Attenuation Accuracy ±0.05 dB/dB Dynamic Range 32 dB Storage Temperature -20 to 70 °C Supplier Location Czech Republic See product details More from OPTOKON
PM-Fiber Isolator	1054 - 1074 nm	FC/APC	PM980	In stock	$ 2485.15
Product Code Wavelength Range 1054 - 1074 nm Fiber Connector Type FC/APC Fiber Type PM980 Return Loss > 50 dB Maximum Optical Power 3 W (CW, Without Connectors) Insertion Loss 1 dB (Typical) 1 dB (Maximum) Isolation 33 dB (Minimum) 40 dB (Typical) Polarization Extinction Ratio > 20 dB Center Wavelength 1064 nm Supplier Location New Jersey, USA See product details More from Thorlabs
Fiber Retroreflector	400 - 2400 nm	FC/PC	G105LCA	In stock	$ 132.31
Product Code Wavelength Range 400 - 2400 nm Fiber Connector Type FC/PC Fiber Type G105LCA Numerical Aperture 0.22 (±0.02) Core Diameter 105 μm (+1/-3 μm) Cladding Diameter 125 μm (+1/-2 μm) Coating Diameter 250 μm (±10 μm) Supplier Location New Jersey, USA See product details More from Thorlabs
Electronic Variable Fiber Optic Attenuator	488 - 600 nm	FC/APC	460HP	Contact Supplier	$ 595.06
Product Code Wavelength Range 488 - 600 nm Fiber Connector Type FC/APC Fiber Type 460HP Return Loss > 30 dB Maximum Optical Power 100 mW Key Features Electronic Optical Attenuator Fixed Attenuation Variable Attenuation Dimensions Ø 15.7 x 50.1 x 500 mm (±100 mm, 0.62 x 1.97", Length Excluding Fiber Leads, Length of the Fiber Leads) Applications Lasers Attenuation 2.5 dB (Minimum) > 30 dB (Maximum) Operating Temperature 0 - 40 °C Relative Humidity 5 - 85% Frequency Bandwidth 0 - 1 kHz Input Voltage 0 - 5 V 10 V (5 mA) Input Impedance High-Z Supply Voltage 0 - 5 V 10 V (5 mA, Maximum) Modulation Bandwidth 0 - 1 kHz Storage Temperature -20 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Fiber Optic Circulator	1310 nm	FC/APC	PM Fiber	In stock	$ 520.00
Product Code Wavelength Range 1310 nm Fiber Connector Type FC/APC Fiber Type PM Fiber Return Loss 55 dB Maximum Optical Power 250 mW Insertion Loss 1 dB (Reverse) 0.7 dB (Forward) Core Diameter 7 μm Cladding Diameter 125 μm Weight 250 g Center Wavelength 1310 nm Fiber Jacket Outer Diameter 0.9 mm Supplier Location California, USA See product details More from OptoSigma
High Power Patch Cable	-	D80 compatible	-	Contact Supplier	Add to cart to request quote
Product Code Fiber Connector Type D80 compatible Key Features High Power Numerical Aperture 0.22 Fiber Cable Length 3 m Dimensions 3000 mm (Length) Core Diameter 800 μm Applications Industrial, Medical Protection Tube Stainless Steel PVC Color Black Supplier Location Italy See product details More from Bosco Ottica
Liquid Light Guide	420 - 2000 nm	-	-	In stock	$ 500.45
Product Code Wavelength Range 420 - 2000 nm Numerical Aperture 0.52 Fiber Cable Length 1.2 m Core Diameter 5 mm Minimum Bend Radius 60 mm Operating Temperature 5 - 35 °C (41 - 95 °F) Supplier Location New Jersey, USA See product details More from Thorlabs
PM-Fiber Isolator	1530 - 1570 nm	FC/APC	PM Fiber	In stock	$ 532.20
Product Code Wavelength Range 1530 - 1570 nm Fiber Connector Type FC/APC Fiber Type PM Fiber Return Loss > 55 dB Maximum Optical Power < 300 mW (CW, Without Connectors) Insertion Loss 0.55 dB (Maximum, Without Connectors) Isolation 28 dB (Minimum) Polarization Extinction Ratio > 20 dB Center Wavelength 1550 nm Isolator Design Single Stage Supplier Location New Jersey, USA See product details More from Thorlabs
Fiber Optic Chuck	-	-	-	Contact Supplier	$ 94.00
Product Code Options Strain Relief Fiber Diameter 80 - 200 μm Supplier Location Oregon, USA See product details More from Siskiyou
1x4 SM/PM Fiber Switch	400 - 650 nm	FC/APC (5x)	PM Fiber, S405 XP (or similar)	Contact Supplier	$ 5417.91
Product Code Wavelength Range 400 - 650 nm Fiber Connector Type FC/APC (5x) Fiber Type PM Fiber, S405 XP (or similar) Return Loss > 55 dB Maximum Optical Power 5 mW (< 480 nm) 100 mW (> 480 nm) Key Features Allows Different Interfaces Flexible Housing Design Plug And Socket Connection Single Mode Switch Dimensions 124 x 56 x 13 mm Insertion Loss 3.4 dB (Maximum) 3 dB (Typical) Polarization Extinction Ratio > 18 dB, 20 dB (Typical) Interfaces I²C RS-232 TTL USB Channel Configuration 1x4 Operating Temperature 0 - 60 °C Crosstalk > 55 dB Operating Relative Humidity 35 - 55% Switching Time < 5 ms Pigtail Length 1 m Repeatability < 0.01 dB Fiber Jacket Outer Diameter 0.9 mm Lifecycles 1000000000 Switching Frequency 10 mHz - 50 Hz Power Consumption < 600 mW Storage Temperature -40 to 80 °C Supplier Location Germany; Virginia, USA; China See product details More from WEINERT Fiber Optics
Fiber Optic Circulator	1280 - 1340 nm	FC/APC	SM13-PS-U25D	In stock	$ 673.56
Product Code Wavelength Range 1280 - 1340 nm Fiber Connector Type FC/APC Fiber Type SM13-PS-U25D Return Loss > 50 dB (Port 1 to 3) Key Features Polarization Maintaining Fiber Cable Length 1 m (+75/-0 mm) Dimensions 5.5 x 35 mm (Package) 1000 mm (+75/-0 mm, Length) Insertion Loss < 0.9 dB Isolation > 40 dB Polarization Extinction Ratio > 22 dB Operating Temperature -5 to 70 °C Operating Relative Humidity 20 - 80% Damage Threshold CW 300 mW Storage Relative Humidity 20 - 80% Storage Temperature -40 to 85 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Fiber Optic Polarizer	1260 - 1360 nm	FC/PC	SM13-PS-U25D	In stock	$ 382.51
Product Code Wavelength Range 1260 - 1360 nm Fiber Connector Type FC/PC Fiber Type SM13-PS-U25D Return Loss > 45 dB Maximum Optical Power 300 mW Fiber Cable Length 800 mm (+75/-0 mm) Insertion Loss 0.6 dB (Typical) < 0.8 dB (Maximum) Wavelength Bandwidth (FWHM) ±50 nm Operating Temperature -5 to 70 °C Pigtail Length 800 mm (+75/-0 mm, On Each Side) Center Wavelength 1310 nm Fiber Jacket Outer Diameter 0.9 mm Extinction Ratio > 26 dB (Minimum) 28 dB (Typical) Storage Temperature -40 to 80 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Fixed Fiber Optic Attenuator	1550 nm, 1300 nm	FC/UPC	-	In stock	$ 17.16
Product Code Wavelength Range 1550 nm, 1300 nm Fiber Connector Type FC/UPC Return Loss 50 dB Maximum Optical Power 500 mW Key Features Fixed Attenuation Core Diameter 9 μm Cladding Diameter 125 μm Weight 100 g Attenuation 15 dB (±1 dB) Center Wavelength 1300 - 1550 nm Attenuator Configuration Plug Supplier Location California, USA See product details More from OptoSigma
Tunable Optical Filter Cassette	1527.61 - 1568.35 nm	FC/APC	SMF-28	Contact Supplier	Add to cart to request quote
Product Code Manufacturer VIAVI Wavelength Range 1527.61 - 1568.35 nm Fiber Connector Type FC/APC Fiber Type SMF-28 Return Loss > 30 dB Maximum Optical Power 251.2 mW (24 dBm, Average) Key Features Variable Attenuation Attenuation < 6 dB Measurement Range +11 dBm to -49 dBm Supplier Location Massachusetts, USA See product details More from Fiber Optic Center
Fiber Optic Image Conduit	350 - 1500 nm	-	-	In stock	$ 252.00
Product Code Wavelength Range 350 - 1500 nm Key Features Standard Resolution Numerical Aperture 0.53 Fiber Cable Length ±762 μm Dimensions 76.2 mm Minimum Bend Radius 25.6 mm Number of Fibers 3012 Core Refractive Index 1.58 Transmission 35 - 45% Cladding Refractive Index 1.49 Operating Temperature 454 °C Transformation Temperature 704 °C Outer Diameter 6.4 mm Fiber Diameter 100 μm Resolution 5 lp/mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Variable Backreflector Cassette	750 - 1350 nm	FC/PC	OM3, OM4	Contact Supplier	Add to cart to request quote
Product Code Manufacturer VIAVI Wavelength Range 750 - 1350 nm Fiber Connector Type FC/PC Fiber Type OM3, OM4 Return Loss -35 to -5 dB (Variable) Maximum Optical Power 199.5 mW (23 dBm, Average) Key Features Variable Attenuation Supplier Location Massachusetts, USA See product details More from Fiber Optic Center
Mode Field Adapter	1060 nm	No Connectors Scissor Cut	LM Fiber (Input Fiber) LM Fiber (Output Fiber)	In stock	$ 576.49
Product Code Wavelength Range 1060 nm Fiber Connector Type No Connectors Scissor Cut Fiber Type LM Fiber (Input Fiber) LM Fiber (Output Fiber) Maximum Optical Power 100 W (Spliced) Numerical Aperture 0.08, 0.46 (Input Fiber) 0.11, 0.46 (Output Fiber) Fiber Cable Length 800 mm (+75/-0 mm, Fiber Lead) Dimensions 70 x 15 x 7 mm (2.76 x 0.59 x 0.28", Package) Insertion Loss < 0.5 dB Port Configuration 1x1 Core Diameter 10 μm (Input Fiber) 25 μm (Output Fiber) Cladding Diameter 125 μm (Input Fiber) 250 μm (Output Fiber) Number of Channels 1 Tensile Strength 10 N (Pigtail) Operating Temperature -40 to 85 °C Storage Temperature -40 to 85 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Polarization Maintaining Fiber Optic Couplers	1310 nm	FC/APC	PM Fiber, SM Fiber	In stock	$ 507.00
Product Code Wavelength Range 1310 nm Fiber Connector Type FC/APC Fiber Type PM Fiber, SM Fiber Return Loss 60 dB Key Features Polarizing Splitter Fiber Cable Length 1 m Port Configuration 1x2 Core Diameter 9 μm Cladding Diameter 125 μm Weight 100 g Center Wavelength 1310 nm Fiber Jacket Outer Diameter 0.9 mm Supplier Location California, USA See product details More from OptoSigma

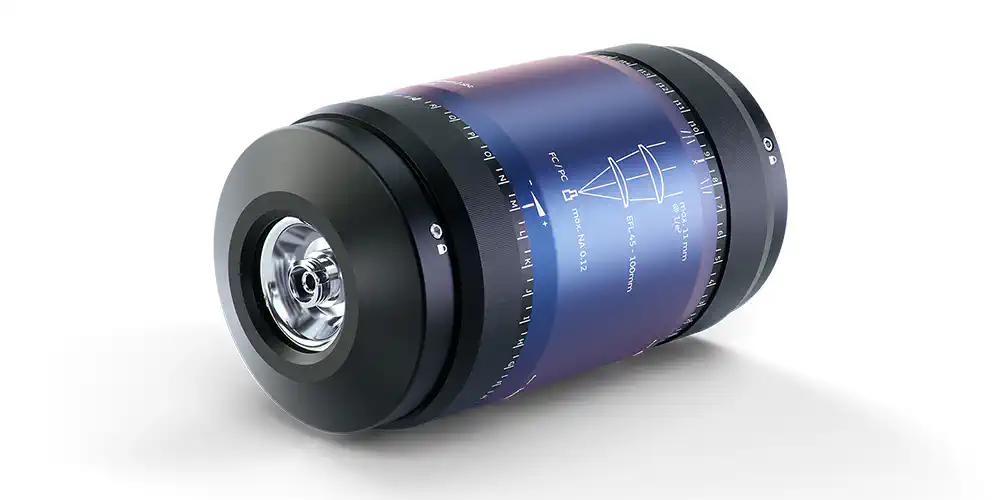

Zoom Fiber Collimator	700 - 880 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 700 - 880 nm Numerical Aperture 0.055 - 0.12 Dimensions 103 mm Focal Length 46.5 - 100 mm Clear Aperture 24 mm Diameter 65.8 mm Beam Diameter 11 Center Wavelength 780 nm Thread M28x0.75 Supplier Location Germany See product details More from asphericon
Fiber Optic Plate	-	-	-	In stock	$ 1665.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Dimensions 75 x 50 x 5 mm Substrate Schott 47A Glass with EMA Surface Quality 80-50 scratch-dig Operating Temperature -10 to 300 °C Resolving Power 6 μm Distortion 1% Resolution 102 lp/mm Supplier Location New Jersey, USA See product details More from Edmund Optics
