Product	Wavelength Range	Operating Temperature	Clear Aperture	Availability	Price (USD)
Stepper-Motor Deformable Mirror	-	-	16 - 25 mm	Contact Supplier	Add to cart to request quote
Product Code Clear Aperture 16 - 25 mm Coating Dielectric, Metal Applications Aberration Correction Focal Spot Correction Harmonics generation Particle Acceleration Angle of Incidence < 10° Surface Irregularity < 10 nm (RMS, Flatness) Strehl Ratio > 0.9 Control Modes Closed Loop Open Loop Control of Zernike Modes < 4 Number of Actuators < 19 Correction Beam Shape Circular, Elliptical Supplier Location France See product details More from Imagine Optic

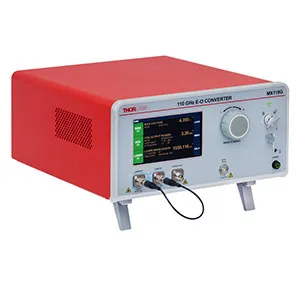

Electrical-to-Optical Converter	1527.6 - 1565.5 nm 1525 - 1575 nm	10 - 40 °C	-	Contact Supplier	$ 96900.00
Product Code Wavelength Range 1527.6 - 1565.5 nm 1525 - 1575 nm Center Wavelength 1527.6 - 1565.5 nm Operating Temperature 10 - 40 °C Fiber Type PM1310-XP, SMF-28 Fiber Connector Type FC/PC Response Time 1 s λ/2 Wave Voltage 3.3 V (1 MHz) 3.7 V (2 GHz) Frequency Range 191.5 - 196.25 THz DC - 110 GHz Insertion Loss 11 dB (Typical) Extinction Ratio 100:1 (20 dB, Typical) Polarization Extinction Ratio 18 dB Optical Output Power 3.981 mW (6 dBm) 50.12 mW (17 dBm) RF Output Power 6 dBm, 17 dBm Linewidth 10 kHz Power Consumption 60 W Storage Temperature 0 - 50 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Pockels Cell	1040 - 1070 nm	-	Ø 5.8 mm	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 1040 - 1070 nm Center Wavelength 1064 nm Clear Aperture Ø 5.8 mm Substrate BBO Dimensions 6.3 x 6.3 x 20 mm (Crystal Size) 35 x 68 mm (Cell Size) Diameter 5.8 mm Contrast Ratio > 500:1 Transmittance > 98% Capacitance < 8 pF λ/4 Wave Voltage < 3.8 kV Number of Crystals 2 Supplier Location Lithuania See product details More from EKSMA Optics
Fiber-Coupled Phase EOM	1260 - 1625 nm	0 - 70 °C	-	In stock	$ 4964.09
Product Code Wavelength Range 1260 - 1625 nm Operating Temperature 0 - 70 °C Substrate LiNbO₃ Fiber Type Panda, SMF-28 λ/2 Wave Voltage 7 V (10 GHz, Typical, RF Port) < 9.5 V, 8.5 V (30 GHz, Typical, RF Port) 10 V (1 kHz, Typical) Frequency Range DC - 1 MHz Insertion Loss < 5.5 dB 5 dB (1310 nm, Typical) < 4.5 dB 4 dB (1550 nm, Typical) Modulation Frequency 1 MHz Return Loss > 40 dB (Optical) Maximum Optical Power < 100 mW Fiber Lead Length 1.5 m (Typical) Crystal Orientation Z-Cut Modulation Bandwidth 35 GHz (Typical) RF Input Power 24 dBm (Maximum) Storage Temperature -40 to 85 °C Supplier Location New Jersey, USA See product details More from Thorlabs

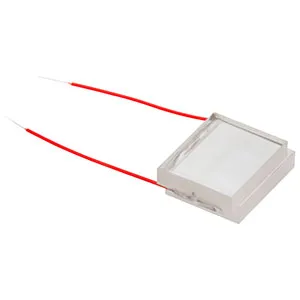

Liquid Crystal Variable Retarder	1050 - 1700 nm	-20 to 45 °C	Ø 10 mm	In stock	$ 1535.82
Product Code Wavelength Range 1050 - 1700 nm Reflectance < 0.5% Parallelism < 5' Operating Temperature -20 to 45 °C Clear Aperture Ø 10 mm Substrate Nematic Liquid Crystal Dimensions Ø 25.4 mm (1", Housing) Thickness 8.6 mm (0.34", Housing) Transmitted Wavefront Error < λ/4 (635 nm) Surface Quality 60-40 scratch-dig Rise Time 66.78 ms Fall Time 1.55 ms (25 °C, 1550 nm) Damage Threshold Pulsed 0.161 J/cm² (0.145 mm, 100 Hz, 70 fs, 1550 nm) 2.5 J/cm² (0.458 mm, 10 Hz, 10 ns, 1542 nm) Coating BBAR (1050 - 1700 nm) Phase Retardance Range > 0.5 π (From 0 nm) Operating Voltage 25 V (Maximum) Coating Features Broadband Cable Length 930 mm (36.6") Crystal Material Nematic Liquid Crystal Retardance Range 0 nm to >λ Storage Temperature -30 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Fiber-Coupled Intensity EOM	1525 - 1605 nm	0 - 70 °C	-	In stock	$ 3549.00
Product Code Wavelength Range 1525 - 1605 nm Operating Temperature 0 - 70 °C Substrate LiNbO₃ Fiber Type Panda, SMF-28 λ/2 Wave Voltage < 6.5 V, 4.5 V (1 GHz, Typical, RF Port) < 10 V, 6.5 V (1 kHz, Typical, Bias Port) Frequency Range DC - 15 GHz Insertion Loss < 5 dB, 4 dB (Typical) Modulation Frequency 15 GHz Interface SMP Extinction Ratio > 100:1 (20 dB, 1550 nm) Return Loss > 40 dB (Optical) Maximum Optical Power 100 mW Fiber Lead Length 1.5 m (Typical) Crystal Orientation X-Cut Bias Voltage -5.5 to -3 V (Reverse) Modulation Bandwidth > 10 GHz, 14 GHz (Typical) RF Input Power 24 dBm (Maximum) Storage Temperature -40 to 85 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Optical Transceiver Assembly	-	-40 to 85 °C	-	Contact Supplier	Add to cart to request quote
Product Code Operating Temperature -40 to 85 °C Cooling System Heatsink Fiber Type Black Loose Tube with Boot Fiber Connector Type MTP Male (Output) Data Transfer Rate 25.7 Gbps (Per Lane) Number of Channels 4 (TX, Data Channels) 4 (RX, Data Channels) Fiber Length 100 mm - 1 m (Pre-configured with 100 cm) Options Different Heat Sinks (Pin-Fin, Flat with Groove ...) and output connector types (MXC, VITA, MPO ...) are available upon request. Data Channel Configuration 4 TX + 4 RX Supplier Location Indiana, USA See product details More from Samtec
Pockels Cell	1064 nm	-	Ø 11 mm	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 1064 nm Center Wavelength 1064 nm Clear Aperture Ø 11 mm Substrate DKDP Dimensions 35 x 41.6 mm (Cell Size) Contrast Ratio > 2000:1 Transmittance > 97% λ/2 Wave Voltage < 6.8 kV (1064 nm) Capacitance 6 pF λ/4 Wave Voltage < 3.4 kV Number of Crystals 1 Supplier Location Lithuania See product details More from EKSMA Optics
Mechanical Optical Shutter	-	-	Ø 12.7 mm (0.5")	In stock	$ 547.64
Product Code Clear Aperture Ø 12.7 mm (0.5") Thickness 1.6 mm (0.063", Blade) Diameter 12.7 mm (0.5") 25.4 mm (1") Blade Material 6061-T6 Aluminum Pulse Duty Cycle 40% (10 Hz) Supplier Location New Jersey, USA See product details More from Thorlabs
Spatial Light Modulator	510 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 510 nm Rise Time 11 ms Fall Time 34 ms Pixel Pitch 12.5 μm Resolution (Pixels) 1272 x 1024 Active Area 15.9 x 12.8 mm Bit Depth 8 bit Frame Rate 60 FPS Input Signal DVI-D Light Utilization Efficiency 97% Fill Factor 96% Supplier Location Japan See product details More from HAMAMATSU

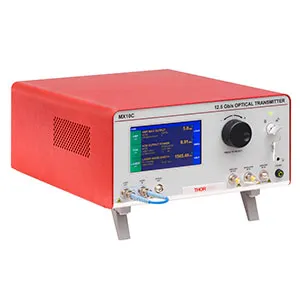

Transmitter with Phase Modulator	1250 - 1610 nm 1310 nm (Typical)	-	-	Contact Supplier	$ 17243.10
Product Code Wavelength Range 1250 - 1610 nm 1310 nm (Typical) Fiber Type Panda, SMF-28 Fiber Connector Type FC/PC Rise Time 35 ps Fall Time 35 ps Response Time 1 s λ/2 Wave Voltage 4.5 V (RF Port) Insertion Loss 0.4 dB (Typical, VOA) 0.1 dB (Typical, per Monitor, Power Monitor) 4.5 dB (1550 nm, Typical) 6.5 dB (1310 nm, Typical) 3.5 dB (1550 nm) 5.5 dB (1310 nm) Modulation Frequency 0 - 10 GHz (-3 dB) 0 - 7 GHz Extinction Ratio 19.95:1 (13 dB, Typical, Maximum) Return Loss -10 dB (Typical, Electrical) Optical Output Power 22.39 mW (13.5 dBm, Typical) RF Output Power 13.5 dBm (Typical) Linewidth 2 MHz (Typical) 3 MHz (Maximum) Frequency Bandwidth 10 GHz (-3 dB) 7 GHz Gain 34 dB Low Cut-Off Frequency 100 kHz Maximum Output Power 22.39 mW (13.5 dBm) Supplier Location New Jersey, USA See product details More from Thorlabs
Free-Space Intensity EOM	400 - 600 nm	-	2 mm	In stock	$ 2998.80
Product Code Wavelength Range 400 - 600 nm Clear Aperture 2 mm Substrate LiNbO₃ Diameter 2 mm λ/2 Wave Voltage 205 V (633 nm, Typical) Modulation Frequency 0 - 100 MHz Capacitance 14 pF Interface SMA (Input) Extinction Ratio > 10:1 (10 dB) Damage Threshold CW 0.2 kW/cm² (532 nm) 0.4 kW/cm² (1064 nm) Crystal Material LiNbO₃ Doped with MgO Supplier Location New Jersey, USA See product details More from Thorlabs
Spatial Light Modulator	420 - 650 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 420 - 650 nm Reflectance 73% Pixel Pitch 8 μm Resolution (Pixels) 1920 x 1200 Active Area 15.42 x 9.66 mm (0.717" Diagonal) Bit Depth 8 bit, 10 bit Phase Retardance Range 5 π (450 nm, Maximum) 2.9 π (633 nm, Maximum) Controller HDMI Display Type Analog Input Frame Rate 60 Hz Fill Factor > 95% Supplier Location Germany See product details More from HOLOEYE
Pockels Cell	300 - 1100 nm	-	-	In stock	$ 1555.00
Product Code Wavelength Range 300 - 1100 nm Transmitted Wavefront Error < λ/10 (1064 nm) Diameter 8 mm Rise Time 800 ps Contrast Ratio > 3500:1 (1064 nm) > 4000:1 (1064 nm) Damage Threshold Pulsed > 10 J/cm² Insertion Loss < 0.04365 dB (1%) Capacitance 6 pF λ/4 Wave Voltage 3.5 kV (1064 nm) Repetition Rate 1 kHz Supplier Location New Jersey, USA See product details More from Edmund Optics
Liquid Crystal Variable Retarder	900 - 1250 nm	0 - 50 °C	9.4 mm (0.37")	1 - 2 days	$ 968.00
Product Code Wavelength Range 900 - 1250 nm Center Wavelength 1250 nm Reflectance < 0.5% (Normal Incidence, per Surface) Operating Temperature 0 - 50 °C Clear Aperture 9.4 mm (0.37") Substrate Liquid Crystal Dimensions 25.4 mm (1") Thickness 31.24 mm (1.23") Transmitted Wavefront Error < λ/4 (632.8 nm) Surface Quality 40-20 scratch-dig Beam Deviation < 2' Retarder Material Nematic Liquid Crystal Driver Mode Temperature Control Options Temperature Control Options Supplier Location Colorado, USA See product details More from Meadowlark

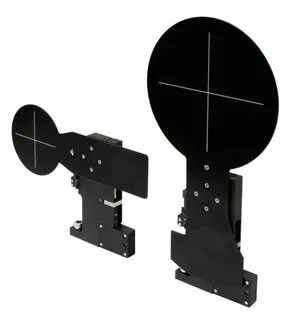

Mechanical Optical Shutter with Controller	-	-	-	3 - 4 weeks	$ 1684.00
Product Code Dimensions Ø 70 mm Angle 90° Supplier Location Lithuania See product details More from EKSMA Optics
Pockels Cell	694 nm	-	Ø 11 mm	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 694 nm Center Wavelength 694 nm Clear Aperture Ø 11 mm Substrate DKDP Dimensions 35 x 41.6 mm (Cell Size) Contrast Ratio > 2000:1 Transmittance > 97% λ/2 Wave Voltage < 4.5 kV (694 nm) Capacitance 6 pF λ/4 Wave Voltage < 2.3 kV Number of Crystals 1 Supplier Location Lithuania See product details More from EKSMA Optics
Fiber-Coupled Phase EOM	1260 - 1625 nm	0 - 70 °C	-	In stock	$ 4964.09
Product Code Wavelength Range 1260 - 1625 nm Operating Temperature 0 - 70 °C Substrate LiNbO₃ Fiber Type Panda, SMF-28 λ/2 Wave Voltage 7 V (10 GHz, Typical, RF Port) < 9.5 V, 8.5 V (30 GHz, Typical, RF Port) 10 V (1 kHz, Typical) Frequency Range DC - 1 MHz Insertion Loss < 5.5 dB 5 dB (1310 nm, Typical) < 4.5 dB 4 dB (1550 nm, Typical) Modulation Frequency 1 MHz Return Loss > 40 dB (Optical) Maximum Optical Power < 100 mW Fiber Lead Length 1.5 m (Typical) Crystal Orientation Z-Cut Modulation Bandwidth 35 GHz (Typical) RF Input Power 24 dBm (Maximum) Storage Temperature -40 to 85 °C Supplier Location New Jersey, USA See product details More from Thorlabs

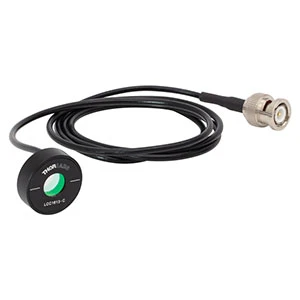

Liquid Crystal Variable Retarder	350 - 700 nm	-20 to 45 °C	Ø 10 mm	In stock	$ 363.50
Product Code Wavelength Range 350 - 700 nm Reflectance < 0.5% Parallelism < 5' Operating Temperature -20 to 45 °C Clear Aperture Ø 10 mm Substrate Nematic Liquid Crystal Dimensions 17 x 12 mm (0.67 x 0.47", Housing) 17 x 12 x 6 mm (0.67 x 0.47 x 0.24") Thickness 6 mm (0.24", Housing) Transmitted Wavefront Error < λ/4 (635 nm) Surface Quality 40-20 scratch-dig Rise Time 9.8 ms Fall Time 240 μs (25 °C, 635 nm) Damage Threshold Pulsed 0.01 J/cm² (0.162 mm, 100 Hz, 76 fs, 532 nm) 1 J/cm² (0.2 mm, 10 Hz, 8 ns, 532 nm) Coating BBAR (350 - 700 nm) Phase Retardance Range > 0.25 π (From 30 nm) Operating Voltage 25 V (Maximum) Coating Features Broadband Mount Unmounted Crystal Material Nematic Liquid Crystal Retardance Range ~30 nm to >λ/2 Storage Temperature -30 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs

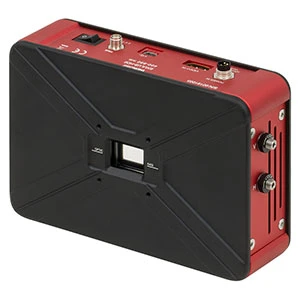

Spatial Light Modulator	400 - 850 nm	-	-	In stock	$ 13568.50
Product Code Wavelength Range 400 - 850 nm Substrate Liquid Crystal Pixel Pitch 8 μm Resolution (Pixels) 1920 x 1200 Damage Threshold Pulsed 0.22 J/cm² (0.2005 mm, 6.8 ns, 10 Hz, 532 nm) 0.0935 J/cm² (0.1082 mm, 203.3 fs, 100 Hz, 515 nm) Active Area 15.42 x 9.66 mm Phase Retardance Range 2 π (633 nm) Frame Rate 60 FPS Applications Beam Steering Fill Factor > 92% Output Trigger Yes (SMA) Supplier Location New Jersey, USA See product details More from Thorlabs
