Product	Wavelength Range	Operating Temperature	Clear Aperture	Availability	Price (USD)
Beam Pointing Stabilization System	400 - 1100 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 400 - 1100 nm Controller Digital PID Modulation Frequency 0 - 10 Hz (Input Pulse Frequency) Interface Ethernet, USB Applications Beam Pointing Stabilization Detector Type Si PIN 4-Quadrant Photodiode Type of Drive Piezo Refresh Rate 100 Hz (Controller) Input Beam Diameter 0.3 - 3 mm Piezo Driver Voltage 0 - 120 V Supplier Location Germany See product details More from TRUMPF Scientific Lasers
Optical Transceiver Assembly	-	-40 to 95 °C	-	Contact Supplier	Add to cart to request quote
Product Code Operating Temperature -40 to 95 °C Data Transfer Rate 4 - 150 Mbps Key Features Sleep Mode Function Supply Voltage 3.135 - 3.465 V Storage Temperature -40 to 110 °C Supplier Location Japan See product details More from HAMAMATSU
Resonant Intensity EOM	900 - 1200 nm	-	-	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 900 - 1200 nm Modulation Frequency 10 MHz 20 MHz (Specify at Time of Order: Locked to Laser Frequency: f/4 or f/8) Interface USB Damage Threshold CW 0.2 kW/cm² (532 nm) 0.4 kW/cm² (1064 nm) Applications Stimulated Raman Scattering Laser Frequency 76 - 84 MHz (±500 kHz) Modulation Depth > 0.85 (After Warm-up) Supplier Location Germany See product details More from APE
Fast Laser Power Modulator	700 - 1100 nm	15 - 35 °C	Ø 3.8 mm (Internal)	In stock	$ 10442.25
Product Code Wavelength Range 700 - 1100 nm Operating Temperature 15 - 35 °C Clear Aperture Ø 3.8 mm (Internal) Dimensions 290.8 x 173.4 x 71.1 mm (11.45 x 6.83 x 2.8", Housing) Transmitted Wavefront Error < λ/4 (633 nm) Rise Time 1.5 - 5 μs Fall Time < 2 μs Contrast Ratio > 250:1 Transmittance > 80% (800 nm) Modulation Frequency 0 - 20 kHz Operating Voltage 0 - 1 V Maximum Optical Power 10 W Applications Fast Power Modulation of NIR Femtosecond Lasers Two-Photon Fluorescence Microscopy Supply Voltage 24 V (1 A) Group Delay Dispersion < 100 fs² Input Impedance 10 kΩ Pulse Energy 500 nJ (Maximum) Storage Temperature -25 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Deformable Phase Plate	420 - 1700 nm	20 - 25 °C	10 mm	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 420 - 1700 nm Operating Temperature 20 - 25 °C Clear Aperture 10 mm Substrate Fused Silica Polymer Dimensions 59.75 x 45.5 x 14.8 mm Thickness 0.87 mm Transmittance 75% (800 nm) Response Time < 55 ms Interface USB Damage Threshold CW 0.01 kW/cm² (1070 nm) Cage System Size 30 mm Applications Beam shaping Long-Term Bio-Imaging OEM Solutions Optical coherence tomography Super Resolution Microscopy Cable Length 1.5 m Mount Threaded Mount, SM, SM1 Focal Length Tuning Range 1000 - 3000 mm Control Modes Closed Loop Open Loop Maximum Optical Path Difference > 8 μm Control of Zernike Modes 36 Number of Actuators 63 Number of Actuators Across Aperture 7 Surface Irregularity < 15 nm (RMS, Flatness) Linearity > 92% Hysteresis < 1% Supplier Location Germany See product details More from Phaseform
Pockels Cell	-	5 - 35 °C	Ø 25 mm	Contact Supplier	Add to cart to request quote
Product Code Operating Temperature 5 - 35 °C Clear Aperture Ø 25 mm Dimensions Ø 25 mm (2.25 x 1.01", Cell Size) Contrast Ratio > 1000:1 Transmittance > 90% (633 nm) Response Time < 20 ns Capacitance ~ 120 pF (25 mm) λ/4 Wave Voltage < 2.2 kV (633 nm) Supplier Location Colorado, USA See product details More from Meadowlark
MEMS Grating Modulator	600 - 1100 nm	-	Ø 6 mm (Internal)	In stock	$ 3534.30
Product Code Wavelength Range 600 - 1100 nm Clear Aperture Ø 6 mm (Internal) Substrate N-BK7 Dimensions 33.02 x 56.39 mm (1.3 x 2.22", Housing) Thickness 5 mm Diameter 25.4 mm (1") Rise Time < 4 μs (97% - 3%) < 2.5 μs (90% - 10%) Fall Time < 4 μs (97% - 3%) < 2.5 μs (90% - 10%) Coating Gold Frequency Range DC - 200 kHz Operating Voltage < 200 V (Maximum) Extinction Ratio 200:1 (632 nm) Reflected Wavefront Error λ/4 Angle 10° Supplier Location New Jersey, USA See product details More from Thorlabs
Q-Switching Kit	-	-	-	Contact Supplier	Add to cart to request quote
Product Code Center Wavelength 1064 nm Substrate DKDP Repetition Rate < 200 Hz Supplier Location Lithuania See product details More from EKSMA Optics
Free-Space Phase EOM	600 - 900 nm	-	2 mm	In stock	$ 2891.70
Product Code Wavelength Range 600 - 900 nm Clear Aperture 2 mm Substrate LiNbO₃ Diameter 2 mm λ/2 Wave Voltage 136 V (633 nm, Typical) Modulation Frequency 0 - 100 MHz Capacitance 14 pF Interface SMA (Input) Damage Threshold CW 0.2 kW/cm² (532 nm) 0.4 kW/cm² (1064 nm) Crystal Material LiNbO₃ Doped with MgO Supplier Location New Jersey, USA See product details More from Thorlabs
Mechanical Optical Shutter	266 nm	-	-	2 weeks	$ 4413.00
Product Code Wavelength Range 266 nm Diameter 8 mm Damage Threshold Pulsed 5 J/cm² Weight 800 g Maximum Optical Power < 20 W Cycle Time 200 ms (Shutter Speed) Supplier Location California, USA See product details More from OptoSigma

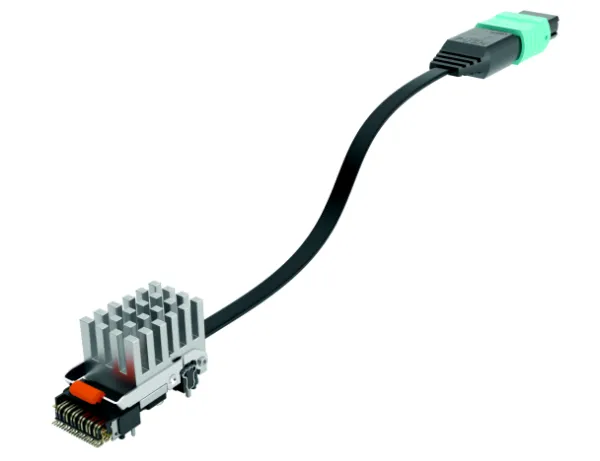

Optical Transceiver Assembly	-	-40 to 85 °C	-	Contact Supplier	Add to cart to request quote
Product Code Operating Temperature -40 to 85 °C Cooling System Heatsink Fiber Type Jacketed Ribbon with Boot Fiber Connector Type MTP Female (Output) Data Transfer Rate 10.3 Gbps (Per Lane) Number of Channels 4 (TX, Data Channels) 4 (RX, Data Channels) Fiber Length 100 mm - 1 m (Pre-configured with 100 cm) Options Different Heat Sinks (Pin-Fin, Flat with Groove ...) and output connector types (MXC, VITA, MPO ...) are available upon request. Data Channel Configuration 4 TX + 4 RX Supplier Location Indiana, USA See product details More from Samtec
Liquid Crystal Variable Retarder	1650 - 3000 nm	-20 to 45 °C	Ø 10 mm	In stock	$ 908.77
Product Code Wavelength Range 1650 - 3000 nm Reflectance < 0.5% Parallelism < 5' Operating Temperature -20 to 45 °C Clear Aperture Ø 10 mm Substrate Nematic Liquid Crystal Dimensions Ø 25.4 mm (1", Housing) Thickness 8 mm (0.32", Housing) Surface Quality 60-40 scratch-dig Rise Time 192 ms Fall Time 1 ms (25.6 °C, 2200 nm) Damage Threshold Pulsed 0.025 J/cm² (0.22 mm, 100 Hz, 100 fs, 2000 nm) 0.041 J/cm² (0.292 mm, 10 Hz, 6.5 ns, 2000 nm) Coating BBAR (1650 - 3000 nm) Phase Retardance Range > 0.25 π (From 30 nm) Operating Voltage 25 V (Maximum) Coating Features Broadband Crystal Material Nematic Liquid Crystal Retardance Range ~30 nm to >λ/2 Storage Temperature -30 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs
Spatial Light Modulator	650 - 1100 nm	-	-	In stock	$ 16466.63
Product Code Wavelength Range 650 - 1100 nm Substrate Liquid Crystal Pixel Pitch 8 μm Resolution (Pixels) 1920 x 1200 Damage Threshold Pulsed 0.15 J/cm² (0.235 mm, 10 ns, 100 Hz, 1064 nm) 0.03 J/cm² (0.135 mm, 200 fs, 100 Hz, 1030 nm) Active Area 15.42 x 9.66 mm Phase Retardance Range 2 π (1064 nm) Frame Rate 60 FPS Applications Beam Steering Fill Factor > 92% Output Trigger Yes (SMA) Supplier Location New Jersey, USA See product details More from Thorlabs
Pockels Cell	200 - 1650 nm	-	-	Contact Supplier	$ 6470.00
Product Code Wavelength Range 200 - 1650 nm Substrate BBO Transmitted Wavefront Error < λ/6 (1064 nm) Diameter 3 mm Contrast Ratio > 1000:1 (1064 nm) Insertion Loss < 0.06564 dB (1.5%) Repetition Rate 1 MHz Supplier Location New Jersey, USA See product details More from Edmund Optics
Q-Switching Kit	-	-	-	Contact Supplier	Add to cart to request quote
Product Code Center Wavelength 1064 nm Substrate DKDP Repetition Rate < 200 Hz Supplier Location Lithuania See product details More from EKSMA Optics

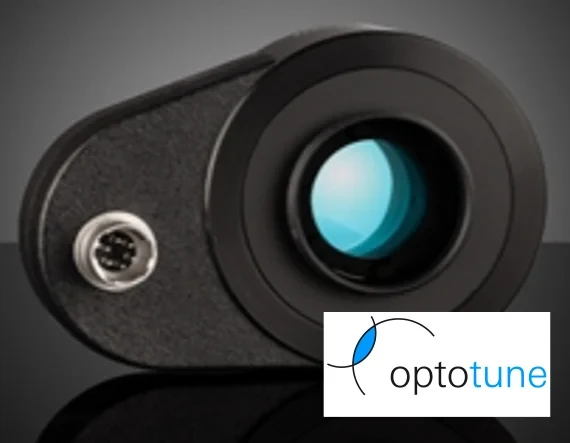

Focal-Length Tunable Lens	420 - 950 nm	-20 to 65 °C	16 mm	In stock	$ 1296.00
Product Code Wavelength Range 420 - 950 nm Operating Temperature -20 to 65 °C Clear Aperture 16 mm Substrate Polymer Dimensions 47 x 70 mm Thickness 17.6 mm Transmitted Wavefront Error λ/4 (525 nm, RMS, Vertical) λ/2 (525 nm, RMS, Horizontal) Response Time 25 ms (30 °C, Settling) 5 ms (30 °C) Coating BBAR (420 - 950 nm) Coating Features Broadband Mount Threaded Mount, M25.5 x 0.5 Threaded Mount, M40.5 x 0.5 Mounting Thread M25.5x0.5, M40.5x0.5 Focal Length Tuning Range -500 to 333 mm (-2 to 3 diopter) Abbe Number 100 Refractive Index 1.3 Lifecycles 1000000000 Power Consumption 0 - 700 mW Supplier Location New Jersey, USA See product details More from Edmund Optics
Mechanical Optical Shutter	-	-	Ø 25.4 mm (1")	In stock	$ 731.76
Product Code Clear Aperture Ø 25.4 mm (1") Thickness 1.6 mm (0.06", Blade) Diameter 12.7 mm (0.5") 25.4 mm (1") Blade Material 6061-T6 Aluminum Pulse Duty Cycle 50% (8 Hz) Supplier Location New Jersey, USA See product details More from Thorlabs
Optical Transceiver Assembly	-	-40 to 85 °C	-	Contact Supplier	Add to cart to request quote
Product Code Operating Temperature -40 to 85 °C Data Transfer Rate 4 - 50 Mbps Supply Voltage 4.5 - 5.5 V Storage Temperature -40 to 85 °C Supplier Location Japan See product details More from HAMAMATSU
Fiber-Coupled Phase EOM	830 nm (Minimum) 850 nm (Typical) 870 nm (Maximum)	5 °C (Minimum) 75 °C (Maximum)	-	In stock	$ 3086.40
Product Code Wavelength Range 830 nm (Minimum) 850 nm (Typical) 870 nm (Maximum) Operating Temperature 5 °C (Minimum) 75 °C (Maximum) Substrate LiNbO₃ Fiber Connector Type FC/APC λ/2 Wave Voltage 1.3 V (10 kHz, Typical, RF Port) 1.5 V (10 kHz, Maximum, RF Port) < 1.5 V, 1.3 V (Typical, RF Port) Frequency Range DC - 200 MHz Insertion Loss < 4 dB, 3 dB (Typical) 4 dB (Maximum) Modulation Frequency 200 MHz Polarization Extinction Ratio > 20 dB Return Loss 30 dB (Minimum, Optical) 40 dB (Typical, Optical) Maximum Optical Power 20 mW, < 25 mW Crystal Orientation X-Cut Modulation Bandwidth 100 MHz (Minimum) 150 MHz (Typical) Supplier Location New Jersey, USA See product details More from Thorlabs
Fast Laser Power Modulator	700 - 1350 nm	15 - 35 °C	Ø 3.8 mm (Internal)	In stock	$ 16065.00
Product Code Wavelength Range 700 - 1350 nm Operating Temperature 15 - 35 °C Clear Aperture Ø 3.8 mm (Internal) Dimensions 290.8 x 173.4 x 71.1 mm (11.45 x 6.83 x 2.8", Housing) Transmitted Wavefront Error < λ/4 (633 nm) Rise Time 1.5 - 5 μs Fall Time < 2 μs Contrast Ratio > 2500:1 Transmittance > 80% (800 nm) Modulation Frequency 0 - 20 kHz Operating Voltage 0 - 1 V Maximum Optical Power 10 W Applications Fast Power Modulation of NIR Femtosecond Lasers Two-Photon Fluorescence Microscopy Supply Voltage 24 V (1 A) Group Delay Dispersion < 100 fs² Input Impedance 10 kΩ Pulse Energy 500 nJ (Maximum) Storage Temperature -25 to 70 °C Supplier Location New Jersey, USA See product details More from Thorlabs
