Fiber Optics

Fiber optics features minimal light loss and total internal reflection (TIR), which allows them to potentially be very long (hundreds of kilometers) and flexible.

Product	Numerical Aperture	Wavelength Range	Substrate	Availability	Price (USD)
Fiber Optic Taper	1	-	Schott 24 Glass with EMA	In stock	$ 1220.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 24 Glass with EMA Surface Quality 30-20 scratch-dig Resolution 102 lp/mm Distortion 3% Resolving Power 6 μm Diameter of Large End 20 mm Height 15.25 mm Size of Small End 12.5 mm Operating Temperature -10 to 300 °C Size Ratio 18:11 mm Supplier Location New Jersey, USA See product details More from Edmund Optics

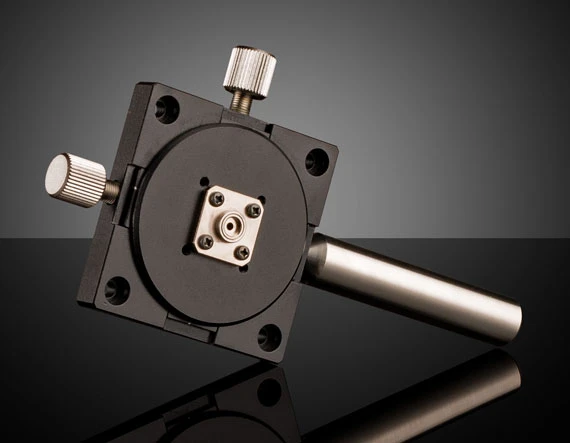

Fiber Optic Alignment Mount	-	-	-	In stock	$ 454.65
Product Code Fiber Connector Type FC Key Features Adjustable - Linear XY Adjustable Focus Type of Drive Lead Screw Linear Travel ±1.5 mm Construction Black Anodized Aluminum Supplier Location New Jersey, USA See product details More from Edmund Optics

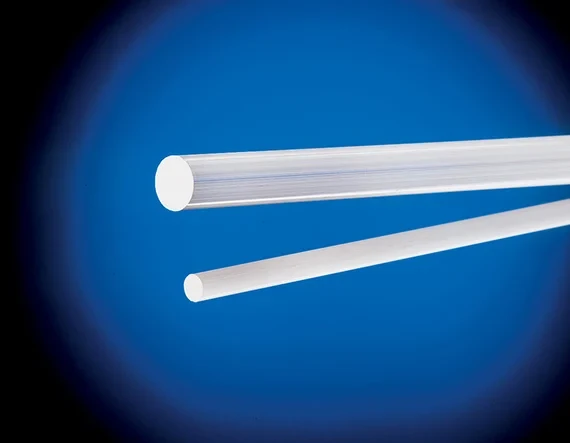

Fiber Optic Image Conduit	0.53	350 - 1500 nm	-	In stock	$ 121.00
Product Code Numerical Aperture 0.53 Wavelength Range 350 - 1500 nm Fiber Cable Length ±762 μm Cladding Refractive Index 1.49 Core Refractive Index 1.58 Minimum Bend Radius 6.4 mm Key Features Standard Resolution Dimensions 25.4 mm (1") Number of Fibers 3012 Resolution 20 lp/mm Transmission 35 - 45% Operating Temperature 454 °C Transformation Temperature 704 °C Outer Diameter 1.6 mm Fiber Diameter 25 μm Supplier Location New Jersey, USA See product details More from Edmund Optics
Refocusing Assembly Collimator	-	350 - 2200 nm	N-BK7	In stock	$ 187.62
Product Code Wavelength Range 350 - 2200 nm Substrate N-BK7 Key Features Refocusing Assembly Dimensions 16.38 mm Diameter 15.88 mm Focal Length 25 mm Operating Temperature -40 to 100 °C Housing Material Anodized Aluminum Supplier Location New Jersey, USA See product details More from Edmund Optics
Fiber Optic Plate	1	-	Schott 47A Glass with EMA	In stock	$ 1240.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 47A Glass with EMA Surface Quality 80-50 scratch-dig Dimensions 75 x 50 x 3 mm Resolution 102 lp/mm Distortion 1% Resolving Power 6 μm Operating Temperature -10 to 300 °C Supplier Location New Jersey, USA See product details More from Edmund Optics

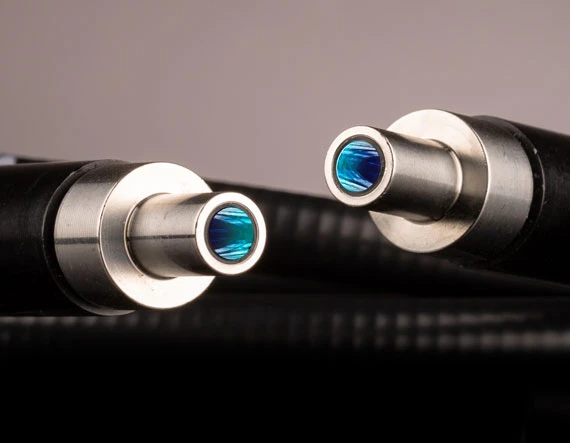

Liquid Light Guide	0.55	-	-	In stock	$ 590.00
Product Code Numerical Aperture 0.55 Minimum Bend Radius 127 mm (5") Core Diameter 5 mm Ferrule Diameter 7.925 mm (0.312") Supplier Location New Jersey, USA See product details More from Edmund Optics
Fiber Optic Taper	1	-	Schott 24 Glass with EMA	In stock	$ 2060.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 24 Glass with EMA Surface Quality 30-20 scratch-dig Resolution 102 lp/mm Distortion 3% Resolving Power 6 μm Diameter of Large End 27 mm Height 25 mm Size of Small End 11.9 mm Operating Temperature -10 to 300 °C Size Ratio 25:11 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Liquid Light Guide	0.55	-	-	In stock	$ 555.00
Product Code Numerical Aperture 0.55 Minimum Bend Radius 101.6 mm (4") Core Diameter 4 mm Ferrule Diameter 7.925 mm (0.312") Supplier Location New Jersey, USA See product details More from Edmund Optics

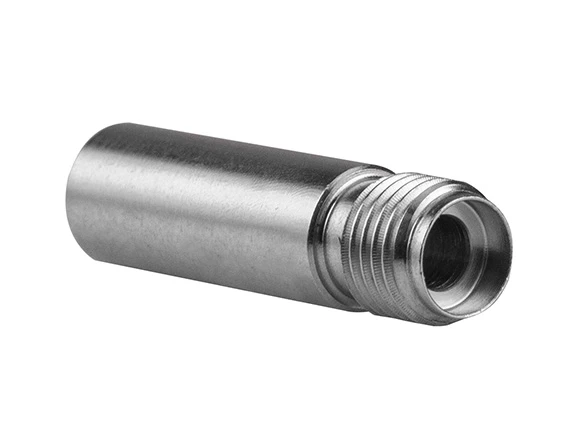

Mating Sleeve	-	-	-	In stock	$ 20.00
Product Code Fiber Connector Type SMA Supplier Location New Jersey, USA See product details More from Edmund Optics
Multi-Mode Patch Cable	0.22	-	-	In stock	$ 252.00
Product Code Numerical Aperture 0.22 Fiber Connector Type FC/PC Fiber Cable Length 1.5 m Core Diameter 400 μm Jacket Material PVC Operating Temperature -40 to 100 °C Supplier Location New Jersey, USA See product details More from Edmund Optics

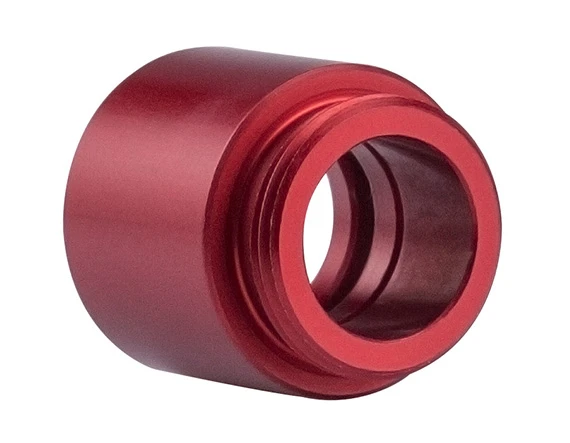

Mating Sleeve	-	-	-	In stock	$ 78.00
Product Code Fiber Connector Type FC, SMA Supplier Location New Jersey, USA See product details More from Edmund Optics
Multi-Mode Fiber	0.22 (±0.02)	190 - 1250 nm	Fused Silica	Contact Supplier	$ 104.00
Product Code Manufacturer Corning Numerical Aperture 0.22 (±0.02) Wavelength Range 190 - 1250 nm Substrate Fused Silica Fiber Cable Length 25 m Cladding Refractive Index 1.439 Core Refractive Index 1.457 Core Diameter 100 μm (±3 μm) Cladding Diameter 110 μm (±3 μm) Operating Temperature -190 to 390 °C Outer Diameter 0.124 mm (±0.003 mm) Acceptance Angle 25° 24' Short Term Bend Radius 11 mm Buffer Material Polyimide Long Term Bend Radius 22 mm Supplier Location New Jersey, USA See product details More from Edmund Optics

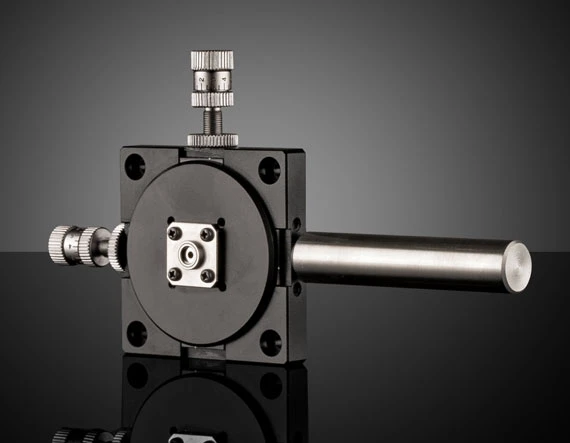

Fiber Optic Alignment Mount	-	-	-	In stock	$ 511.35
Product Code Fiber Connector Type FC Key Features Adjustable - Linear XY Adjustable Focus Type of Drive Differential Micrometer Linear Travel ±1.5 mm Linear Travel Resolution 2.5 μm Construction Black Anodized Aluminum Supplier Location New Jersey, USA See product details More from Edmund Optics
Fiber Optic Taper	1	-	Schott 24 Glass with EMA	In stock	$ 1345.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 24 Glass with EMA Surface Quality 30-20 scratch-dig Resolution 102 lp/mm Distortion 3% Resolving Power 6 μm Diameter of Large End 20 mm Height 20 mm Size of Small End 6.4 mm, 4.8 mm Operating Temperature -10 to 300 °C Size Ratio 18:^1/2" CCD Supplier Location New Jersey, USA See product details More from Edmund Optics
Adjustable PCX Collimator	0.22	190 - 1250 nm	Fused Silica	In stock	$ 242.74
Product Code Manufacturer Corning Numerical Aperture 0.22 Wavelength Range 190 - 1250 nm Substrate Fused Silica Fiber Connector Type SMA Dimensions 23.37 mm Diameter 6.35 mm (0.25") Focal Length 10 mm Operating Temperature -40 to 100 °C Fiber Diameter < 400 μm Housing Material Stainless Steel Supplier Location New Jersey, USA See product details More from Edmund Optics
Fiber Optic Plate	1	-	Schott 47A Glass with EMA	In stock	$ 1665.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 47A Glass with EMA Surface Quality 80-50 scratch-dig Dimensions 75 x 50 x 5 mm Resolution 102 lp/mm Distortion 1% Resolving Power 6 μm Operating Temperature -10 to 300 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
Ring Light Guide	0.55	400 - 2000 nm	-	In stock	$ 1045.00
Product Code Numerical Aperture 0.55 Wavelength Range 400 - 2000 nm Fiber Cable Length 914.4 mm (±12.7 mm, 36") Cladding Refractive Index 1.487 Core Refractive Index 1.581 Minimum Bend Radius 38.1 mm Ferrule Diameter 14.2748 mm (0.562") Bore Diameter 66.04 mm (2.6") Working Distance 38.1 - 228.6 mm (1.5 - 9") Operating Temperature -40 to 107 °C Outer Diameter 9.271 mm (0.365") 88.392 mm (3.48") Acceptance Angle 68° Fiber Diameter 50 μm Supplier Location New Jersey, USA See product details More from Edmund Optics
Fiber Optic Taper	1	-	Schott 24 Glass with EMA	In stock	$ 2260.00
Product Code Manufacturer SCHOTT Numerical Aperture 1 Substrate Schott 24 Glass with EMA Surface Quality 30-20 scratch-dig Resolution 102 lp/mm Distortion 3% Resolving Power 6 μm Diameter of Large End 27 mm Height 25 mm Size of Small End 8.8 mm, 6.6 mm Operating Temperature -10 to 300 °C Size Ratio 25:2/3" CCD Supplier Location New Jersey, USA See product details More from Edmund Optics
Aspheric Collimator	0.16	600 - 1050 nm	D-ZK3	In stock	$ 231.88
Product Code Numerical Aperture 0.16 Wavelength Range 600 - 1050 nm Substrate D-ZK3 Fiber Connector Type SMA Surface Quality 40-20 scratch-dig AR-Coating 600 - 1050 nm Alignment Wavelength 780 nm Clear Aperture 5 mm Effective Focal Length 15.29 mm (780 nm) Housing Diameter 11 mm Housing Length 20.2 mm f/# 3.13 Construction 304L Stainless Steel Housing Coating Specification R_abs <1% @ 600 - 1050nm Conjugate Distance Infinite Mount M11 x 0.5 Focal Length Specification Wavelength 780 nm Supplier Location New Jersey, USA See product details More from Edmund Optics

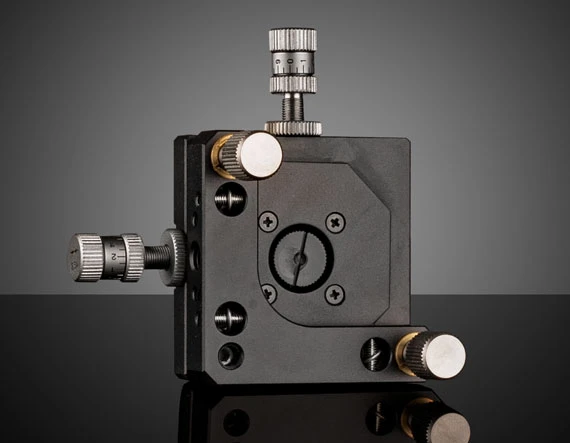

Fiber Optic Alignment Mount	-	-	-	In stock	$ 556.50
Product Code Fiber Connector Type FC Key Features Adjustable - Linear XY & Tip-Tilt Adjustable Focus Type of Drive Differential Micrometer Linear Travel ±1.5 mm Linear Travel Resolution 2.5 μm Angular Resolution 21' 36'' Tip/Tilt Angle ±2° Construction Black Anodized Aluminum Supplier Location New Jersey, USA See product details More from Edmund Optics
