Displacement Prisms

Optical prisms that maintain the direction of the ray path but displace the position of the outcoming beam.

Product	Wavelength Range	Dimensions	Coating	Availability	Price (USD)
Right Angle Prism Mirror	250 - 700 nm	35 mm	UV-Enhanced Aluminum	Contact Supplier	$ 175.96
Product Code Wavelength Range 250 - 700 nm Coating UV-Enhanced Aluminum Reflectance > 85% (250 - 700 nm, Average) > 89% (250 - 450 nm, Average) Dimensions 35 mm Surface Irregularity λ/4 (PV, Flatness) Clear Aperture 44.55 x 31.5 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 60-40 scratch-dig Angle Tolerance ±2' Length 35 mm Damage Threshold Pulsed 0.5 J/cm² (10 ns, 355 nm) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Corner Cube Prism	425 - 675 nm	Ø 12.7 x 10.16 mm	BBAR, Protected Silver	In stock	$ 280.90
Product Code Wavelength Range 425 - 675 nm Coating BBAR, Protected Silver Reflectance > 98% (400 - 2500 nm, 0°, Average) > 97% (400 - 2500 nm, 0°, Absolute) Diameter 12.7 mm (0.5") Dimensions Ø 12.7 x 10.16 mm Surface Irregularity λ/8 (Flatness) Clear Aperture 11.43 mm Shape Corner Cube Prism Substrate N-BK7 Surface Quality 60-40 scratch-dig Beam Deviation 180° (±5'') Diameter Tolerance +0/-0.1 mm Height 10.16 mm Height Tolerance ±0.25 mm Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Right Angle Prism	350 - 2000 nm (Customizable)	3 x 3 x 3 mm	-	3 weeks	$ 7.65
Product Code Wavelength Range 350 - 2000 nm (Customizable) Dimensions 3 x 3 x 3 mm Thickness 3 mm Surface Irregularity < λ/4 (Flatness) Clear Aperture > 2.7 x 2.7 x 2.7 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 20-10 scratch-dig Beam Deviation 90° Angle Tolerance ±1' Thickness Tolerance ±0.1 mm Chamfer < 0.15 mm (45°) Supplier Location China See product details More from Band-Optics
Right Angle Prism Mirror	> 450 - 2000 nm (90%) > 2000 - 20000 nm (95%)	-	Protected Aluminum	In stock	$ 169.06
Product Code Wavelength Range > 450 - 2000 nm (90%) > 2000 - 20000 nm (95%) Reflection Wavelength 450 - 2000 nm 2000 - 20000 nm Coating Protected Aluminum Reflectance > 90% (450 - 2000 nm, 0 - 45°, Average) > 90% (450 - 2000 nm, Average) > 95% (2000 - 20000 nm, Average) Surface Irregularity < λ/10 (633 nm, PV, Flatness) Clear Aperture Ø 12.5 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 40-20 scratch-dig Mount Cube, 8-32 Tap Housing Material Engraved Black Anodized Aluminum Housing Supplier Location New Jersey, USA See product details More from Thorlabs
Corner Cube Prism	1050 - 1700 nm (Coating Range)	Ø 30.5 mm (1.2")	BBAR (1050 - 1700 nm)	In stock	$ 245.32
Product Code Wavelength Range 1050 - 1700 nm (Coating Range) Center Wavelength 633 nm Coating BBAR (1050 - 1700 nm) Reflectance < 0.5% (0°, Average) Diameter 30.5 mm (1.2") 25.4 mm Dimensions Ø 30.5 mm (1.2") Surface Irregularity λ/10 (633 nm, Flatness) Clear Aperture 21.35 mm Shape Prism Substrate N-BK7 Surface Quality 40-20 scratch-dig Beam Deviation 180°, < 3'' Damage Threshold Pulsed 7.5 J/cm² (0.123 mm, 10 ns, 10 Hz, 1542 nm) Coating Features Broadband Diameter Tolerance +0/-0.1 mm Mount Threaded Mount, SM, SM1 Input Beam Diameter 8.125 mm (0.32", Maximum) Supplier Location New Jersey, USA See product details More from Thorlabs
Right Angle Prism Mirror	750 - 1100 nm	10 mm	Dielectric	Contact Supplier	$ 137.80
Product Code Wavelength Range 750 - 1100 nm Coating Dielectric Reflectance > 98% (750 - 1100 nm, Average) Dimensions 10 mm Surface Irregularity λ/8 (Flatness) Shape Right Angle Prism Substrate N-BK7 Surface Quality 40-20 scratch-dig Angle Tolerance ±2' Length 10 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Right Angle Prism	310 - 2700 nm	20 x 20 mm (±0.25 mm)	-	Contact Supplier	$ 63.00
Product Code Wavelength Range 310 - 2700 nm Dimensions 20 x 20 mm (±0.25 mm) Surface Irregularity λ/4 (633 nm, Flatness) Clear Aperture 16 x 16 mm Shape Right Angle Prism Substrate BK7 Surface Quality 40-20 scratch-dig Beam Deviation 90° (±5'') Angle Tolerance ±2.5'' Supplier Location Lithuania See product details More from EKSMA Optics
Right Angle Prism	500 - 1200 nm 450 - 700 nm	20 x 20 mm	Silver	In stock	$ 110.00
Product Code Wavelength Range 500 - 1200 nm 450 - 700 nm Center Wavelength 400 - 750 nm Coating Silver Reflectance > 96% (500 - 1200 nm) < 0.5% (450 - 700 nm) Dimensions 20 x 20 mm Surface Irregularity λ/4 (Hypotenuse, Flatness) λ (Short Faces, Flatness) Shape Right Angle Prism Substrate N-BK7 Beam Deviation 90° (±5') Supplier Location Pennsylvania, USA See product details More from Excelitas
Corner Cube Prism	400 - 700 nm	Ø 30 x 22.7 mm	BBAR (400 - 700 nm)	Contact Supplier	$ 563.00
Product Code Wavelength Range 400 - 700 nm Coating BBAR (400 - 700 nm) Diameter 30 mm Dimensions Ø 30 x 22.7 mm Clear Aperture 27 mm Shape Corner Cube Prism Substrate BK7 Surface Quality 40-20 scratch-dig Beam Deviation 180° Damage Threshold Pulsed 4 J/cm² Coating Features Broadband Weight 20 g Height 22.7 mm Angle of Incidence 0 - 20° Supplier Location California, USA See product details More from OptoSigma

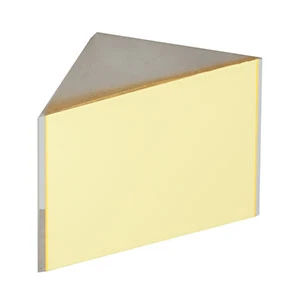

Right Angle Prism Mirror	800 - 20000 nm	15 mm	Protected Gold	In stock	$ 89.61
Product Code Wavelength Range 800 - 20000 nm Reflection Wavelength 800 - 20000 nm Coating Protected Gold Reflectance > 96% (800 - 20000 nm, Average) Dimensions 15 mm Surface Irregularity λ/10 (633 nm, PV, Coated Surface) Clear Aperture 10.5 mm (Width) Shape Right Angle Prism Substrate N-BK7 Surface Quality 40-20 scratch-dig Angle Tolerance ±3' Length 15 mm Damage Threshold Pulsed 2 J/cm² (1 mm, 10 ns, 10 Hz, 1064 nm) Supplier Location New Jersey, USA See product details More from Thorlabs
Right Angle Prism	390 - 710 nm	-	Black Overcoat Enhanced Silver Enhanced Silver (Hypotenuse) Black Overcoat (Cathetus)	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 390 - 710 nm Coating Black Overcoat Enhanced Silver Enhanced Silver (Hypotenuse) Black Overcoat (Cathetus) Surface Irregularity λ/2 (632 nm, Flatness) Clear Aperture 27 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 60-40 scratch-dig Beam Deviation 90° (±3') Angle Tolerance ±3' Supplier Location Netherlands See product details More from PHYSIX Photonics
Right Angle Prism Mirror	700 - 10000 nm	3 mm	Protected Gold	Contact Supplier	$ 118.72
Product Code Wavelength Range 700 - 10000 nm Coating Protected Gold Reflectance > 96% (700 - 2000, Average) > 96% (2000 - 10000 nm, Average) Dimensions 3 mm Surface Irregularity λ/8 (Flatness) Clear Aperture 3.82 x 2.7 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 20-10 scratch-dig Angle Tolerance ±2' Length 3 mm Damage Threshold Pulsed 0.8 J/cm² (10 ns, 1064 nm) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Corner Cube Prism	670 nm	Ø 10 mm	AR/Transmissive V-Coating (670 nm) Silver	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 670 nm Coating AR/Transmissive V-Coating (670 nm) Silver Diameter 10 mm Dimensions Ø 10 mm Shape Corner Cube Prism Substrate N-BK7 Surface Quality 10-5 scratch-dig Beam Deviation 180°, < 5'' Coating Features Narrowband Supplier Location Netherlands See product details More from PHYSIX Photonics
Right Angle Prism	200 - 7000 nm	30 x 42.42 mm	Uncoated	Contact Supplier	$ 399.53
Product Code Wavelength Range 200 - 7000 nm Coating Uncoated Dimensions 30 x 42.42 mm Thickness 30 mm Surface Irregularity < λ/2 (4000 nm, Flatness) Clear Aperture 21 x 29.69 mm Shape Right Angle Prism Substrate Calcium Fluoride Surface Quality 40-20 scratch-dig Beam Deviation 90° (±6') Angle 45° (±0.1 mm) Supplier Location United Kingdom; Rhode Island, USA See product details More from Knight Optical
Corner Cube Prism	905 nm	Ø 50 mm	AR/Transmissive V-Coating (905 nm) Silver	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 905 nm Coating AR/Transmissive V-Coating (905 nm) Silver Diameter 50 mm Dimensions Ø 50 mm Shape Corner Cube Prism Substrate N-BK7 Surface Quality 10-5 scratch-dig Beam Deviation 180°, < 10'' Coating Features Narrowband Supplier Location Netherlands See product details More from PHYSIX Photonics
Right Angle Prism Mirror	> 750 - 1100 nm (99%)	-	Dielectric	In stock	$ 266.93
Product Code Wavelength Range > 750 - 1100 nm (99%) Reflection Wavelength 750 - 1100 nm Coating Dielectric Reflectance > 99% (750 - 1100 nm, 0 - 45°, Average) > 99% (750 - 1100 nm, Average) Surface Irregularity < λ/10 (633 nm, PV, Flatness) Clear Aperture Ø 12.5 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 10-5 scratch-dig Mount Cube, 8-32 Tap Housing Material Engraved Black Anodized Aluminum Housing Supplier Location New Jersey, USA See product details More from Thorlabs
Right Angle Prism Mirror	450 - 2000 nm 2000 - 20000 nm	50 mm	Protected Aluminum	In stock	$ 249.02
Product Code Wavelength Range 450 - 2000 nm 2000 - 20000 nm Reflection Wavelength 450 - 2000 nm 2000 - 20000 nm Coating Protected Aluminum Reflectance > 90% (450 - 2000 nm, Average) > 95% (2000 - 20000 nm, Average) Dimensions 50 mm Surface Irregularity λ/10 (633 nm, PV, Coated Surface) Clear Aperture 35 mm (Width) Shape Right Angle Prism Substrate N-BK7 Surface Quality 40-20 scratch-dig Angle Tolerance ±3' Length 50 mm Damage Threshold Pulsed 0.3 J/cm² (1 mm, 10 ns, 10 Hz, 1064 nm) Supplier Location New Jersey, USA See product details More from Thorlabs
Right Angle Prism	310 - 2700 nm	12.7 mm (0.5")	-	Contact Supplier	$ 39.00
Product Code Wavelength Range 310 - 2700 nm Dimensions 12.7 mm (0.5") Surface Irregularity λ/4 (Flatness) Shape Right Angle Prism Substrate BK7 Surface Quality 10-5 scratch-dig Beam Deviation 90° Length 12.7 mm (0.5") Weight 5 g Supplier Location California, USA See product details More from OptoSigma
Right Angle Prism Mirror	250 - 700 nm	15 mm	UV-Enhanced Aluminum	In stock	$ 105.47
Product Code Wavelength Range 250 - 700 nm Coating UV-Enhanced Aluminum Reflectance > 85% (250 - 700 nm, Average) > 89% (250 - 450 nm, Average) Dimensions 15 mm Surface Irregularity λ/4 (PV, Flatness) Clear Aperture 19.09 x 13.5 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 60-40 scratch-dig Angle Tolerance ±2' Length 15 mm Damage Threshold Pulsed 0.5 J/cm² (10 ns, 355 nm) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Right Angle Prism	310 - 2700 nm	-	Uncoated Uncoated (Hypotenuse) Uncoated (Cathetus)	Contact Supplier	Add to cart to request quote
Product Code Wavelength Range 310 - 2700 nm Coating Uncoated Uncoated (Hypotenuse) Uncoated (Cathetus) Surface Irregularity λ/2 (632 nm, Flatness) Clear Aperture 68.6 mm Shape Right Angle Prism Substrate N-BK7 Surface Quality 60-40 scratch-dig Beam Deviation 90° (±3') Angle Tolerance ±3' Supplier Location Netherlands See product details More from PHYSIX Photonics
