Optical Mirrors

Mirrors are optical components that reflect light from their reflective surfaces. Reflectivity can be achieved using metallic substrates or by applying HR dielectric or metallic coatings to otherwise transmissive materials (usually glass).

Product	Wavelength Range	Reflectance	Substrate	Availability	Price (USD)

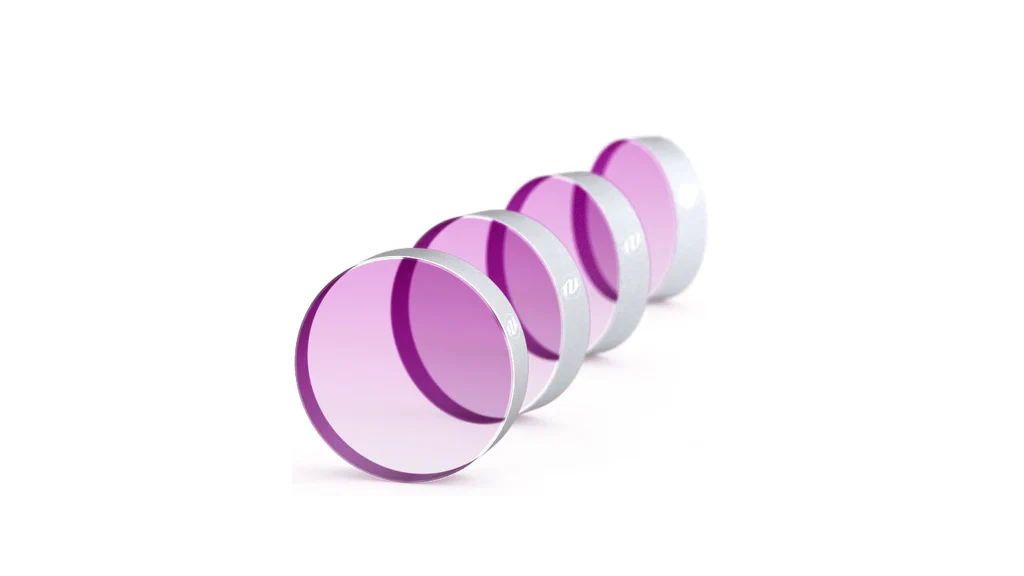

Round Mirror	1030 nm (Center Wavelength)	> 99.9% (1030 nm)	UV Fused Silica	In stock	$ 159.04
Product Code Manufacturer Optoman Wavelength Range 1030 nm (Center Wavelength) Center Wavelength 1030 nm Reflection Wavelength 1030 nm Coating Reflective V-Coating (1030 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (1030 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/6 (633 nm, Flatness) Clear Aperture 20 mm (Minimum) Surface Quality 20-10 scratch-dig (S1) < 60-40 scratch-dig (S2) Coating Features Narrowband Angle of Incidence 0° Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 4 J/cm² (1 mm, 0.2 mm, 500 ps, 100 Hz, 1030 nm) Chamfer 0.1 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP

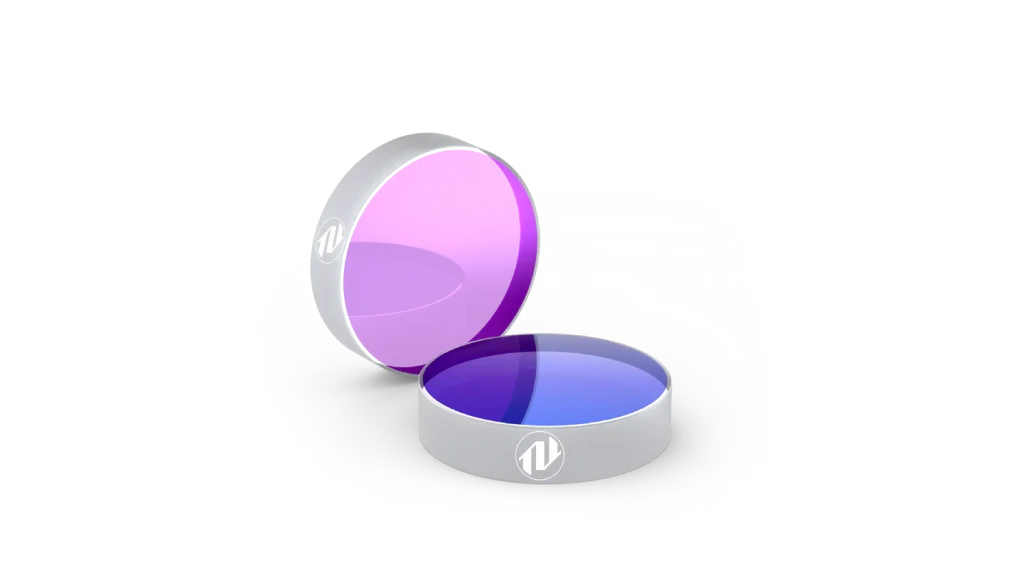

Round Mirror	2940 nm (Center Wavelength)	> 99% (2940 nm, 1535 nm)	UV Fused Silica	In stock	$ 551.85
Product Code Manufacturer Optoman Wavelength Range 2940 nm (Center Wavelength) Center Wavelength 2940 nm Reflection Wavelength 2940 nm, 1535 nm Transmission Wavelength 635 nm Coating AR/Transmissive V-Coating (635 nm) Reflective V-Coating (1535 nm) Reflective V-Coating (2940 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99% (2940 nm, 1535 nm) Transmittance 85% (635 nm) Diameter 38.1 mm Dimensions Ø 38.1 mm Thickness 6.35 mm (0.25", Edge) Edge Thickness 6.35 mm (0.25") Parallelism < 30'' Substrate UV Fused Silica Surface Irregularity < λ/4 (633 nm, over 15 mm, Flatness) Clear Aperture 31 mm (Minimum) Surface Quality 20-10 scratch-dig (S1, S2) Coating Features Multi Wavelength Narrowband Angle of Incidence 45° Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Er:YAG Edge Thickness Tolerance ±0.1 mm Chamfer 0.2 - 0.5 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP

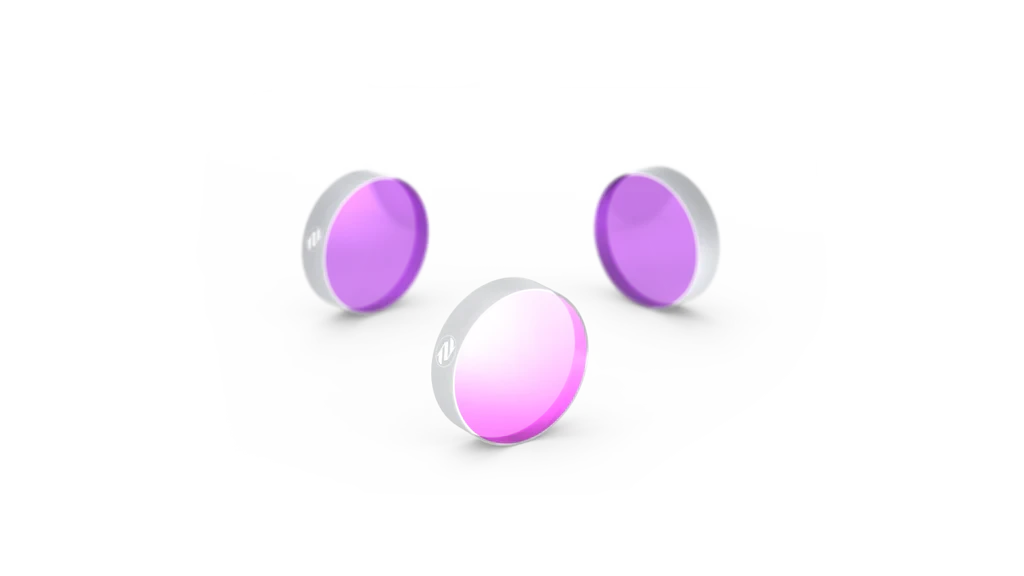

Round Mirror	910 - 930 nm	> 99.9% (910 - 930 nm) (s-pol) > 99.9% (910 - 930 nm) (p-pol)	UV Fused Silica	In stock	$ 124.96
Product Code Manufacturer Optoman Wavelength Range 910 - 930 nm Center Wavelength 910 - 930 nm Coating BBHR (910 - 930 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (910 - 930 nm) (s-pol) > 99.9% (910 - 930 nm) (p-pol) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity λ/8 (633 nm, over 5 mm, Flatness) Clear Aperture > 20.32 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Broadband Angle of Incidence 45° Group Delay Dispersion < 10 fs², 20 fs² (45°, 910 - 930 nm, s-pol, p-pol) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Applications Ultrafast Laser Optics Chamfer 0.1 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP

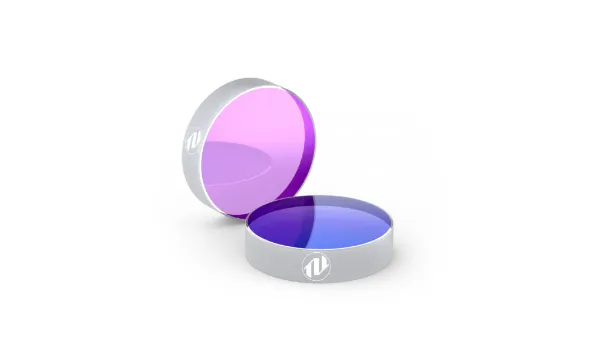

Round Mirror	610 - 1040 nm	> 99.5% (610 - 1040 nm) (s-pol)	UV Fused Silica	In stock	$ 197.66
Product Code Manufacturer Optoman Wavelength Range 610 - 1040 nm Center Wavelength 610 - 1040 nm Coating BBHR (610 - 1040 nm) Coating Method Ion Beam Sputtering (Front) Ion Beam Sputtering (Rear) Reflectance > 99.5% (610 - 1040 nm) (s-pol) Diameter 20 mm Dimensions Ø 20 mm Thickness 5 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/6 (633 nm, Flatness) Clear Aperture 18 mm (Minimum) Surface Quality 20-10 scratch-dig (S1) < 60-40 scratch-dig (S2) Coating Features Broadband Angle of Incidence 45° Group Delay Dispersion ±80 fs² (45°, 610 - 1040 nm, s-pol) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Ti:Sa Applications Ultrafast Laser Optics Chamfer 0.1 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	500 - 540 nm	> 99.9% (500 - 540 nm, 1000 - 1070 nm) (s-pol) > 99.8% (507 - 527 nm) (p-pol) > 99.9% (1005 - 1070 nm) (p-pol)	UV Fused Silica	In stock	$ 431.68
Product Code Manufacturer Optoman Wavelength Range 500 - 540 nm Center Wavelength 500 - 540 nm Coating BBHR (500 - 540 nm) BBHR (507 - 527 nm) Coating Method Ion Beam Sputtering (Front) Ion Beam Sputtering (Rear) Reflectance > 99.9% (500 - 540 nm, 1000 - 1070 nm) (s-pol) > 99.8% (507 - 527 nm) (p-pol) > 99.9% (1005 - 1070 nm) (p-pol) Diameter 50.8 mm (2") Dimensions Ø 50.8 mm (2") Thickness 9.52 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/6 (40 mm, 633 nm, Flatness) Clear Aperture 45.72 mm (Minimum) Surface Quality 10-5 scratch-dig (S1) Coating Features Broadband, Multi Wavelength Angle of Incidence 45° Group Delay Dispersion < 20 fs² (1000 - 1070 nm) < 40 fs² (1010 - 1055 nm) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Chamfer 0.1 - 0.5 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	500 - 530 nm	> 99.9% (500 - 530 nm)	UV Fused Silica	In stock	$ 340.80
Product Code Manufacturer Optoman Wavelength Range 500 - 530 nm Center Wavelength 500 - 530 nm Reflection Wavelength 500 - 530 nm Coating BBHR (500 - 530 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (500 - 530 nm) Diameter 50.8 mm (2") Dimensions Ø 50.8 mm (2") Thickness 9.52 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/8 (633 nm, over 29 mm, Flatness) Clear Aperture > 40.64 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Broadband Angle of Incidence 0° Group Delay Dispersion < 10 fs² Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.12 J/cm² (500 fs, 10 kHz, 515 nm) > 0.7 J/cm² (10 ps, 10 kHz, 515 nm) Chamfer 0.2 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1030 nm (Center Wavelength)	> 99.9% (1030 nm)	UV Fused Silica	In stock	$ 443.04
Product Code Manufacturer Optoman Wavelength Range 1030 nm (Center Wavelength) Center Wavelength 1030 nm Reflection Wavelength 1030 nm Coating Reflective V-Coating (1030 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (1030 nm) Diameter 50.8 mm (2") Dimensions Ø 50.8 mm (2") Thickness 9.52 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity λ/8 (633 nm, over 20.5 mm, Flatness) Clear Aperture > 40.64 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Narrowband Angle of Incidence 0 - 45° Group Delay Dispersion < 30 fs² (0 - 45°, 1030 nm) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.35 J/cm² (500 fs, 10 kHz, 45°, 1030 nm, p-pol) > 0.65 J/cm² (500 fs, 10 kHz, 45°, 1030 nm, s-pol) > 0.25 J/cm² (500 fs, 10 kHz, 0°, 1030 nm) Chamfer 0.2 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1030 nm (Center Wavelength)	> 80% (400 - 800 nm) > 99.9% (1030 nm) (s-pol) > 99.9% (1030 nm) (p-pol)	UV Fused Silica	In stock	$ 374.88
Product Code Manufacturer Optoman Wavelength Range 1030 nm (Center Wavelength) Center Wavelength 1030 nm Reflection Wavelength 400 - 800 nm Coating BBHR (400 - 800 nm) Reflective V-Coating (1030 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 80% (400 - 800 nm) > 99.9% (1030 nm) (s-pol) > 99.9% (1030 nm) (p-pol) Diameter 38.1 mm Dimensions Ø 38.1 mm Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/6 (13 mm, 633 nm, Flatness) Clear Aperture 32.5 mm (Minimum) Surface Quality 20-10 scratch-dig (S1) 80-50 scratch-dig (S2) Coating Features Broadband, Multi Wavelength, Narrowband Angle of Incidence 45° Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Chamfer 0.2 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1030 nm (Center Wavelength)	> 99.9% (1030 nm) (s-pol) > 99.9% (515 nm) (s-pol) > 99.9% (1030 nm) (p-pol) > 99.9% (515 nm) (p-pol)	UV Fused Silica	In stock	$ 113.60
Product Code Manufacturer Optoman Wavelength Range 1030 nm (Center Wavelength) Center Wavelength 1030 nm Coating Reflective V-Coating (1030 nm) Reflective V-Coating (515 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (1030 nm) (s-pol) > 99.9% (515 nm) (s-pol) > 99.9% (1030 nm) (p-pol) > 99.9% (515 nm) (p-pol) Diameter 12.7 mm (0.5") Dimensions Ø 12.7 mm (0.5") Thickness 6.35 mm (0.25") Parallelism < 10'' Substrate UV Fused Silica Surface Irregularity < λ/8 (633 nm, over 10 mm, Flatness) Clear Aperture 10 mm (Minimum) Surface Quality 10-5 scratch-dig (S1) Coating Features Multi Wavelength Narrowband Angle of Incidence 45° Group Delay Dispersion < 10 fs², 20 fs² (45°, 1030 nm, 515 nm, s-pol, p-pol) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Chamfer 0.1 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1064 nm (Center Wavelength)	> 99.5% (630 nm) > 99.95% (1064 nm) (s-pol) > 99.8% (1064 nm) (p-pol)	UV Fused Silica	In stock	$ 136.26
Product Code Manufacturer Optoman Wavelength Range 1064 nm (Center Wavelength) Center Wavelength 1064 nm Reflection Wavelength 630 nm Coating Reflective V-Coating (1064 nm) Reflective V-Coating (630 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.5% (630 nm) > 99.95% (1064 nm) (s-pol) > 99.8% (1064 nm) (p-pol) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 10'' Substrate UV Fused Silica Surface Irregularity < λ/6 (633 nm, Flatness) Clear Aperture > 20.32 mm Surface Quality 20-10 scratch-dig (S1, S2) Coating Features Multi Wavelength Narrowband Angle of Incidence 45° Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Nd:YAG Chamfer 0.4 - 1 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1010 - 1050 nm	> 99.9% (1010 - 1050 nm)	UV Fused Silica	In stock	$ 431.68
Product Code Manufacturer Optoman Wavelength Range 1010 - 1050 nm Center Wavelength 1010 - 1050 nm Reflection Wavelength 1010 - 1050 nm Coating BBHR (1010 - 1050 nm) Coating Method Ion Beam Sputtering (Front) Ion Beam Sputtering (Rear) Reflectance > 99.9% (1010 - 1050 nm) Diameter 50.8 mm (2") Dimensions Ø 50.8 mm (2") Thickness 9.52 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/8 (633 nm, Flatness) Clear Aperture > 40.64 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Broadband Angle of Incidence 0° Group Delay Dispersion < 15 fs² Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.3 J/cm² (500 fs, 10 kHz, 1030 nm) > 1.7 J/cm² (10 ps, 10 kHz, 1030 nm) Chamfer 0.2 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	980 - 1080 nm	> 99.9% (980 - 1080 nm)	UV Fused Silica	In stock	$ 795.20
Product Code Manufacturer Optoman Wavelength Range 980 - 1080 nm Center Wavelength 980 - 1080 nm Reflection Wavelength 980 - 1080 nm Coating BBHR (980 - 1080 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (980 - 1080 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 5 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/10 (8 mm, 633 nm, Flatness) Clear Aperture > 22.86 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Broadband Angle of Incidence 5° Group Delay Dispersion -250 fs² (±60 fs², 980 - 1080 nm) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Chamfer 0.2 - 0.3 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	980 - 1080 nm	> 99.9% (980 - 1080 nm)	UV Fused Silica	In stock	$ 249.92
Product Code Manufacturer Optoman Wavelength Range 980 - 1080 nm Center Wavelength 980 - 1080 nm Reflection Wavelength 980 - 1080 nm Coating BBHR (980 - 1080 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (980 - 1080 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 10'' Substrate UV Fused Silica Surface Irregularity < λ/10 (633 nm, over 10mm, Flatness) Clear Aperture > 22.86 mm Surface Quality 10-5 scratch-dig (S1) Coating Features Broadband Angle of Incidence 5° Group Delay Dispersion -350 fs² (±120 fs², 5°, 980 - 1080 nm) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Chamfer 0.2 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	500 - 530 nm	> 99.9% (500 - 530 nm)	UV Fused Silica	In stock	$ 96.56
Product Code Manufacturer Optoman Wavelength Range 500 - 530 nm Center Wavelength 500 - 530 nm Reflection Wavelength 500 - 530 nm Coating BBHR (500 - 530 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.9% (500 - 530 nm) Diameter 12.7 mm (0.5") Dimensions Ø 12.7 mm (0.5") Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/8 (633 nm, Flatness) Clear Aperture > 10.16 mm Surface Quality 10-5 scratch-dig (S1) Coating Features Broadband Angle of Incidence 0° Group Delay Dispersion < 10 fs² Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.12 J/cm² (500 fs, 10 kHz, 515 nm) > 0.7 J/cm² (10 ps, 10 kHz, 515 nm) Chamfer 0.1 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1030 nm (Center Wavelength)	> 99.995% (1030 nm)	Fused Silica	In stock	$ 397.60
Product Code Manufacturer Optoman Wavelength Range 1030 nm (Center Wavelength) Center Wavelength 1030 nm Reflection Wavelength 1030 nm Coating Reflective V-Coating (1030 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.995% (1030 nm) Diameter 38.1 mm Dimensions Ø 38.1 mm Thickness 12.7 mm (0.5") Parallelism < 2' Substrate Fused Silica Surface Irregularity < λ/4 (633 nm, Flatness) Clear Aperture 25 mm Surface Quality 10-5 scratch-dig (15 mm) 20-10 scratch-dig (25 mm) < 60-40 scratch-dig (Output Face) Coating Features Narrowband Angle of Incidence 0° Group Delay Dispersion < 40 fs² (0°, 960 - 1110 nm, s-pol, Reflection) Thickness Tolerance ±0.15 mm Shape Round Diameter Tolerance +0/-0.1 mm Applications Ultrafast Laser Optics Chamfer 0.3 mm (45°) Chamfer Tolerance ±0.1 mm Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1010 - 1050 nm	> 99.95% (1010 - 1050 nm) (s-pol) > 99.9% (1010 - 1050 nm) (p-pol)	UV Fused Silica	In stock	$ 266.96
Product Code Manufacturer Optoman Wavelength Range 1010 - 1050 nm Center Wavelength 1010 - 1050 nm Coating BBHR (1010 - 1050 nm) Coating Method Ion Beam Sputtering (Front) Ion Beam Sputtering (Rear) Reflectance > 99.95% (1010 - 1050 nm) (s-pol) > 99.9% (1010 - 1050 nm) (p-pol) Diameter 30 mm Dimensions Ø 30 mm Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/4 (633 nm, Flatness) < λ/10 (Flatness) Clear Aperture 20 mm (Minimum) Surface Quality 20-10 scratch-dig (S1) 60-40 scratch-dig (S2) Coating Features Broadband Angle of Incidence 45° Group Delay Dispersion < 10 fs² (s-pol) < 20 fs² (p-pol) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.3 J/cm² (100 fs, 100 kHz, 1030 nm) > 0.7 J/cm² (0.2 mm, 800 fs, 100 kHz, 1030 nm) Chamfer 0.2 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1010 - 1050 nm	> 99.95% (1010 - 1050 nm) (s-pol) > 99.9% (1010 - 1050 nm) (p-pol)	UV Fused Silica	In stock	$ 221.52
Product Code Manufacturer Optoman Wavelength Range 1010 - 1050 nm Center Wavelength 1010 - 1050 nm Coating BBHR (1010 - 1050 nm) Coating Method Ion Beam Sputtering (Front) Ion Beam Sputtering (Rear) Reflectance > 99.95% (1010 - 1050 nm) (s-pol) > 99.9% (1010 - 1050 nm) (p-pol) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/10 (633 nm, Flatness) Clear Aperture 20 mm (Minimum) Surface Quality 10-5 scratch-dig (S1) Coating Features Broadband Angle of Incidence 45° Group Delay Dispersion < 10 fs² (s-pol) < 20 fs² (p-pol) Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Damage Threshold Pulsed > 0.7 J/cm² (500 fs, 10 kHz, 1030 nm, p-pol) > 1 J/cm² (500 fs, 10 kHz, 1030 nm, s-pol) > 3 J/cm² (10 ps, 10 kHz, 1030 nm, p-pol) > 5 J/cm² (10 ps, 10 kHz, 1030 nm, s-pol) Chamfer 0.1 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	257 nm (Center Wavelength)	> 99.5% (257 nm) (s-pol) > 99.2% (257 nm) (p-pol)	UV Fused Silica	In stock	$ 198.80
Product Code Manufacturer Optoman Wavelength Range 257 nm (Center Wavelength) Center Wavelength 257 nm Coating Reflective V-Coating (257 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.5% (257 nm) (s-pol) > 99.2% (257 nm) (p-pol) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25") Parallelism < 5' Substrate UV Fused Silica Surface Irregularity < λ/8 (5 mm, 633 nm, Flatness) Clear Aperture 20 mm (Minimum) Surface Quality 20-10 scratch-dig (S1, S2) Coating Features Narrowband Angle of Incidence 45° Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Yb:KGW, Yb:KYW, Yb:YAG Applications Ultrafast Laser Optics Chamfer 0.2 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	635 - 655 nm	> 99.5% (2940 nm) > 95% (515 - 532 nm, 635 - 655 nm)	UV Fused Silica	In stock	$ 113.55
Product Code Manufacturer Optoman Wavelength Range 635 - 655 nm Center Wavelength 635 - 655 nm Reflection Wavelength 2940 nm 515 - 532 nm 635 - 655 nm Coating BBHR (635 - 655 nm) Reflective V-Coating (2940 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99.5% (2940 nm) > 95% (515 - 532 nm, 635 - 655 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 3.05 mm Parallelism < 5' Substrate UV Fused Silica Clear Aperture 23 mm Surface Quality 20-10 scratch-dig (S1) Coating Features Broadband, Multi Wavelength, Narrowband Angle of Incidence 45°, 52.5° Thickness Tolerance ±0.1 mm Shape Round Diameter Tolerance +0/-0.1 mm Chamfer 0.3 - 0.5 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
Round Mirror	1064 nm (Center Wavelength)	> 99% (1064 nm) > 98% (532 nm)	UV Fused Silica	In stock	$ 171.46
Product Code Manufacturer Optoman Wavelength Range 1064 nm (Center Wavelength) Center Wavelength 1064 nm Reflection Wavelength 1064 nm, 532 nm Transmission Wavelength 635 nm, 650 nm Coating AR/Transmissive V-Coating (635 nm) AR/Transmissive V-Coating (650 nm) Reflective V-Coating (1064 nm) Reflective V-Coating (532 nm) Uncoated (Rear) Coating Method Ion Beam Sputtering (Front) Reflectance > 99% (1064 nm) > 98% (532 nm) Transmittance 60% (635 nm) 60% (650 nm) Diameter 25 mm Dimensions Ø 25 mm Thickness 3.1 mm Parallelism < 5' Substrate UV Fused Silica Surface Irregularity λ/2 (633 nm, over 17 mm, Flatness) λ/10 (633 nm) Clear Aperture 20 mm Surface Quality 20-10 scratch-dig (S1, S2) Coating Features Multi Wavelength Narrowband Angle of Incidence 45° Thickness Tolerance ±0.2 mm Shape Round Diameter Tolerance +0/-0.1 mm Laser Type Nd:YAG Chamfer 0.2 - 0.4 mm (45°) Supplier Location Lithuania See product details More from OPTOSHOP
