Detection Devices

Detection devices are an essential subset of the entire line of photonics products that encompass devices that are used for detecting the characteristics of light in the UV, VIS, NIR, and IR spectral ranges.

Product	Active Area	Sensing Area	Frame Rate	Availability	Price (USD)
CMOS Camera	28.14 mm²	6.7 x 4.2 mm	126 FPS	In stock	$ 423.36
Product Code Manufacturer Allied Vision Dimensions 33 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 65 g Operating Temperature -20 to 65 °C Power Consumption 2.8 W Active Area 28.14 mm² Sensing Area 6.7 x 4.2 mm Frame Rate 126 FPS Resolution (Pixels) 1936 x 1216 Mega-pixels 2.35 Sensor IMX392 Image Sensor Format 1/2.3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount M12x0.5, S-Mount Exposure Time 25 μs - 10 s Dynamic Range 72 dB Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor Sony IMX392 Model Number 1800 U-240m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	146.2455 mm²	14.13 x 10.35 mm	8 FPS	In stock	$ 2311.20
Product Code Manufacturer Basler Dimensions 50 x 40 x 30 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 90 g Operating Temperature 0 - 50 °C Power Consumption 2.7 W (External Power Supply) 3.2 W (PoE) Active Area 146.2455 mm² Sensing Area 14.13 x 10.35 mm Frame Rate 8 FPS Resolution (Pixels) 4096 x 3000 Mega-pixels 12 Sensor IMX304 Image Sensor Format 1.1" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Hardware Trigger Programmable via Camera API GPIOs 1 opto-coupled input line 1 opto-coupled output line 1 general purpose I/O (GPIO) line Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #68-466 Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX304 Model Number AcA4112-8gc Machine Vision Standard GigE Vision, GenICam GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics

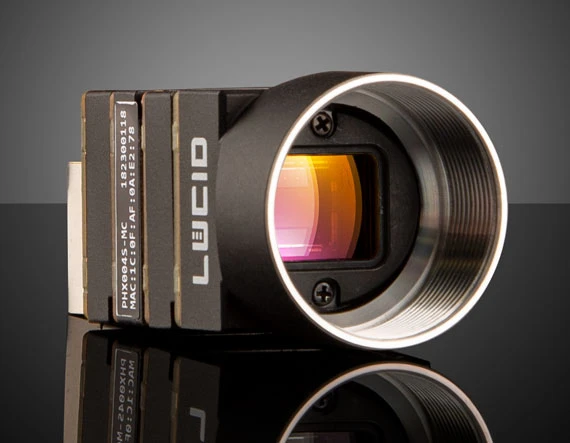

CMOS Color Camera	115.0188 mm²	13.13 x 8.76 mm	6 FPS	In stock	$ 615.00
Product Code Manufacturer Lucid Vision Labs Dimensions 28 x 28 x 28.4 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 39 g Operating Temperature -20 to 55 °C Power Consumption 3 W (External Power Supply) 3.5 W (PoE) Active Area 115.0188 mm² Sensing Area 13.13 x 8.76 mm Frame Rate 6 FPS Resolution (Pixels) 5472 x 3648 Mega-pixels 20 Sensor IMX183 Image Sensor Format 1" Pixel Size 2.4 x 2.4 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 30 μs - 10 s Dynamic Range 71.76 dB Shutter Type Rolling Bit Depth 12 bit Scanning Method Progressive Scan Housing Partial Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX183 Model Number PHX200S-CC Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin JST Interface Port Orientation Back Panel Camera Family PhoenixTM Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	121.18 mm²	14.6 x 8.3 mm	7 FPS	In stock	$ 1711.80
Product Code Manufacturer Basler Dimensions 48.9 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight < 100 g Operating Temperature -10 to 60 °C Power Consumption 3.5 W Active Area 121.18 mm² Sensing Area 14.6 x 8.3 mm Frame Rate 7 FPS Resolution (Pixels) 5320 x 3032 Mega-pixels 16.1 Sensor IMX542 Image Sensor Format 1.1" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 70.9 dB Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 2 general purpose I/O (GPIO) lines Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #16-644 Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX542 Model Number A2A5320-7gmBAS Machine Vision Standard GigE Vision 2, GenICam GPIO Connector Type 6-pin M8 Interface Port Orientation Back Panel Camera Family Ace2 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	30.21 mm²	6.14 x 4.92 mm	150 FPS	In stock	$ 1970.00
Product Code Manufacturer Pixelink Dimensions 55 x 38.5 x 27 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 35.8 g Key Features Autofocus Operating Temperature 0 - 50 °C Active Area 30.21 mm² Sensing Area 6.14 x 4.92 mm Frame Rate 150 FPS Resolution (Pixels) 1280 x 1024 Mega-pixels 1.3 Image Sensor Format 1/2" Pixel Size 4.8 x 4.8 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 1 μs - 4.33 s Dynamic Range 53 dB Shutter Type Global Bit Depth 8 bit, 10 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter GPIOs 1 opto-isolated trigger input 1 opto-isolated output 2 non-isolated outputs 1 non-isolated input Video Output USB 3 Power Supply Power over USB Storage Temperature -45 to 85 °C Imaging Sensor ON Semi VITA 1300 Model Number PL-D721-AF-ED Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family PL-D Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	0.8 mm²	-	-	In stock	$ 32.25
Product Code Wavelength Range 350 - 1100 nm 200 - 1100 nm Applications Low Light Levels Key Features UV Enhanced Response Operating Temperature -20 to 60 °C Active Area 0.8 mm² Sensor Type Silicon Detection Wavelength Region UV, Visible, Near IR Package TO-5 Rise Time 200 ns (0V, 50 Ω, 254 nm) Capacitance 60 pF (0V) Noise Equivalent Power 6.4 × 10^-14 W/Hz^1/2 Specific Detectivity 1.4 × 10¹² cmHz^1/2/W (0V, 254 nm) Peak Response Wavelength 850 nm Shunt Resistance 500 MΩ (-10 mV) Photosensitivity 0.14 A/W (254 nm) Model Number UV-001 Supplier Location New Jersey, USA See product details More from Edmund Optics

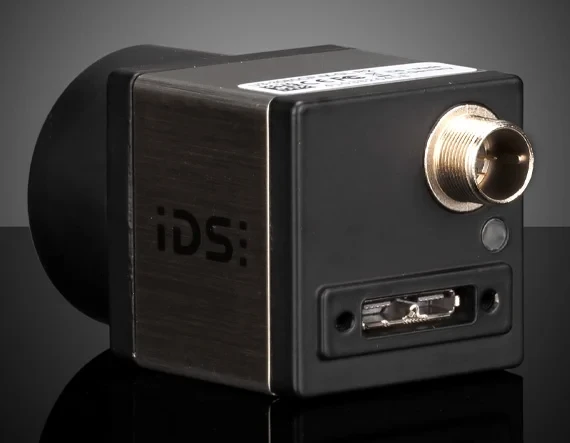

CMOS Camera	11.06 mm²	3.84 x 2.88 mm	396 FPS	In stock	$ 588.60
Product Code Manufacturer IDS Imaging Dimensions 29 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 52 g Operating Temperature 0 - 55 °C Power Consumption 1.7 - 3.9 W Active Area 11.06 mm² Sensing Area 3.84 x 2.88 mm Frame Rate 396 FPS Resolution (Pixels) 800 x 600 Mega-pixels 0.5 Sensor onsemi Image Sensor Format 1/3.6" Pixel Size 4.8 x 4.8 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 35 μs - 300 ms Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Output Supply Voltage, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 60 °C Imaging Sensor OnSemi Python 500 Model Number U3-3130CP-M-GL Rev.2.2 Machine Vision Standard USB3 Vision v1.1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family UEye CP Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	12.96 mm²	3.6 x 3.6 mm	-	In stock	$ 98.50
Product Code Wavelength Range 980 nm (Peak Sensitivity) Key Features DUV Operating Temperature -20 to 60 °C Active Area 12.96 mm² Sensing Area 3.6 x 3.6 mm Sensor Type Silicon Detection Wavelength Region Near IR Package TO-5 Rise Time 500 ns (0V, 1 kΩ) Capacitance 150 pF (0V) Noise Equivalent Power 4.1 × 10^-14 W/Hz^1/2 (0V, 200 nm) Specific Detectivity 8.780488 × 10¹² cmHz^1/2/W (Calculated) Peak Response Wavelength 980 nm Reverse Voltage 5 V (Maximum) Shunt Resistance 200 MΩ (-10 mV, Minimum) 800 MΩ (-10 mV, Typical) Photosensitivity 0.34 A/W (633 nm) 0.12 A/W (200 nm) 0.5 A/W (980 nm) Storage Temperature -55 to 80 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	18.5381 mm²	4.97 x 3.73 mm	77 FPS	In stock	$ 412.00
Product Code Manufacturer Lucid Vision Labs Dimensions 29 x 29 x 45 mm (Excludes Connectors and Lens Mount) Interface GigE, M12 Wavelength Range 400 - 780 nm (Inferred) Weight 67 g Operating Temperature -20 to 55 °C Power Consumption 2.5 W (External Power Supply) 3.1 W (PoE) Active Area 18.5381 mm² Sensing Area 4.97 x 3.73 mm Frame Rate 77 FPS Resolution (Pixels) 1440 x 1080 Mega-pixels 1.6 Sensor IMX273 Image Sensor Format 1/2.9" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 30 μs - 10 s Dynamic Range 71.29 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX273 Model Number TRI016S-CC Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin M8 Interface Port Orientation Back Panel Camera Family TritonTM Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	36.9018 mm²	7.41 x 4.98 mm	54 FPS	In stock	$ 366.12
Product Code Manufacturer IDS Imaging Dimensions 47 x 46 x 25 mm (Excludes Connectors and Lens Mount) Interface USB 3.0, USB Type-C Wavelength Range 400 - 780 nm (Inferred) Weight 36 g Operating Temperature 0 - 55 °C Power Consumption 1 - 1.5 W Active Area 36.9018 mm² Sensing Area 7.41 x 4.98 mm Frame Rate 54 FPS Resolution (Pixels) 3088 x 2076 Mega-pixels 6.41 Sensor IMX178 Image Sensor Format 1/1.8" Pixel Size 2.4 x 2.4 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount M12x0.5, S-Mount Exposure Time 14 μs - 1 s Shutter Type Rolling Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX178 Model Number U3-3886LE-M-GL Rev.1.2 Machine Vision Standard USB3 Vision v1.1 Interface Port Orientation Back Back (Right Angle) Camera Family UEye LE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	17.28 mm²	4.8 x 3.6 mm	40 FPS	In stock	$ 244.08
Product Code Manufacturer IDS Imaging Dimensions 32.5 x 32.5 x 14 mm Wavelength Range 400 - 780 nm (Inferred) Weight 17 g Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Frame Rate 40 FPS Resolution (Pixels) 2592 x 1960 Mega-pixels 5.08 Sensor IMX675 Image Sensor Format 1/3" Pixel Size 2 x 2 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Shutter Type Rolling Scanning Method Progressive Scan Imaging Sensor Sony IMX675 Model Number U3-34F4XLS Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	40.5666 mm²	7.27 x 5.58 mm	131 FPS	In stock	$ 781.87
Product Code Manufacturer FLIR Dimensions 29 x 29 x 39 mm (Excludes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 53 g Operating Temperature 0 - 50 °C Power Consumption 4.2 W Active Area 40.5666 mm² Sensing Area 7.27 x 5.58 mm Frame Rate 131 FPS Resolution (Pixels) 1616 x 1240 Mega-pixels 2 Sensor IMX430 Image Sensor Format 1/1.7" Pixel Size 4.5 x 4.5 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 11 μs - 30 s Dynamic Range 70.95 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 240.0 MB GPIOs 1 opto-isolated input 1 opto-isolated output 1 non-isolated bi-directional 1 non-isolated input Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO with #88-063 Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX430 Model Number BFS-U3-19S4M-C Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Blackfly® S Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	11.31 mm²	3.9 x 2.9 mm	115 FPS	In stock	$ 312.12
Product Code Manufacturer Allied Vision Dimensions 33 x 32 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 65 g Operating Temperature 5 - 65 °C Power Consumption 1.5 W Active Area 11.31 mm² Sensing Area 3.9 x 2.9 mm Frame Rate 115 FPS Resolution (Pixels) 808 x 608 Mega-pixels 0.5 Image Sensor Format 1/3.6" Pixel Size 4.8 x 4.8 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount M12x0.5, S-Mount Exposure Time 64 μs - 10 s Shutter Type Global Bit Depth 8 bit, 10 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor ON Semi PYTHON 480 Model Number 1800 U-050c Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	17.28 mm²	4.8 x 3.6 mm	230 FPS	Contact Supplier	$ 536.76
Product Code Manufacturer IDS Imaging Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Frame Rate 230 FPS Resolution (Pixels) 1456 x 1088 Mega-pixels 1.5 Sensor IMX273 Image Sensor Format 1/3" Pixel Size 3.45 x 3.45 μm Lens Mount S-Mount Shutter Type Global Imaging Sensor Sony IMX273 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	27.06 mm²	6.6 x 4.1 mm	160 FPS	In stock	$ 533.52
Product Code Manufacturer Basler Dimensions 36.3 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight < 90 g Operating Temperature -10 to 60 °C Power Consumption 4.3 W Active Area 27.06 mm² Sensing Area 6.6 x 4.1 mm Frame Rate 160 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2 Sensor IMX392 Image Sensor Format 1/2.3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 71.7 dB Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 2 general purpose I/O (GPIO) lines Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX392 Model Number A2A1920-160umPRO Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 6-pin M8 Interface Port Orientation Back Panel Camera Family Ace2 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	60.265 mm²	8.5 x 7.09 mm	121 FPS	In stock	$ 1740.00
Product Code Manufacturer Teledyne Dalsa Dimensions 59 x 44 x 42.6 mm (Includes Connectors and Lens Mount) Interface 5GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 124 g Operating Temperature -20 to 65 °C Power Consumption 9.4 - 9.6 W Active Area 60.265 mm² Sensing Area 8.5 x 7.09 mm Frame Rate 121 FPS Resolution (Pixels) 2464 x 2056 Mega-pixels 5.1 Sensor IMX250 Image Sensor Format 2/3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 76.46 dB Shutter Type Global Bit Depth 8 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), PTP (IEEE 1588), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 450.0 MB Exposure Timing Mode Automatic, Programmable, via External Trigger GPIOs 2 digital input, 3 digital output Video Output 5GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO Storage Temperature -40 to 80 °C Imaging Sensor Sony IMX250 Model Number Nano-5G-M2450 Machine Vision Standard GigE Vision v2 GPIO Connector Type 10-pin Samtec Interface Port Orientation Back Panel Camera Family Genie Nano-5GigE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	37.63 mm²	7.1 x 5.3 mm	53 FPS	In stock	$ 599.40
Product Code Manufacturer Allied Vision Dimensions 38 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 60 g Operating Temperature -20 to 65 °C Power Consumption 2.2 W Active Area 37.63 mm² Sensing Area 7.1 x 5.3 mm Frame Rate 53 FPS Resolution (Pixels) 2064 x 1544 Mega-pixels 3.2 Sensor IMX265 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 175 μs - 10 s Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor Sony IMX265 Model Number 1800 U-319c Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	37.63 mm²	7.1 x 5.3 mm	37.6 FPS	In stock	$ 1447.20
Product Code Manufacturer Allied Vision Dimensions 71 x 44 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 200 g Operating Temperature 5 - 45 °C Power Consumption 2.7 W (External Power Supply) 3.1 W (PoE) Active Area 37.63 mm² Sensing Area 7.1 x 5.3 mm Frame Rate 37.6 FPS Resolution (Pixels) 2064 x 1544 Mega-pixels 3.2 Sensor IMX265 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 72.2 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Exposure Timing Mode Via Software GPIOs 2 opto-isolated inputs 2 opto-isolated outputs Video Output GigE (PoE) Power Supply Power over Ethernet (PoE), via GPIO, or with external power supply Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX265 Model Number Manta G-319C Machine Vision Standard GigE Vision v1.2 GenICam SFNC V1.2.1 GPIO Connector Type 12-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Manta PoE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	146.2455 mm²	14.13 x 10.35 mm	23 FPS	In stock	$ 2805.00
Product Code Manufacturer Pixelink Dimensions 55 x 38.5 x 27 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 89 g Operating Temperature 0 - 50 °C Active Area 146.2455 mm² Sensing Area 14.13 x 10.35 mm Frame Rate 23 FPS Resolution (Pixels) 4096 x 3000 Mega-pixels 12 Sensor IMX304 Image Sensor Format 1.1" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 28.2 μs - 120 s Dynamic Range 70 dB Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter GPIOs 1 opto-isolated trigger input 1 opto-isolated output 2 non-isolated outputs 1 non-isolated input Video Output USB 3 Power Supply Power over USB Storage Temperature -45 to 85 °C Imaging Sensor Sony IMX304 Model Number PL-D7912CU-T Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Side Panel Camera Family PL-D Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	38.76 mm²	6.8 x 5.7 mm	66 FPS	In stock	$ 788.40
Product Code Manufacturer Allied Vision Dimensions 33 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 65 g Operating Temperature -20 to 65 °C Power Consumption 3.2 W Active Area 38.76 mm² Sensing Area 6.8 x 5.7 mm Frame Rate 66 FPS Resolution (Pixels) 2464 x 2064 Mega-pixels 5.1 Sensor IMX547 Image Sensor Format 1/1.8" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount M12x0.5, S-Mount Exposure Time 164 μs - 10 s (450 MBps) 163 μs - 10 s (200 MBps) Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor Sony IMX547 Model Number 1800 U-511m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	37.418 mm²	7.06 x 5.3 mm	58 FPS	In stock	$ 599.40
Product Code Manufacturer IDS Imaging Dimensions 36 x 36 x 20 mm (Excludes Connectors and Lens Mount) Interface USB 3, USB Type-C Wavelength Range 400 - 780 nm (Inferred) Weight 20 g Key Features Autofocus, Board Level Operating Temperature 0 - 55 °C Power Consumption 1 - 2 W Active Area 37.418 mm² Sensing Area 7.06 x 5.3 mm Frame Rate 58 FPS Resolution (Pixels) 2048 x 1536 Mega-pixels 3.1 Sensor IMX265 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount, CS-Mount Exposure Time 25 μs - 1.9 s Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Board Level Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads No Mounting Threads/Tripod Adapter GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 2 TWI, 1 Voltage Output, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX265 Model Number U3-3274LE-M-GL-AF Rev.1.2 Machine Vision Standard USB3 Vision v1.1 GPIO Connector Type 10-pin Wuerth Interface Port Orientation Back Back (Right Angle) Camera Family UEye LE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	122.3 mm²	12.44 x 9.83 mm	22.7 FPS	In stock	$ 1045.00
Product Code Manufacturer Teledyne Dalsa Dimensions 40.6 x 29 x 44 mm (Includes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 46 g Operating Temperature -20 to 60 °C Power Consumption 3.6 - 4.6 W (External Power Supply) 4 - 4.9 W (PoE) Active Area 122.3 mm² Sensing Area 12.44 x 9.83 mm Frame Rate 22.7 FPS Resolution (Pixels) 2592 x 2048 Mega-pixels 5.3 Image Sensor Format 1" Pixel Size 4.8 x 4.8 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 62.1 dB Shutter Type Global Bit Depth 8 bit, 10 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), PTP (IEEE 1588), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 90.0 MB Exposure Timing Mode Programmable via External Trigger GPIOs 2 digital input, 2 digital output Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO Storage Temperature -40 to 80 °C Imaging Sensor ON Semi PYTHON 5000 Model Number Nano-C2590 Machine Vision Standard GigE Vision v1.2 GPIO Connector Type 10-pin Samtec Interface Port Orientation Back Panel Camera Family Genie Nano-1GigE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	92.66 mm²	11.3 x 8.2 mm	28 FPS	Contact Supplier	$ 1657.80
Product Code Manufacturer Allied Vision Dimensions 30 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 45 g Operating Temperature -20 to 65 °C Power Consumption 3.4 W Active Area 92.66 mm² Sensing Area 11.3 x 8.2 mm Frame Rate 28 FPS Resolution (Pixels) 4128 x 3008 Mega-pixels 12.4 Sensor IMX545 Image Sensor Format 1/1.1" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 160 μs - 10 s (450 MBps) 168 μs - 10 s (200 MBps) Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Partial Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor Sony IMX545 Model Number 1800 U-1242m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted InGaAs Photodiode	0.01131 mm² (0.12 mm)	Ø 120 μm	-	In stock	$ 98.50
Product Code Wavelength Range 900 - 1700 nm Active Area 0.01131 mm² (0.12 mm) Sensing Area Ø 120 μm Sensor Type InGaAs Detection Wavelength Region Short-Wave IR Near IR Active Area Diameter 0.12 mm Package TO-46 Rise Time 300 ps (5 V) Capacitance 2 pF (5 V, Typical) Noise Equivalent Power 4.5 × 10^-15 W/Hz^1/2 Specific Detectivity 2.3633 × 10¹² cmHz^1/2/W (Calculated) Reverse Voltage 20 V (Maximum) Dark Current 50 pA (5 V, Typical) 2 nA (5 V, Maximum) Maximum Forward Current 5 mA Maximum Reverse Current 2 mA Photosensitivity 0.9 A/W (1550 nm, Minimum) 0.95 A/W (1550 nm, Typical) 0.8 A/W (1310 nm, Minimum) 0.9 A/W (1310 nm, Typical) Fall Time 300 ps (5 V) Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	142.956 mm²	14.44 x 9.9 mm	51 FPS	In stock	$ 2566.46
Product Code Manufacturer FLIR Dimensions 29 x 29 x 39 mm (Excludes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 53 g Operating Temperature 0 - 50 °C Power Consumption 4.2 W Active Area 142.956 mm² Sensing Area 14.44 x 9.9 mm Frame Rate 51 FPS Resolution (Pixels) 3208 x 2200 Mega-pixels 7.1 Sensor IMX428 Image Sensor Format 1" Pixel Size 4.5 x 4.5 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 9 μs - 30 s Dynamic Range 70.72 dB (HCG) 71.86 dB (LCG) Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 240.0 MB GPIOs 1 opto-isolated input 1 opto-isolated output 1 non-isolated bi-directional 1 non-isolated input Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO with #88-063 Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX428 Model Number BFS-U3-70S7M-C Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Blackfly® S Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	27.41 mm²	6.62 x 4.14 mm	52 FPS	Contact Supplier	$ 387.00
Product Code Manufacturer Lucid Vision Labs Dimensions 24 x 24 x 27.35 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 30 g Operating Temperature -20 to 55 °C Power Consumption 2.5 W (External Power Supply) 3.1 W (PoE) Active Area 27.41 mm² Sensing Area 6.62 x 4.14 mm Frame Rate 52 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2.3 Sensor IMX392 Image Sensor Format 1/2.3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount NF-Mount Exposure Time 30 μs - 10 s Dynamic Range 71.47 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Partial Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX392 Model Number PHX023S-CNF Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin JST Interface Port Orientation Back Panel Camera Family PhoenixTM Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	24.396 mm²	5.7 x 4.28 mm	14 FPS	In stock	$ 599.40
Product Code Manufacturer Basler Dimensions 42 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 90 g Operating Temperature 0 - 50 °C Power Consumption 2.2 W (External Power Supply) 2.7 W (PoE) Active Area 24.396 mm² Sensing Area 5.7 x 4.28 mm Frame Rate 14 FPS Resolution (Pixels) 2592 x 1944 Mega-pixels 5 Image Sensor Format 1/2.5" Pixel Size 2.2 x 2.2 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 60.3 dB Shutter Type Rolling Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 1 opto-coupled output line 1 general purpose I/O (GPIO) line Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #68-466 Storage Temperature -20 to 80 °C Imaging Sensor ON Semi MT9P031 Model Number AcA2500-14gm Machine Vision Standard GigE Vision GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	37.47 mm²	7.07 x 5.3 mm	120 FPS	Contact Supplier	$ 1090.80
Product Code Manufacturer Basler Dimensions 29.3 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 80 g Operating Temperature 0 - 50 °C Power Consumption 3.1 W Active Area 37.47 mm² Sensing Area 7.07 x 5.3 mm Frame Rate 120 FPS Resolution (Pixels) 2048 x 1536 Mega-pixels 3 Sensor IMX252 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 73.4 dB Shutter Type Global Bit Depth 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Hardware Trigger Programmable via Camera API GPIOs 1 opto-coupled input line 1 opto-coupled output line 2 general purpose I/O (GPIO) lines Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX252 Model Number AcA2040-120um Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	38.205 mm²	6.75 x 5.66 mm	79 FPS	In stock	$ 712.80
Product Code Manufacturer Allied Vision Dimensions 29 x 29 x 33 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 65 g Operating Temperature -20 to 85 °C Power Consumption 3 W Active Area 38.205 mm² Sensing Area 6.75 x 5.66 mm Frame Rate 79 FPS Resolution (Pixels) 2464 x 2064 Mega-pixels 5.1 Sensor IMX548 Image Sensor Format 1/1.8" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount M12x0.5, S-Mount Exposure Time 14 μs - 10 s Dynamic Range 5 - 65 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Imaging Sensor Sony IMX548 Model Number Alvium 1800 U-510m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type USB3 Vision v1, GenICam Interface Port Orientation Back Panel Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	37.47 mm²	7.07 x 5.3 mm	38 FPS	In stock	$ 530.00
Product Code Manufacturer Lucid Vision Labs Dimensions 29 x 29 x 45 mm (Excludes Connectors and Lens Mount) Interface GigE, M12 Wavelength Range 400 - 780 nm (Inferred) Weight 67 g Operating Temperature -20 to 55 °C Power Consumption 2.5 W (External Power Supply) 3.1 W (PoE) Active Area 37.47 mm² Sensing Area 7.07 x 5.3 mm Frame Rate 38 FPS Resolution (Pixels) 2048 x 1536 Mega-pixels 3.2 Sensor IMX265 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 30 μs - 10 s Dynamic Range 71.78 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX265 Model Number TRI032S-MC Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin M8 Interface Port Orientation Back Panel Camera Family TritonTM Supplier Location New Jersey, USA See product details More from Edmund Optics

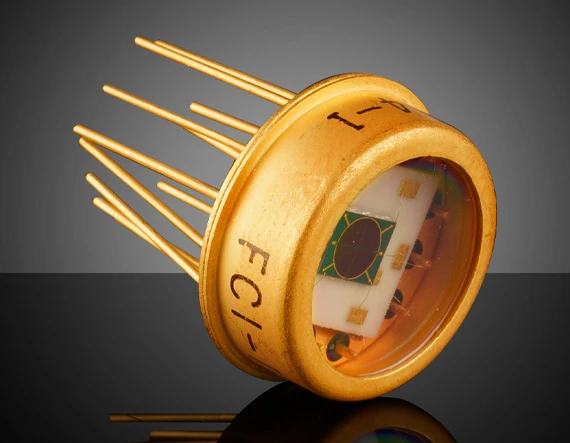

Segmented InGaAs Photodiode	7.069 mm² (3 mm)	Ø 3 mm	-	In stock	$ 605.00
Product Code Wavelength Range 900 - 1700 nm Operating Temperature -40 to 75 °C Active Area 7.069 mm² (3 mm) Sensing Area Ø 3 mm Sensor Type Segmented InGaAs Detection Wavelength Region Short-Wave IR Near IR Active Area Diameter 3 mm Package TO-8 Rise Time 24 ns (5 V, Typical) Capacitance 225 pF (5 V) Noise Equivalent Power 2.5 × 10^-14 W/Hz^1/2 (1550 nm) Specific Detectivity 1.063504 × 10¹³ cmHz^1/2/W (Calculated) Peak Response Wavelength 1550 nm Reverse Voltage 10 V (Maximum) Dark Current 100 nA (5 V, Maximum) 2 nA (5 V, Typical) Element Gap 45 μm Photosensitivity 0.9 A/W (1550 nm, Minimum) 0.95 A/W (1550 nm, Typical) 0.85 A/W (1310 nm, Minimum) 0.9 A/W (1310 nm, Typical) Fall Time 24 ns (5 V, Typical) Storage Temperature -55 to 125 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	38.76 mm²	6.8 x 5.7 mm	66 FPS	In stock	$ 799.20
Product Code Manufacturer Allied Vision Dimensions 33 x 32 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 70 g Operating Temperature 5 - 65 °C Power Consumption 3.2 W Active Area 38.76 mm² Sensing Area 6.8 x 5.7 mm Frame Rate 66 FPS Resolution (Pixels) 2464 x 2064 Mega-pixels 5.1 Sensor IMX547 Image Sensor Format 1/1.8" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount CS-Mount Exposure Time 164 μs - 10 s (450 MBps) 163 μs - 10 s (200 MBps) Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX547 Model Number 1800 U-511c Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	57.4 mm²	8.71 x 6.59 mm	95 FPS	In stock	$ 853.50
Product Code Manufacturer FLIR Dimensions 29 x 29 x 39 mm (Excludes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 53 g Operating Temperature 0 - 50 °C Power Consumption 4.2 W Active Area 57.4 mm² Sensing Area 8.71 x 6.59 mm Frame Rate 95 FPS Resolution (Pixels) 1936 x 1464 Mega-pixels 2.8 Sensor IMX429 Image Sensor Format 2/3" Pixel Size 4.5 x 4.5 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 12 μs - 30 s Dynamic Range 70.95 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 240.0 MB GPIOs 1 opto-isolated input 1 opto-isolated output 1 non-isolated bi-directional 1 non-isolated input Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO with #88-063 Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX429 Model Number BFS-U3-27S5C-C Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Blackfly® S Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	79.0875 mm²	11.25 x 7.03 mm	47 FPS	In stock	$ 653.40
Product Code Manufacturer IDS Imaging Dimensions 29 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 47 g Operating Temperature 0 - 55 °C Power Consumption 1.6 - 2.8 W Active Area 79.0875 mm² Sensing Area 11.25 x 7.03 mm Frame Rate 47 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2.3 Sensor IMX249 Image Sensor Format 1/1.2" Pixel Size 5.86 x 5.86 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 31 μs - 2 s Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Output Supply Voltage, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 60 °C Imaging Sensor Sony IMX249 Model Number U3-3260CP-C-HQ Rev.2.2 Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family UEye+ CP Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	58.08 mm²	8.8 x 6.6 mm	144 FPS	In stock	$ 847.80
Product Code Manufacturer Allied Vision Dimensions 32 x 29 x 25 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 50 g Operating Temperature 5 - 65 °C Power Consumption 4 W Active Area 58.08 mm² Sensing Area 8.8 x 6.6 mm Frame Rate 144 FPS Resolution (Pixels) 1944 x 1472 Mega-pixels 2.91 Sensor IMX421 Image Sensor Format 2/3" Pixel Size 4.5 x 4.5 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount CS-Mount Exposure Time 16 μs - 10 s Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX421 Model Number 1800 U-291m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	153.8 mm²	12.4 x 12.4 mm	5.9 FPS	Contact Supplier	$ 3137.40
Product Code Manufacturer Allied Vision Dimensions 71 x 44 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 200 g Operating Temperature 5 - 45 °C Power Consumption 3.3 W (External Power Supply) 3.9 W (PoE) Active Area 153.8 mm² Sensing Area 12.4 x 12.4 mm Frame Rate 5.9 FPS Resolution (Pixels) 4512 x 4512 Mega-pixels 20.36 Sensor IMX541 Image Sensor Format 1.1" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 70.8 dB Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Exposure Timing Mode Via Software GPIOs 2 opto-isolated inputs 2 opto-isolated outputs Video Output GigE (PoE) Power Supply Power over Ethernet (PoE), via GPIO, or with external power supply Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX541 Model Number Manta G-2040B Machine Vision Standard GigE Vision v1.2 GenICam SFNC V1.2.1 GPIO Connector Type 12-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Manta PoE Supplier Location New Jersey, USA See product details More from Edmund Optics
CCD Camera	60.35 mm²	8.5 x 7.1 mm	23.7 FPS	In stock	$ 2683.80
Product Code Manufacturer Allied Vision Dimensions 70.5 x 53.3 x 33 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 211 g Operating Temperature -20 to 65 °C Power Consumption 3.4 W (External Power Supply) 4.2 W (PoE) Active Area 60.35 mm² Sensing Area 8.5 x 7.1 mm Frame Rate 23.7 FPS Resolution (Pixels) 2464 x 2056 Mega-pixels 5.1 Sensor IMX264 Image Sensor Format 2/3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 48 μs - 85.9 s Dynamic Range 71.7 dB Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB GPIOs 1 opto-isolated input 2 opto-isolated outputs 1 non-isolated input 2 non-isolated outputs Video Output GigE (PoE) Power Supply Power over Ethernet (PoE), via GPIO, or with external power supply Storage Temperature -20 to 70 °C Imaging Sensor Sony IMX264 Model Number GT 2460 B Machine Vision Standard GigE Vision V1.2 GenICam SFNC V1.2.1 GPIO Connector Type 12-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Prosilica GT Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	38.1976 mm²	7.18 x 5.32 mm	58 FPS	Contact Supplier	$ 536.76
Product Code Manufacturer IDS Imaging Active Area 38.1976 mm² Sensing Area 7.18 x 5.32 mm Frame Rate 58 FPS Resolution (Pixels) 2056 x 1542 Mega-pixels 3.17 Sensor IMX265 Image Sensor Format 1/1.8" Pixel Size 3.45 x 3.45 μm Lens Mount C-Mount Shutter Type Global Imaging Sensor Sony IMX265 Model Number U3-3274LE-VU Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	121.18 mm²	14.6 x 8.3 mm	34 FPS	In stock	$ 2500.20
Product Code Manufacturer Basler Dimensions 55.5 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface 5GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 100 g Operating Temperature -10 to 50 °C Power Consumption 5.8 W Active Area 121.18 mm² Sensing Area 14.6 x 8.3 mm Frame Rate 34 FPS Resolution (Pixels) 5320 x 3032 Mega-pixels 16.1 Sensor IMX542 Image Sensor Format 1.1" Pixel Size 2.74 x 2.74 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 70.9 dB Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 2 general purpose I/O (GPIO) lines Video Output 5GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #16-644 Storage Temperature -20 to 80 °C Imaging Sensor IMX542 Model Number A2A5320-34g5mBAS Machine Vision Standard GigE Vision V2, GenICam GPIO Connector Type 6-pin M8 Interface Port Orientation Back Panel Camera Family Ace2 Supplier Location New Jersey, USA See product details More from Edmund Optics
Segmented Si Photodiode	0.72 mm²	600 μm x 1.2 mm	-	In stock	$ 43.50
Product Code Wavelength Range 350 - 1100 nm Operating Temperature -40 to 100 °C Active Area 0.72 mm² Sensing Area 600 μm x 1.2 mm Sensor Type Silicon Detection Wavelength Region UV, Visible, Near IR Package TO-5 Rise Time 7 ns Capacitance 3 pF (-10 V) Noise Equivalent Power 6.2 × 10^-15 W/Hz^1/2 (-10 V, 970 nm) Specific Detectivity 1.368594 × 10¹³ cmHz^1/2/W (Calculated) Peak Response Wavelength 970 nm Reverse Voltage 30 V (Maximum) Dark Current 1 nA (-10 V, Maximum) 50 pA (-10 V, Typical) Element Gap 13 μm Photosensitivity 0.6 A/W (970 nm, Minimum) 0.65 A/W (970 nm, Typical) Model Number SPOT-2DMI Storage Temperature -55 to 125 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	27.06 mm²	6.6 x 4.1 mm	160 FPS	In stock	$ 567.00
Product Code Manufacturer Basler Dimensions 36.3 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight < 90 g Operating Temperature -10 to 60 °C Power Consumption 4.3 W Active Area 27.06 mm² Sensing Area 6.6 x 4.1 mm Frame Rate 160 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2 Sensor IMX392 Image Sensor Format 1/2.3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Shutter Type Global Bit Depth 8 bit, 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 2 general purpose I/O (GPIO) lines Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX392 Model Number A2A1920-160ucPRO Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 6-pin M8 Interface Port Orientation Back Panel Camera Family Ace2 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	79.0875 mm²	11.25 x 7.03 mm	50 FPS	In stock	$ 1279.80
Product Code Manufacturer Basler Dimensions 42 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 90 g Operating Temperature 0 - 50 °C Power Consumption 2.8 W (External Power Supply) 3 W (PoE) Active Area 79.0875 mm² Sensing Area 11.25 x 7.03 mm Frame Rate 50 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2.3 Sensor IMX174 Image Sensor Format 1/1.2" Pixel Size 5.86 x 5.86 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 73.5 dB Shutter Type Global Bit Depth 10 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 1 opto-coupled output line 1 general purpose I/O (GPIO) line Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #68-466 Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX174 Model Number AcA1920-50gm Machine Vision Standard GigE Vision GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	11.06 mm²	3.84 x 2.88 mm	396 FPS	In stock	$ 588.60
Product Code Manufacturer IDS Imaging Dimensions 29 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 52 g Operating Temperature 0 - 55 °C Power Consumption 1.7 - 3.9 W Active Area 11.06 mm² Sensing Area 3.84 x 2.88 mm Frame Rate 396 FPS Resolution (Pixels) 800 x 600 Mega-pixels 0.5 Sensor onsemi Image Sensor Format 1/3.6" Pixel Size 4.8 x 4.8 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 35 μs - 300 ms Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Output Supply Voltage, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 60 °C Imaging Sensor OnSemi Python 500 Model Number U3-3130CP-C-HQ Rev.2.2 Machine Vision Standard USB3 Vision v1.1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family UEye CP Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	100 mm²	-	-	In stock	$ 143.00
Product Code Applications AC Light Measurement High Light Levels Operating Temperature -10 to 60 °C Active Area 100 mm² Sensor Type Silicon Package BNC Rise Time 43 ns (-10 V, 50 Ω, 632 nm) Capacitance 1.5 nF (0V) 300 pF (10 V) Noise Equivalent Power 3.9 × 10^-14 W/Hz^1/2 Specific Detectivity 2.56 × 10¹³ cmHz^1/2/W (-10 V, 970 nm) Dark Current 2 nA (10 V) Diameter 24.76 mm (0.975", Outer) Photosensitivity 0.65 A/W (970 nm) Model Number PIN-10D Breakdown Voltage 30 V (Maximum) Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	17.28 mm²	4.8 x 3.6 mm	52 FPS	Contact Supplier	$ 412.56
Product Code Manufacturer Allied Vision Dimensions 33 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 60 g Operating Temperature -20 to 65 °C Power Consumption 1.3 W Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Frame Rate 52 FPS Resolution (Pixels) 1280 x 960 Mega-pixels 1.2 Image Sensor Format 1/3" Pixel Size 3.75 x 3.75 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 57 μs - 12 s Dynamic Range 63 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor ON Semi AR0135CS Model Number 1800 U-120c Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	59.74 mm²	8.45 x 7.07 mm	80.9 FPS	In stock	$ 1865.00
Product Code Manufacturer Pixelink Dimensions 55 x 38.5 x 27 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 89 g Operating Temperature 0 - 50 °C Active Area 59.74 mm² Sensing Area 8.45 x 7.07 mm Frame Rate 80.9 FPS Resolution (Pixels) 2448 x 2048 Mega-pixels 5.01 Sensor IMX250 Image Sensor Format 2/3" Pixel Size 3.45 x 3.45 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 20 μs - 120 s Dynamic Range 70 dB Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter GPIOs 1 opto-isolated trigger input 1 opto-isolated output 2 non-isolated outputs 1 non-isolated input Video Output USB 3 Power Supply Power over USB Storage Temperature -45 to 85 °C Imaging Sensor Sony IMX250 Model Number PL-D755CU-T Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Side Panel Camera Family PL-D Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	79.0875 mm²	11.25 x 7.03 mm	38.8 FPS	In stock	$ 555.00
Product Code Manufacturer Teledyne Dalsa Dimensions 40.6 x 29 x 44 mm (Includes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 46 g Operating Temperature -20 to 60 °C Power Consumption 3.6 - 4.6 W (External Power Supply) 4 - 4.9 W (PoE) Active Area 79.0875 mm² Sensing Area 11.25 x 7.03 mm Frame Rate 38.8 FPS Resolution (Pixels) 1920 x 1200 Mega-pixels 2.3 Sensor IMX249 Image Sensor Format 1/1.2" Pixel Size 5.86 x 5.86 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Dynamic Range 75.5 dB Shutter Type Global Bit Depth 8 bit, 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Free-Run, Hardware Trigger (GPIO), PTP (IEEE 1588), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 90.0 MB Exposure Timing Mode Programmable via External Trigger GPIOs 2 digital input, 2 digital output Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO Storage Temperature -40 to 80 °C Imaging Sensor Sony IMX249 Model Number Nano-C1920 Machine Vision Standard GigE Vision v1.2 GPIO Connector Type 10-pin Samtec Interface Port Orientation Back Panel Camera Family Genie Nano-1GigE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	17.7837 mm²	5.61 x 3.17 mm	135 FPS	In stock	$ 351.00
Product Code Manufacturer IDS Imaging Dimensions 36 x 36 x 20 mm (Excludes Connectors and Lens Mount) Interface USB 3.0, USB Type-C Wavelength Range 400 - 780 nm (Inferred) Weight 18 g Key Features Board Level Operating Temperature 0 - 55 °C Power Consumption 1 - 1.5 W Active Area 17.7837 mm² Sensing Area 5.61 x 3.17 mm Frame Rate 135 FPS Resolution (Pixels) 1936 x 1096 Mega-pixels 2.1 Sensor IMX290 Image Sensor Format 1/3" Pixel Size 2.9 x 2.9 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 11 μs - 1.7 s Shutter Type Rolling Bit Depth 12 bit Scanning Method Progressive Scan Housing Board Level Trigger Mode Hardware Trigger (GPIO) Software Trigger GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 2 TWI, 1 Voltage Output, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor Sony IMX290 Model Number U3-3864LE-C-HQ Rev.1.2 Machine Vision Standard USB3 Vision v1.1 GPIO Connector Type 10-pin Wuerth Interface Port Orientation Back Back (Right Angle) Camera Family UEye LE Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	38.1976 mm²	7.18 x 5.32 mm	54 FPS	Contact Supplier	$ 480.60
Product Code Manufacturer IDS Imaging Active Area 38.1976 mm² Sensing Area 7.18 x 5.32 mm Frame Rate 54 FPS Resolution (Pixels) 3088 x 2076 Mega-pixels 6.4 Sensor IMX178 Image Sensor Format 1/1.8" Pixel Size 2.4 x 2.4 μm Lens Mount C-Mount Shutter Type Rolling Imaging Sensor Sony IMX178 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	18.825 mm²	5.02 x 3.75 mm	291 FPS	Contact Supplier	$ 376.00
Product Code Manufacturer Lucid Vision Labs Dimensions 29 x 29 x 45 mm (Excludes Connectors and Lens Mount) Interface GigE, M12 Wavelength Range 400 - 780 nm (Inferred) Weight 67 g Operating Temperature -20 to 55 °C Power Consumption 2.5 W (External Power Supply) 3.1 W (PoE) Active Area 18.825 mm² Sensing Area 5.02 x 3.75 mm Frame Rate 291 FPS Resolution (Pixels) 728 x 544 Mega-pixels 0.4 Sensor IMX287 Image Sensor Format 1/2.9" Pixel Size 6.9 x 6.9 μm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Lens Mount C-Mount Exposure Time 30 μs - 10 s Dynamic Range 71.17 dB Shutter Type Global Bit Depth 12 bit Scanning Method Progressive Scan Housing Full Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX287 Model Number TRI004S-CC Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin M8 Interface Port Orientation Back Panel Camera Family TritonTM Supplier Location New Jersey, USA See product details More from Edmund Optics
