Detection Devices

Detection devices are an essential subset of the entire line of photonics products that encompass devices that are used for detecting the characteristics of light in the UV, VIS, NIR, and IR spectral ranges.

Product	Active Area	Sensing Area	Wavelength Range	Availability	Price (USD)

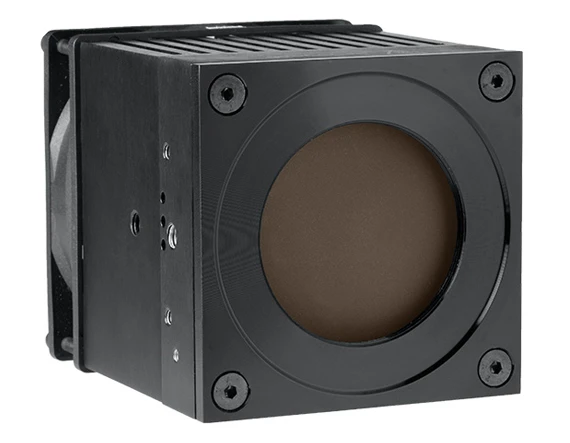

Thermopile Power Sensor	227.0 mm² (17 mm)	17 mm	190 - 20000 nm 190 - 10000 nm	In stock	$ 2244.16
Product Code Dimensions 76.2 x 76.2 x 74.7 mm Wavelength Range 190 - 20000 nm 190 - 10000 nm Weight 160 g Active Area 227.0 mm² (17 mm) Sensing Area 17 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR, Far IR Active Area Diameter 17 mm Maximum Incident Energy Density 1.1 J/cm² Maximum Optical Power 50 W Cooling System Heatsink Maximum Incident Power Density 1 × 10⁵ W/cm² Supplier Location New Jersey, USA See product details More from Edmund Optics

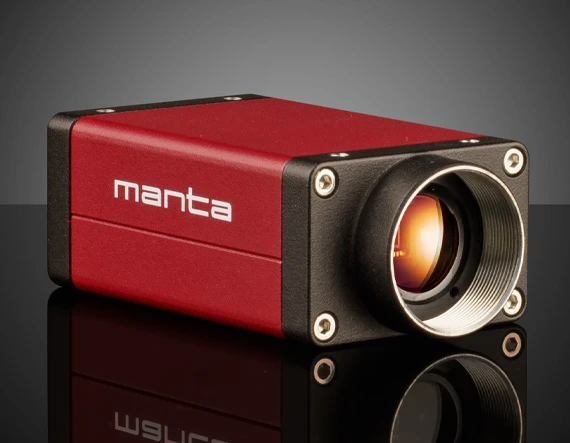

CMOS Camera	17.28 mm²	4.8 x 3.6 mm	400 - 780 nm (Inferred)	In stock	$ 389.88
Product Code Manufacturer Allied Vision Dimensions 33 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 60 g Operating Temperature -20 to 65 °C Power Consumption 1.3 W Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1280 x 960 Mega-pixels 1.2 Pixel Size 3.75 x 3.75 μm Shutter Type Global Frame Rate 52 FPS Image Sensor Format 1/3" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 10 bit, 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Exposure Time 57 μs - 10 s Dynamic Range 63 dB Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor ON Semi AR0135CS Model Number 1800 U-120m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics

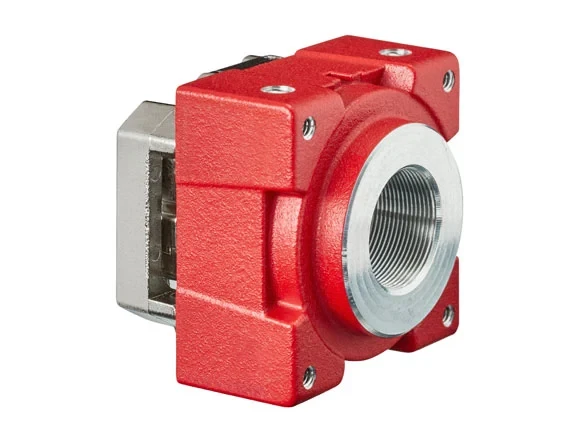

CMOS Camera	60.84 mm²	7.8 x 7.8 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 1080.00
Product Code Manufacturer Allied Vision Dimensions 30 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 45 g Operating Temperature -20 to 65 °C Power Consumption 3.3 W Active Area 60.84 mm² Sensing Area 7.8 x 7.8 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2848 x 2848 Mega-pixels 8.1 Pixel Size 2.74 x 2.74 μm Shutter Type Global Frame Rate 43 FPS Image Sensor Format 2/3" Lens Mount C-Mount Scanning Method Progressive Scan Housing Partial Bit Depth 8 bit, 10 bit, 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Sensor IMX546 Exposure Time 168 μs - 10 s (450 MBps) 160 μs - 10 s (200 MBps) Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor Sony IMX546 Model Number 1800 U-811m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
Thermopile Power Sensor	283.5 mm² (19 mm)	Ø 19 mm	250 - 10600 nm 10600 nm (Calibration)	In stock	$ 1825.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 250 - 10600 nm 10600 nm (Calibration) Minimum Optical Power 10 mW Active Area 283.5 mm² (19 mm) Sensing Area Ø 19 mm Sensor Type Quad Element Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 19 mm Maximum Incident Energy Density 0.6 J/cm² (10 ns, 1064 nm) Maximum Optical Power 3 W Cooling System Air Maximum Incident Power Density 6000 W/cm² Power Measurement 10 mW - 3 W Power Range 10 mW - 3 W Model Number LM-3 Coherent Part Number: 1168339 Linearity ±1% Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted InGaAs Photodiode	0.1257 mm² (0.4 mm)	Ø 400 μm	900 - 1700 nm	In stock	$ 104.00
Product Code Wavelength Range 900 - 1700 nm Active Area 0.1257 mm² (0.4 mm) Sensing Area Ø 400 μm Sensor Type InGaAs Detection Wavelength Region Short-Wave IR Near IR Active Area Diameter 0.4 mm Package TO-46 Rise Time 3 ns (5 V) Capacitance 14 pF (5 V, Typical) Noise Equivalent Power 7.69 × 10^-15 W/Hz^1/2 Specific Detectivity 4.610429 × 10¹² cmHz^1/2/W (Calculated) Reverse Voltage 15 V (Maximum) Dark Current 400 pA (5 V, Typical) 5 nA (5 V, Maximum) Maximum Forward Current 8 mA Maximum Reverse Current 2 mA Photosensitivity 0.9 A/W (1550 nm, Minimum) 0.95 A/W (1550 nm, Typical) 0.8 A/W (1310 nm, Minimum) 0.9 A/W (1310 nm, Typical) Fall Time 3 ns (5 V) Supplier Location New Jersey, USA See product details More from Edmund Optics
Power Meter incl. Sensor	283.5 mm² (19 mm)	Ø 19 mm	190 - 11000 nm 10600 nm (Calibration)	Contact Supplier	$ 1935.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 190 - 11000 nm 10600 nm (Calibration) Active Area 283.5 mm² (19 mm) Sensing Area Ø 19 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 19 mm Maximum Incident Energy Density 0.6 J/cm² (10 ns, 1064 nm) Cooling System Air Maximum Incident Power Density 6000 W/cm² Power Measurement 10 mW - 30 W Power Range 10 mW - 30 W Model Number PM30 Coherent Part Number: 1174257 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	59.74 mm²	8.45 x 7.07 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 995.00
Product Code Manufacturer Teledyne Dalsa Dimensions 40.6 x 29 x 44 mm (Includes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 46 g Operating Temperature -20 to 60 °C Power Consumption 3.6 - 4.6 W (External Power Supply) 4 - 4.9 W (PoE) Active Area 59.74 mm² Sensing Area 8.45 x 7.07 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2448 x 2048 Mega-pixels 5 Pixel Size 3.45 x 3.45 μm Shutter Type Global Frame Rate 23.8 FPS Image Sensor Format 2/3" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 12 bit Trigger Mode Free-Run, Hardware Trigger (GPIO), PTP (IEEE 1588), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor IMX264 Dynamic Range 76.4 dB Image Buffer 90.0 MB Exposure Timing Mode Programmable via External Trigger GPIOs 2 digital input, 2 digital output Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO Storage Temperature -40 to 80 °C Imaging Sensor Sony IMX264 Model Number Nano-C2420 Machine Vision Standard GigE Vision v1.2 GPIO Connector Type 10-pin Samtec Interface Port Orientation Back Panel Camera Family Genie Nano-1GigE Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted InGaAs Photodiode	1.767 mm² (1.5 mm)	Ø 1.5 mm	900 - 1700 nm	In stock	$ 301.00
Product Code Wavelength Range 900 - 1700 nm Active Area 1.767 mm² (1.5 mm) Sensing Area Ø 1.5 mm Sensor Type InGaAs Detection Wavelength Region Short-Wave IR Near IR Active Area Diameter 1.5 mm Package TO-46 Capacitance 200 pF (0V, Typical) 450 pF (0V, Maximum) Noise Equivalent Power 3.01 × 10^-14 W/Hz^1/2 Specific Detectivity 4.416231 × 10¹² cmHz^1/2/W (Calculated) Reverse Voltage 2 V (Maximum) Shunt Resistance 20 MΩ (-10 mV) Maximum Forward Current 10 mA Maximum Reverse Current 2 mA Photosensitivity 0.9 A/W (1550 nm, Minimum) 0.95 A/W (1550 nm, Typical) 0.8 A/W (1310 nm, Minimum) 0.9 A/W (1310 nm, Typical) Supplier Location New Jersey, USA See product details More from Edmund Optics

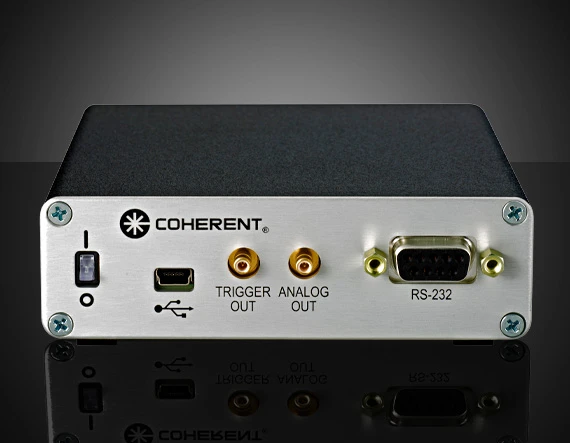

Power and Energy Meter, Sensor not incl.	-	-	-	Contact Supplier	$ 1740.00
Product Code Manufacturer Coherent® Interface RS-232, USB Weight 300 g Operating Temperature 5 - 40 °C Supply Voltage 90 - 260 V (50/60 Hz) Sampling Rate 625 kHz Model Number 1268881 Power Supply 90-260 VAC, 50/60 Hz AC Power Adapter Storage Temperature -20 to 70 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
Pyroelectric Energy Sensor	1963.0 mm² (50 mm)	Ø 50 mm	190 - 12000 nm 1064 nm (Calibration)	In stock	$ 1980.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 190 - 12000 nm 1064 nm (Calibration) Active Area 1963.0 mm² (50 mm) Sensing Area Ø 50 mm Sensor Type Pyroelectric Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 50 mm Maximum Incident Energy Density 0.5 J/cm² (10 ns, 1064 nm) Maximum Optical Power 10 W Repetition Rate 300 Hz (Maximum) Maximum Pulse Width 57 μs Maximum Repetition Rate 300 Hz Noise Equivalent Energy < 8 μJ Pulse Energy Range 250 μJ - 500 mJ Model Number J-50MB-LE Coherent Part Number: 1110576 Linearity ±3% Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	18.5381 mm²	4.97 x 3.73 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 335.00
Product Code Manufacturer Lucid Vision Labs Dimensions 24 x 24 x 27.35 mm (Excludes Connectors and Lens Mount) Interface GigE, ix Industrial Wavelength Range 400 - 780 nm (Inferred) Weight 30 g Operating Temperature -20 to 55 °C Power Consumption 2.5 W (External Power Supply) 3.1 W (PoE) Active Area 18.5381 mm² Sensing Area 4.97 x 3.73 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1440 x 1080 Mega-pixels 1.6 Pixel Size 3.45 x 3.45 μm Shutter Type Global Frame Rate 77 FPS Image Sensor Format 1/2.9" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Partial Bit Depth 12 bit Trigger Mode Hardware Trigger (GPIO) PTP (IEEE 1588) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor IMX273 Exposure Time 30 μs - 10 s Dynamic Range 71.42 dB Image Buffer 128.0 MB Supply Voltage 12 - 24 V GPIOs 1 opto-isolated input 1 opto-isolated output 2 non-isolated bi-directional ports Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with 12-24VDC Power Supply Storage Temperature -30 to 60 °C Imaging Sensor Sony IMX273 Model Number PHX016S-MS-IX Machine Vision Standard GigE Vision v2 GPIO Connector Type 8-pin JST Interface Port Orientation Back Panel Camera Family PhoenixTM Supplier Location New Jersey, USA See product details More from Edmund Optics
Power Meter incl. Sensor	490.9 mm² (25 mm)	Ø 25 mm	700 - 1070 nm 810 nm (Calibration)	Contact Supplier	$ 3140.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 700 - 1070 nm 810 nm (Calibration) Active Area 490.9 mm² (25 mm) Sensing Area Ø 25 mm Sensor Type Thermopile Detection Wavelength Region Visible, Near IR Active Area Diameter 25 mm Maximum Incident Energy Density 33 J/cm² (3 ns, 755 nm) Cooling System Air, Water Rise Time < 10 μs Maximum Incident Power Density 50000 W/cm² Power Measurement 1 - 350 W (Water-Cooled) Power Range 1 - 350 W Model Number 1286588 Fall Time < 10 μs Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	36.8154 mm²	6.78 x 5.43 mm	400 - 780 nm (Inferred)	In stock	$ 466.56
Product Code Manufacturer Basler Dimensions 42 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 90 g Operating Temperature 0 - 50 °C Power Consumption 2 W (External Power Supply) 2.6 W (PoE) Active Area 36.8154 mm² Sensing Area 6.78 x 5.43 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1280 x 1024 Mega-pixels 1.3 Pixel Size 5.3 x 5.3 μm Shutter Type Rolling Frame Rate 60 FPS Image Sensor Format 1/1.8" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 10 bit, 12 bit Trigger Mode Free-Run, Hardware Trigger (GPIO), Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 1 opto-coupled output line 1 general purpose I/O (GPIO) line Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #68-466 Storage Temperature -20 to 80 °C Imaging Sensor E2v EV76C560 Model Number AcA1280-60gc Machine Vision Standard GigE Vision GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics

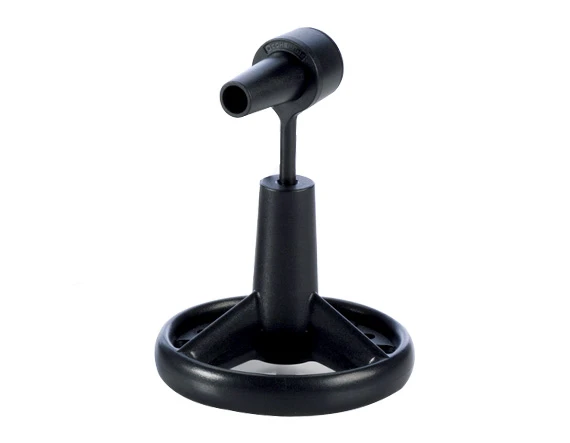

Thermopile Power Sensor	201.1 mm² (16 mm)	Ø 16 mm	250 - 10600 nm 10600 nm (Calibration)	In stock	$ 1870.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 250 - 10600 nm 10600 nm (Calibration) Minimum Optical Power 10 mW Active Area 201.1 mm² (16 mm) Sensing Area Ø 16 mm Sensor Type Quad Element Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 16 mm Maximum Incident Energy Density 0.6 J/cm² (10 ns, 1064 nm) Maximum Optical Power 10 W Cooling System Air Maximum Incident Power Density 6000 W/cm² Power Measurement 10 mW - 10 W Power Range 10 mW - 10 W Model Number LM-10 Coherent Part Number: 1168340 Linearity ±1% Supplier Location New Jersey, USA See product details More from Edmund Optics

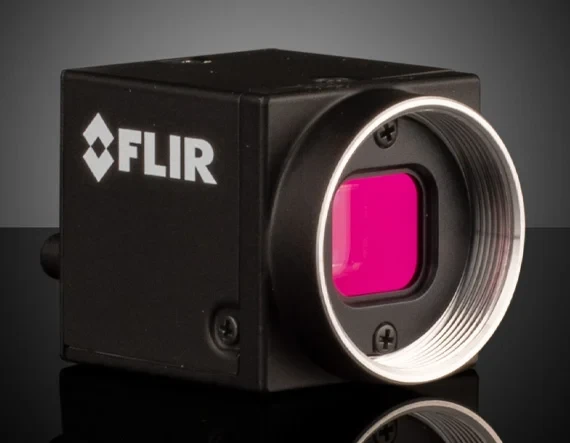

CMOS Color Camera	38.88 mm²	7.2 x 5.4 mm	400 - 780 nm (Inferred)	In stock	$ 758.00
Product Code Manufacturer FLIR Dimensions 29 x 29 x 30 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 36 g Operating Temperature 0 - 45 °C Power Consumption 2.5 W Active Area 38.88 mm² Sensing Area 7.2 x 5.4 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1600 x 1200 Mega-pixels 2 Pixel Size 4.5 x 4.5 μm Shutter Type Global Frame Rate 47 FPS Image Sensor Format 1/1.8" Lens Mount CS-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 12 bit, 16 bit, 24 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Time 16 μs - 1 s Dynamic Range 62.49 dB Image Buffer 16.0 MB GPIOs 1 opto-isolated input 1 opto-isolated output Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #88-063 Storage Temperature -30 to 60 °C Imaging Sensor E2v EV76C570 Model Number BFLY-PGE-20E4C-CS Machine Vision Standard GigE Vision v1.2 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Blackfly® Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	5.76 mm²	2.4 x 2.4 mm	980 nm (Peak Sensitivity)	In stock	$ 88.00
Product Code Wavelength Range 980 nm (Peak Sensitivity) Key Features DUV Operating Temperature -20 to 60 °C Active Area 5.76 mm² Sensing Area 2.4 x 2.4 mm Sensor Type Silicon Detection Wavelength Region Near IR Package TO-5 Rise Time 200 ns (0V, 1 kΩ) Capacitance 65 pF (0V) Noise Equivalent Power 3.6 × 10^-14 W/Hz^1/2 (0V, 200 nm) Specific Detectivity 6.666667 × 10¹² cmHz^1/2/W (Calculated) Peak Response Wavelength 980 nm Reverse Voltage 5 V (Maximum) Shunt Resistance 300 MΩ (-10 mV, Minimum) 1 GΩ (-10 mV, Typical) Photosensitivity 0.34 A/W (633 nm) 0.12 A/W (200 nm) 0.5 A/W (980 nm) Storage Temperature -55 to 80 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
Pyroelectric Energy Sensor	490.9 mm² (25 mm)	Ø 25 mm	190 - 12000 nm 1064 nm (Calibration)	In stock	$ 2925.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 190 - 12000 nm 1064 nm (Calibration) Active Area 490.9 mm² (25 mm) Sensing Area Ø 25 mm Sensor Type Pyroelectric Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 25 mm Maximum Incident Energy Density 0.5 J/cm² (10 ns, 1064 nm) Maximum Optical Power 5 W Repetition Rate 1 kHz (Maximum) Maximum Pulse Width 17 μs Maximum Repetition Rate 1 kHz Noise Equivalent Energy < 5 μJ Pulse Energy Range 50 μJ - 50 mJ Model Number J-25MB-LE Coherent Part Number: 1191441 Linearity ±3% Supplier Location New Jersey, USA See product details More from Edmund Optics
Segmented Si Photodiode	2.76 mm²	600 μm x 4.6 mm	-	Contact Supplier	$ 75.00
Product Code Operating Temperature -40 to 100 °C Active Area 2.76 mm² Sensing Area 600 μm x 4.6 mm Sensor Type Silicon Package TO-5 Rise Time 4 ns Capacitance 7 pF (-10 V) Noise Equivalent Power 9.9 × 10^-15 W/Hz^1/2 (-10 V, 970 nm) Specific Detectivity 1.678106 × 10¹³ cmHz^1/2/W (Calculated) Reverse Voltage 30 V (Maximum) Dark Current 2 nA (-10 V, Maximum) 130 pA (-10 V, Typical) Element Gap 25 μm Photosensitivity 0.6 A/W (970 nm, Minimum) 0.65 A/W (970 nm, Typical) Model Number SPOT-3D Storage Temperature -55 to 125 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
NIR Camera	24.51 mm²	5.7 x 4.3 mm	780 - 1400 nm (Inferred)	Contact Supplier	$ 301.32
Product Code Manufacturer Allied Vision Dimensions 25 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 780 - 1400 nm (Inferred) Applications Machine Vision Weight 45 g Operating Temperature -20 to 65 °C Power Consumption 2.2 W Active Area 24.51 mm² Sensing Area 5.7 x 4.3 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Near IR Resolution (Pixels) 2592 x 1944 Mega-pixels 5 Pixel Size 2.2 x 2.2 μm Shutter Type Rolling Frame Rate 68 FPS Image Sensor Format 1/2.5" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Partial Bit Depth 8 bit, 10 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Exposure Time 8 μs - 480 ms (1.2 MBps) 13 μs - 840 ms (200 MBps) Dynamic Range 62 dB Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor ON Semi AR0522 Model Number 1800 U-501m NIR Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
Pyroelectric Energy Sensor	1963.0 mm² (50 mm)	Ø 50 mm	190 - 2100 nm 1064 nm (Calibration)	In stock	$ 2230.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 190 - 2100 nm 1064 nm (Calibration) Active Area 1963.0 mm² (50 mm) Sensing Area Ø 50 mm Sensor Type Pyroelectric Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR Active Area Diameter 50 mm Maximum Incident Energy Density 0.5 J/cm² (10 ns, 1064 nm) Maximum Optical Power 20 W Repetition Rate 10 kHz (Maximum) Maximum Pulse Width 1.7 μs Maximum Repetition Rate 10 kHz Noise Equivalent Energy < 16 μJ Pulse Energy Range 500 μJ - 1 J Model Number J-50MT-10KHZ Coherent Part Number: 1110574 Linearity ±3% Supplier Location New Jersey, USA See product details More from Edmund Optics
Thermopile Power Sensor	283.5 mm² (19 mm)	Ø 19 mm	300 - 2000 nm 514 nm (Calibration)	Contact Supplier	$ 2145.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 300 - 2000 nm 514 nm (Calibration) Active Area 283.5 mm² (19 mm) Sensing Area Ø 19 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR Active Area Diameter 19 mm Maximum Incident Energy Density 0.05 J/cm² (10 ns, 1064 nm) Maximum Optical Power 1 W Cooling System Air Maximum Incident Power Density 500 W/cm² Power Measurement 100 μW - 1 W Power Range 100 μW - 1 W Power Resolution 10 μW Settling Time 2 s Model Number PS19Q Coherent Part Number: 1098341 Linearity ±1% Supplier Location New Jersey, USA See product details More from Edmund Optics

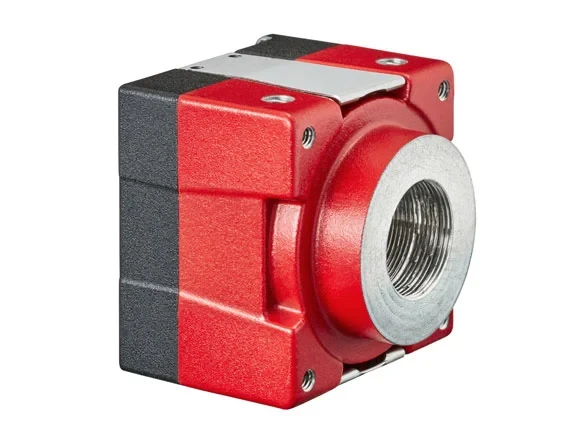

CMOS Camera	38.76 mm²	6.8 x 5.7 mm	400 - 780 nm (Inferred)	In stock	$ 788.40
Product Code Manufacturer Allied Vision Dimensions 29 x 29 x 33 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 70 g Operating Temperature 5 - 65 °C Power Consumption 3.2 W Active Area 38.76 mm² Sensing Area 6.8 x 5.7 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2464 x 2064 Mega-pixels 5.1 Pixel Size 2.74 x 2.74 μm Shutter Type Global Frame Rate 66 FPS Image Sensor Format 1/1.8" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 10 bit, 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Sensor IMX547 Exposure Time 164 μs - 10 s (450 MBps) 163 μs - 10 s (200 MBps) Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX547 Model Number 1800 U-511m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	38.76 mm²	6.8 x 5.7 mm	400 - 780 nm (Inferred)	In stock	$ 799.20
Product Code Manufacturer Allied Vision Dimensions 33 x 32 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 70 g Operating Temperature 5 - 65 °C Power Consumption 3.2 W Active Area 38.76 mm² Sensing Area 6.8 x 5.7 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2464 x 2064 Mega-pixels 5.1 Pixel Size 2.74 x 2.74 μm Shutter Type Global Frame Rate 66 FPS Image Sensor Format 1/1.8" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 10 bit, 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Sensor IMX547 Exposure Time 164 μs - 10 s (450 MBps) 163 μs - 10 s (200 MBps) Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX547 Model Number 1800 U-511c Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	100 mm²	10 x 10 mm	980 nm (Peak Sensitivity)	In stock	$ 218.00
Product Code Wavelength Range 980 nm (Peak Sensitivity) Key Features DUV Operating Temperature -20 to 60 °C Active Area 100 mm² Sensing Area 10 x 10 mm Sensor Type Silicon Detection Wavelength Region Near IR Package Ceramic Rise Time 3 μs (0V, 1 kΩ) Capacitance 1.1 nF (0V) Noise Equivalent Power 8.2 × 10^-14 W/Hz^1/2 (0V, 200 nm) Specific Detectivity 1.219512 × 10¹³ cmHz^1/2/W (Calculated) Peak Response Wavelength 980 nm Reverse Voltage 5 V (Maximum) Shunt Resistance 40 MΩ (-10 mV, Minimum) 200 MΩ (-10 mV, Typical) Photosensitivity 0.34 A/W (633 nm) 0.12 A/W (200 nm) 0.5 A/W (980 nm) Storage Temperature -20 to 80 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
Pyroelectric Energy Sensor	962.11255 mm² (35 mm)	Ø 35 mm	266 - 2100 nm 1064 nm (Calibration)	In stock	$ 3310.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 266 - 2100 nm 1064 nm (Calibration) Active Area 962.11255 mm² (35 mm) Sensing Area Ø 35 mm Sensor Type Pyroelectric Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR Active Area Diameter 35 mm Maximum Incident Energy Density 14 J/cm² (10 ns, 1064 nm) 2.8 J/cm² (10 ns, 532 nm) 0.75 J/cm² (10 ns, 355 nm) 1 J/cm² (10 ns, 266 nm) Maximum Optical Power 20 W Repetition Rate 50 Hz (Maximum) Maximum Pulse Width 340 μs Maximum Repetition Rate 50 Hz Noise Equivalent Energy < 240 μJ Pulse Energy Range 2.4 mJ - 3 J Model Number J-50MB-YAG Coherent Part Number: 1191437 Linearity ±3% Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	24.51 mm²	5.7 x 4.3 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 333.72
Product Code Manufacturer Allied Vision Dimensions 33 x 29 x 29 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 60 g Operating Temperature -20 to 65 °C Power Consumption 2.2 W Active Area 24.51 mm² Sensing Area 5.7 x 4.3 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2592 x 1944 Mega-pixels 5 Pixel Size 2.2 x 2.2 μm Shutter Type Rolling Frame Rate 67 FPS Image Sensor Format 1/2.5" Lens Mount M12x0.5, S-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 10 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, M6, with Tripod Mount Adapter Exposure Time 13 μs - 849 ms Dynamic Range 63 dB Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -20 to 85 °C Imaging Sensor ON Semi AR0521 Model Number 1800 U-500m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel Camera Family Alvium Supplier Location New Jersey, USA See product details More from Edmund Optics
Power and Energy Meter, Sensor not incl.	-	-	-	In stock	$ 1900.00
Product Code Manufacturer Coherent® Interface USB Weight 1 kg Operating Temperature 5 - 40 °C Sensor Type Pyroelectric Thermopile Supply Voltage 100 - 240 V (50/60 Hz, Battery) Sampling Rate 10 Hz Model Number 1098580 Power Supply 100-240 V AC, 50/60 Hz OR Rechargeable NiMH Battery Pack Storage Temperature -20 to 70 °C Supplier Location New Jersey, USA See product details More from Edmund Optics

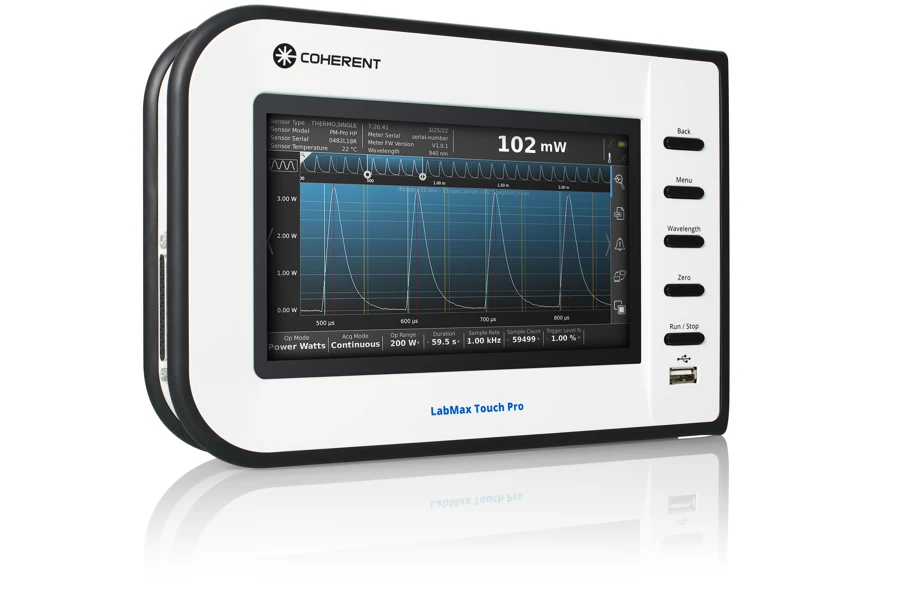

Power and Energy Meter, Sensor not incl.	-	-	-	In stock	$ 2578.70
Product Code Manufacturer Coherent® Dimensions 238 x 162 x 51 mm Interface Ethernet, RS-232, USB Weight 1.19 kg Operating Temperature 5 - 40 °C Supply Voltage 90 - 260 V (50/60 Hz) Sampling Rate 10 Hz Model Number 2256259 Power Supply 90 to 260 VAC, 50/60 Hz AC Storage Temperature -20 to 70 °C Supplier Location New Jersey, USA See product details More from Edmund Optics

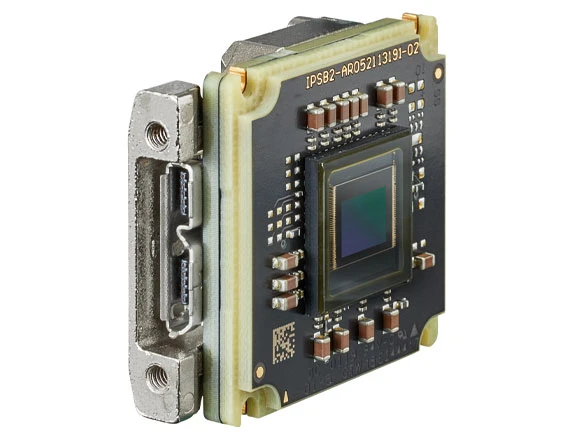

CMOS Camera	24.51 mm²	5.7 x 4.3 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 301.32
Product Code Manufacturer Allied Vision Dimensions 13 x 30 x 26 mm (Includes Connectors and Lens Mount) Interface USB 3.1 Micro-B Wavelength Range 400 - 780 nm (Inferred) Applications Machine Vision Weight 15 g Key Features Board Level Operating Temperature 5 - 80 °C Power Consumption 2.2 W Active Area 24.51 mm² Sensing Area 5.7 x 4.3 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2592 x 1944 Mega-pixels 5 Pixel Size 2.2 x 2.2 μm Shutter Type Rolling Frame Rate 67 FPS Image Sensor Format 1/2.5" Scanning Method Progressive Scan Housing Board Level Bit Depth 8 bit, 10 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads No Mounting Threads/Tripod Adapter Exposure Time 13 μs - 849 ms Dynamic Range 63 dB Image Buffer 256 KB GPIOs 4 Programmable TTL GPIOs Video Output USB 3.1 Gen 1 Power Supply Power over USB or via GPIO Storage Temperature -10 to 70 °C Imaging Sensor ON Semi AR0521 Model Number 1800 U-500m Machine Vision Standard USB3 Vision v1, GenICam GPIO Connector Type 7-pin JST Interface Port Orientation Back Panel (Right Angle) Camera Family Alvium Right Angle Supplier Location New Jersey, USA See product details More from Edmund Optics
Photodiode Power Sensor	19.63495 mm² (5 mm)	Ø 5 mm	800 - 1800 nm	In stock	$ 1140.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 800 - 1800 nm Minimum Optical Power 10 nW Active Area 19.63495 mm² (5 mm) Sensing Area Ø 5 mm Sensor Type Germanium Detection Wavelength Region Short-Wave IR Near IR Resolution (Pixels) 1 Active Area Diameter 5 mm Maximum Optical Power 10 mW Cooling System Air Power Measurement 10 nW - 10 mW Power Range 10 nW - 10 mW Power Resolution 1 nW Model Number OP-2 IR Coherent Part Number: 1098416 Supplier Location New Jersey, USA See product details More from Edmund Optics

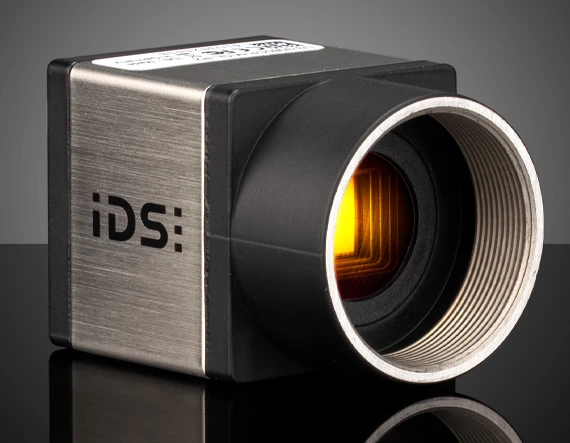

CMOS Camera	41.07 mm²	7.4 x 5.55 mm	400 - 780 nm (Inferred)	In stock	$ 723.60
Product Code Manufacturer IDS Imaging Dimensions 34 x 44 x 47 mm (Excludes Connectors and Lens Mount) Interface USB 3.0, USB Type-C Wavelength Range 400 - 780 nm (Inferred) Weight 110 g Operating Temperature 0 - 55 °C Power Consumption 2 - 3.6 W Active Area 41.07 mm² Sensing Area 7.4 x 5.55 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 4000 x 3000 Mega-pixels 12 Pixel Size 1.85 x 1.85 μm Shutter Type Rolling Frame Rate 33 FPS Image Sensor Format 1/1.8" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor IMX226 Exposure Time 40 μs - 600 ms Image Buffer 128.0 MB GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Voltage Output, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 60 °C Imaging Sensor Sony IMX226 Model Number U3-3890SE-M-GL Rev.1.2 Machine Vision Standard USB3 Vision v1.1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family UEye SE Supplier Location New Jersey, USA See product details More from Edmund Optics

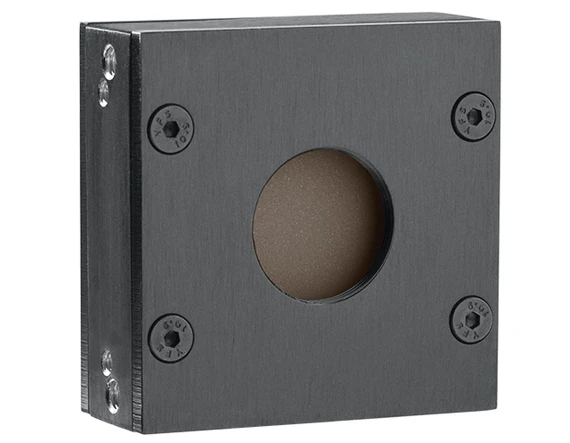

Thermopile Power Sensor	283.5 mm² (19 mm)	19 mm	190 - 20000 nm	In stock	$ 1301.13
Product Code Dimensions 50 x 50 x 20.6 mm Wavelength Range 190 - 20000 nm Weight 160 g Active Area 283.5 mm² (19 mm) Sensing Area 19 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR, Far IR Active Area Diameter 19 mm Maximum Incident Energy Density 1 J/cm² Maximum Optical Power 15 W Cooling System Convection Maximum Incident Power Density 36000 W/cm² Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	17.28 mm²	4.8 x 3.6 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 423.76
Product Code Manufacturer FLIR Dimensions 29 x 29 x 30 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 36 g Operating Temperature 0 - 45 °C Power Consumption 2.5 W Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1280 x 960 Mega-pixels 1.2 Pixel Size 3.75 x 3.75 μm Shutter Type Global Frame Rate 52 FPS Image Sensor Format 1/3" Lens Mount CS-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 12 bit, 16 bit, 24 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Time 19 μs - 1.226 s Dynamic Range 57.87 dB Image Buffer 16.0 MB GPIOs 1 opto-isolated input 1 opto-isolated output Video Output GigE (PoE) Power Supply Power over Ethernet (PoE) or via GPIO with #88-063 Storage Temperature -30 to 60 °C Imaging Sensor ON Semi AR0134 Model Number BFLY-PGE-12A2M-CS Machine Vision Standard GigE Vision v1.2 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Blackfly® Supplier Location New Jersey, USA See product details More from Edmund Optics

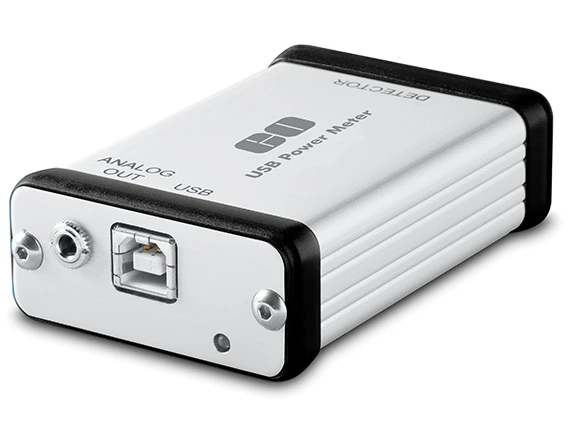

Power and Energy Meter, Sensor not incl.	-	-	-	In stock	$ 1116.11
Product Code Dimensions 57 x 26 x 91 mm Interface USB 2.0 Weight 120 g Supplier Location New Jersey, USA See product details More from Edmund Optics

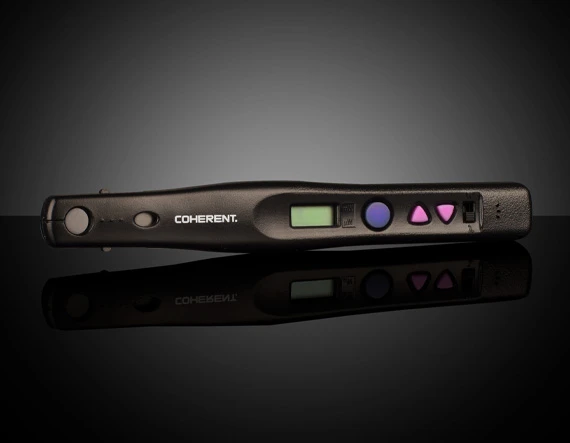

Power Meter incl. Sensor	50.27 mm² (8 mm)	Ø 8 mm	400 - 1064 nm	In stock	$ 615.25
Product Code Manufacturer Coherent® Wavelength Range 400 - 1064 nm Weight 44 g Minimum Optical Power 3 - 10 μW Active Area 50.27 mm² (8 mm) Sensing Area Ø 8 mm Sensor Type Silicon Detection Wavelength Region Visible, Near IR Active Area Diameter 8 mm Maximum Incident Power Density 0.5 W/cm² (Without Filter) 30 W/cm² (With Filter) Power Resolution 10 nW Settling Time 2 - 10 ms Power Supply Battery, Lifetime: 180,000 Samples @ 12 seconds/sample Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	17.28 mm²	4.8 x 3.6 mm	400 - 780 nm (Inferred)	In stock	$ 264.60
Product Code Manufacturer IDS Imaging Dimensions 29 x 29 x 17 mm Wavelength Range 400 - 780 nm (Inferred) Weight 59 g Active Area 17.28 mm² Sensing Area 4.8 x 3.6 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1968 x 1100 Mega-pixels 2.16 Pixel Size 2.9 x 2.9 μm Shutter Type Rolling Frame Rate 88 FPS Image Sensor Format 1/3" Lens Mount C-Mount Scanning Method Progressive Scan Sensor IMX662 Imaging Sensor Sony IMX662 Model Number U3-38C0XCP Supplier Location New Jersey, USA See product details More from Edmund Optics
Unmounted Si Photodiode	5.1 mm²	-	350 - 1100 nm	In stock	$ 49.75
Product Code Wavelength Range 350 - 1100 nm Applications Low Light Levels Key Features Blue Enhanced Response Operating Temperature -40 to 100 °C Active Area 5.1 mm² Sensor Type Silicon Detection Wavelength Region UV, Visible, Near IR Package TO-5 Rise Time 200 ns (0V, 50 Ω, 410 nm) Capacitance 450 pF (0V) Noise Equivalent Power 5.2 × 10^-14 W/Hz^1/2 Specific Detectivity 4.34 × 10¹² cmHz^1/2/W (0V, 410 nm) Peak Response Wavelength 970 nm Shunt Resistance 150 MΩ Diameter 9.144 mm (0.36", Outer) Photosensitivity 0.2 A/W (410 nm) Model Number PIN-5DP/SB Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	17.8398 mm²	5.61 x 3.18 mm	400 - 780 nm (Inferred)	Contact Supplier	$ 550.80
Product Code Manufacturer IDS Imaging Dimensions 29 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 47 g Operating Temperature 0 - 55 °C Power Consumption 1.5 - 2.6 W Active Area 17.8398 mm² Sensing Area 5.61 x 3.18 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 1936 x 1096 Mega-pixels 2.12 Pixel Size 2.9 x 2.9 μm Shutter Type Rolling Frame Rate 135 FPS Image Sensor Format 1/2.8" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 12 bit Trigger Mode Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor IMX290 Exposure Time 11 μs - 2 s Image Buffer 128.0 MB GPIOs 2 Flash Output, 2 Trigger Input, 2 GPIO, 1 Output Supply Voltage, 1 Ground Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 60 °C Imaging Sensor Sony IMX290 Model Number U3-3860CP-M-GL Rev.2.2 Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Back Panel Camera Family UEye+ CP Supplier Location New Jersey, USA See product details More from Edmund Optics
Power Meter incl. Sensor	78.5398 mm² (10 mm)	Ø 10 mm	300 - 11000 nm 514 nm (Calibration)	Contact Supplier	$ 2405.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 300 - 11000 nm 514 nm (Calibration) Active Area 78.5398 mm² (10 mm) Sensing Area Ø 10 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 10 mm Maximum Incident Energy Density 0.05 J/cm² (10 ns, 1064 nm) Maximum Optical Power 1 W Cooling System Air Maximum Incident Power Density 500 W/cm² Power Measurement 100 μW - 1 W Power Range 100 μW - 1 W Noise Power 3 μW Settling Time 2 s Model Number PS10 Coherent Part Number: 1174260 Linearity ±1% Supplier Location New Jersey, USA See product details More from Edmund Optics
Power Meter incl. Sensor	900 mm²	30 x 30 mm	400 - 1100 nm 9000 - 11000 nm 810 nm (Calibration)	In stock	$ 4040.00
Product Code Manufacturer Coherent® Interface USB Wavelength Range 400 - 1100 nm 9000 - 11000 nm 810 nm (Calibration) Active Area 900 mm² Sensing Area 30 x 30 mm Detection Wavelength Region Visible, Near IR, Long-Wave IR Maximum Incident Energy Density 0.033 J/cm² (10 ns, 1064 nm) Cooling System Air, Water Rise Time < 10 μs Maximum Incident Power Density 14000 W/cm² Power Measurement 200 mW - 150 W (Water-Cooled) Power Range 200 mW - 150 W Model Number 1295921 Fall Time < 10 μs Supplier Location New Jersey, USA See product details More from Edmund Optics

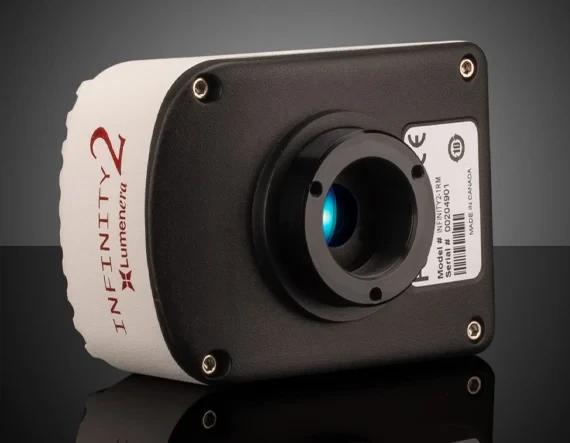

CCD Camera	58.1019 mm²	8.79 x 6.61 mm	400 - 780 nm (Inferred)	In stock	$ 5878.97
Product Code Manufacturer Teledyne Lumenera Dimensions 97.8 x 69.8 x 50.8 mm Interface USB 3.0 Wavelength Range 400 - 780 nm (Inferred) Weight 340 g Operating Temperature 0 - 50 °C Power Consumption 6 W Active Area 58.1019 mm² Sensing Area 8.79 x 6.61 mm Sensor Type Progressive Scan CCD Detection Wavelength Region Visible Resolution (Pixels) 1936 x 1456 Mega-pixels 2.8 Pixel Size 4.54 x 4.54 μm Shutter Type Global Frame Rate 53 FPS Image Sensor Format 2/3" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 14 bit Trigger Mode Hardware Trigger (GPIO) Mounting Threads 1/4-20, Integrated into Housing Sensor ICX674 Exposure Time 23 μs - 1.3 s Dynamic Range 65.3 dB Video Output USB 3 Power Supply Power over USB Storage Temperature -30 to 70 °C Imaging Sensor Sony ICX674 Model Number Infinity 3-3UR GPIO Connector Type 8-pin Hirose (MRX) Interface Port Orientation Side Panel Camera Family Infinity Supplier Location New Jersey, USA See product details More from Edmund Optics
Thermopile Power Sensor	2375.82895 mm² (55 mm)	55 mm	190 - 20000 nm	In stock	$ 2482.90
Product Code Dimensions 89 x 89 x 116 mm Wavelength Range 190 - 20000 nm Weight 1.41 kg Active Area 2375.82895 mm² (55 mm) Sensing Area 55 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, DUV, Visible, Near IR, Mid IR, Long-Wave IR, Far IR Active Area Diameter 55 mm Maximum Incident Energy Density 1 J/cm² Maximum Optical Power 300 W Cooling System Fan Maximum Incident Power Density 45000 W/cm² Supplier Location New Jersey, USA See product details More from Edmund Optics
Segmented Si Photodiode	1.69 mm²	1.3 x 1.3 mm	-	Contact Supplier	$ 70.50
Product Code Operating Temperature -40 to 100 °C Active Area 1.69 mm² Sensing Area 1.3 x 1.3 mm Sensor Type Silicon Package TO-5 Rise Time 3 ns Capacitance 5 pF (-10 V) Noise Equivalent Power 8.7 × 10^-15 W/Hz^1/2 (-10 V, 970 nm) Specific Detectivity 1.494253 × 10¹³ cmHz^1/2/W (Calculated) Reverse Voltage 30 V (Maximum) Dark Current 1 nA (-10 V, Maximum) 100 pA (-10 V, Typical) Element Gap 172 μm Photosensitivity 0.6 A/W (970 nm, Minimum) 0.65 A/W (970 nm, Typical) Model Number SPOT-4D Storage Temperature -55 to 125 °C Supplier Location New Jersey, USA See product details More from Edmund Optics

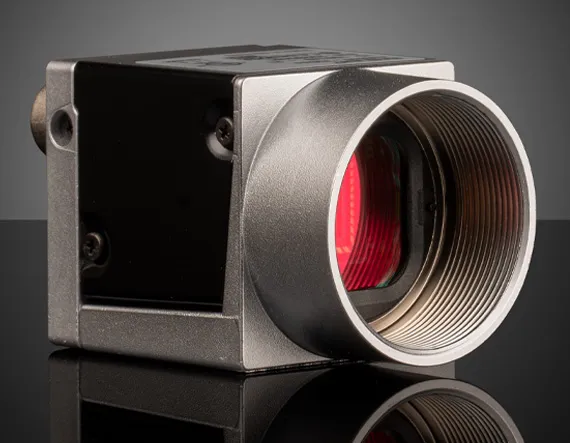

CMOS Camera	126.7876 mm²	11.26 x 11.26 mm	400 - 780 nm (Inferred)	In stock	$ 1992.60
Product Code Manufacturer Basler Dimensions 29.3 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Operating System Windows 32 Bit Windows 64 Bit Wavelength Range 400 - 780 nm (Inferred) Weight 80 g Operating Temperature 0 - 50 °C Power Consumption 3.2 W Active Area 126.7876 mm² Sensing Area 11.26 x 11.26 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2048 x 2048 Mega-pixels 4.2 Pixel Size 5.5 x 5.5 μm Shutter Type Global Frame Rate 90 FPS Image Sensor Format 1" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 10 bit, 12 bit Trigger Mode Free-Run, Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor CMV4000 Dynamic Range 58.7 dB Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 1 opto-coupled output line 2 general purpose I/O (GPIO) lines Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor CMOSIS CMV4000 Model Number AcA2040-90um Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics
Thermopile Power Sensor	1963.0 mm² (50 mm)	Ø 50 mm	250 - 11000 nm 1070 nm (Calibration)	Contact Supplier	$ 4800.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 250 - 11000 nm 1070 nm (Calibration) Key Features Cooled Minimum Optical Power 100 W Active Area 1963.0 mm² (50 mm) Sensing Area Ø 50 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 50 mm Maximum Incident Energy Density 0.6 J/cm² (10 ns, 1064 nm) Maximum Optical Power 5 kW Cooling System Water Power Measurement 100 W - 5 kW Power Range 100 W - 5 kW Power Resolution 1 W Settling Time 30 s Model Number 1098454 Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	11.06 mm²	3.84 x 2.88 mm	400 - 780 nm (Inferred)	In stock	$ 567.00
Product Code Manufacturer Basler Dimensions 29.3 x 29 x 29 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Operating System Windows 32 Bit Windows 64 Bit Wavelength Range 400 - 780 nm (Inferred) Weight 80 g Operating Temperature 0 - 50 °C Power Consumption 3 W Active Area 11.06 mm² Sensing Area 3.84 x 2.88 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 800 x 600 Mega-pixels 0.5 Pixel Size 4.8 x 4.8 μm Shutter Type Global Frame Rate 511 FPS Image Sensor Format 1/3.6" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 10 bit Trigger Mode Free-Run, Hardware Trigger (GPIO) Mounting Threads 1/4-20, with Tripod Mount Adapter Exposure Timing Mode Freely Programmable GPIOs 1 opto-coupled input line 1 opto-coupled output line 2 general purpose I/O (GPIO) lines Video Output USB 3 Power Supply Power over USB Storage Temperature -20 to 80 °C Imaging Sensor ON Semi PYTHON 500 Model Number AcA800-510uc Machine Vision Standard USB3 Vision v1 GPIO Connector Type 6-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Ace Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Color Camera	126.7876 mm²	11.26 x 11.26 mm	400 - 780 nm (Inferred)	In stock	$ 2075.00
Product Code Manufacturer Pixelink Dimensions 55 x 38.5 x 27 mm (Excludes Connectors and Lens Mount) Interface USB 3.0 Micro-B Wavelength Range 400 - 780 nm (Inferred) Weight 89 g Operating Temperature 0 - 50 °C Active Area 126.7876 mm² Sensing Area 11.26 x 11.26 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 2048 x 2048 Mega-pixels 4.2 Pixel Size 5.5 x 5.5 μm Shutter Type Global Frame Rate 90 FPS Image Sensor Format 1" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 10 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor CMV4000 Exposure Time 28 μs - 5 s Dynamic Range 60 dB GPIOs 1 opto-isolated trigger input 1 opto-isolated output 2 non-isolated outputs 1 non-isolated input Video Output USB 3 Power Supply Power over USB Storage Temperature -45 to 85 °C Imaging Sensor CMOSIS CMV4000 Model Number PL-D734CU-T Machine Vision Standard USB3 Vision v1 GPIO Connector Type 8-pin Hirose (HR25) Interface Port Orientation Side Panel Camera Family PL-D Supplier Location New Jersey, USA See product details More from Edmund Optics
Thermopile Power Sensor	1963.0 mm² (50 mm)	Ø 50 mm	250 - 11000 nm 1070 nm (Calibration)	Contact Supplier	$ 3130.00
Product Code Manufacturer Coherent® Interface DB-25 Wavelength Range 250 - 11000 nm 1070 nm (Calibration) Key Features Cooled Minimum Optical Power 100 W Active Area 1963.0 mm² (50 mm) Sensing Area Ø 50 mm Sensor Type Thermopile Detection Wavelength Region UV, Short-Wave IR, Visible, Near IR, Mid IR, Long-Wave IR Active Area Diameter 50 mm Maximum Incident Energy Density 0.6 J/cm² (10 ns, 1064 nm) Maximum Optical Power 1 kW Cooling System Water Power Measurement 100 W - 1 kW Power Range 100 W - 1 kW Power Resolution 1 W Settling Time 30 s Model Number 1098392 Supplier Location New Jersey, USA See product details More from Edmund Optics
Power and Energy Meter, Sensor not incl.	-	-	-	In stock	$ 2295.15
Product Code Manufacturer Coherent® Dimensions 238 x 162 x 51 mm Interface Ethernet, RS-232, USB Weight 1.19 kg Operating Temperature 5 - 40 °C Supply Voltage 90 - 260 V (50/60 Hz) Sampling Rate 10 Hz Model Number 2256258 Power Supply 90 to 260 VAC, 50/60 Hz AC Storage Temperature -20 to 70 °C Supplier Location New Jersey, USA See product details More from Edmund Optics
CMOS Camera	147.68 mm²	14.2 x 10.4 mm	400 - 780 nm (Inferred)	In stock	$ 3034.80
Product Code Manufacturer Allied Vision Dimensions 71 x 44 x 29 mm (Excludes Connectors and Lens Mount) Interface GigE, RJ45 Wavelength Range 400 - 780 nm (Inferred) Weight 190 g Operating Temperature 5 - 45 °C Power Consumption 3 W (External Power Supply) Active Area 147.68 mm² Sensing Area 14.2 x 10.4 mm Sensor Type Progressive Scan CMOS Detection Wavelength Region Visible Resolution (Pixels) 4112 x 3008 Mega-pixels 12.4 Pixel Size 3.45 x 3.45 μm Shutter Type Global Frame Rate 9.7 FPS Image Sensor Format 1.1" Lens Mount C-Mount Scanning Method Progressive Scan Housing Full Bit Depth 8 bit, 12 bit Trigger Mode Hardware Trigger (GPIO) Software Trigger Mounting Threads 1/4-20, with Tripod Mount Adapter Sensor IMX304 Dynamic Range 71.8 dB Image Buffer 128.0 MB Exposure Timing Mode Auto Exposure GPIOs 2 opto-isolated inputs 2 opto-isolated outputs Video Output GigE Power Supply Via GPIO or with external power supply Storage Temperature -10 to 70 °C Imaging Sensor Sony IMX304 Model Number Manta G-1236 Machine Vision Standard GigE Vision v1.2 GenICam SFNC V1.2.1 GPIO Connector Type 12-pin Hirose (HR10) Interface Port Orientation Back Panel Camera Family Manta Supplier Location New Jersey, USA See product details More from Edmund Optics
