Polarization Optics

Compare high quality polarization optics from providers around the world, including linear polarizers, polarizing beamsplitters, polarizing prisms, polarization rotators and circular polarizers. Learn More

Product	Extinction Ratio	Reflectance	Wavelength Range	Availability	Price (USD)

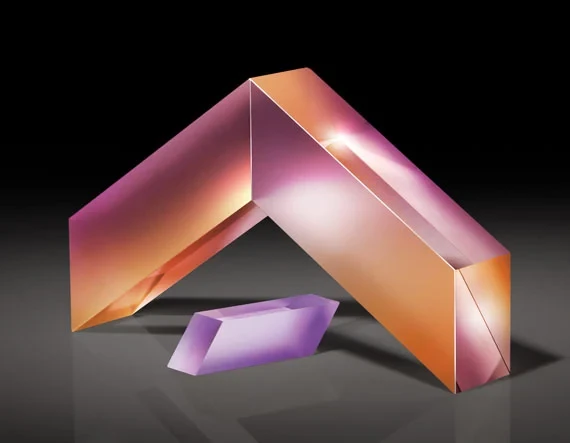

Fresnel Rhomb Retarder	-	-	750 - 1550 nm	In stock	$ 347.68
Product Code Wavelength Range 750 - 1550 nm Center Wavelength 1064 nm Coating BBAR (750 - 1550 nm) Substrate N-BK7 Clear Aperture 18.81 x 18.81 mm Surface Quality 20-10 scratch-dig Retardance λ/4 Coating Features Broadband Supplier Location New Jersey, USA See product details More from Edmund Optics
Wire Grid Linear Polarizer	348:1 (450 nm) 885:1 (550 nm) 1229:1 (650 nm)	< 1% (400 - 700 nm, Average)	420 - 700 nm	In stock	$ 325.42
Product Code Wavelength Range 420 - 700 nm Coating BBAR (400 - 700 nm) Reflectance < 1% (400 - 700 nm, Average) Transmittance 87% (420 - 700 nm) Dimensions 25 x 25 mm Thickness 0.7 mm Extinction Ratio 348:1 (450 nm) 885:1 (550 nm) 1229:1 (650 nm) Substrate EAGLE XG Shape Square Thickness Tolerance ±0.07 mm Surface Quality 80-50 scratch-dig Operating Temperature -40 to 200 °C Coating Features Broadband Angle of Incidence 0 - 20° Supplier Location New Jersey, USA See product details More from Edmund Optics
Wire Grid Linear Polarizer	2000:1 (400 - 1200 nm, Typical)	-	400 - 1200 nm	In stock	$ 73.14
Product Code Wavelength Range 400 - 1200 nm Diameter 25 mm Dimensions Ø 25 mm Thickness 0.19 mm Extinction Ratio 2000:1 (400 - 1200 nm, Typical) Substrate Aluminium Wires on COP Shape Round Thickness Tolerance ±0.3 mm Operating Temperature 60 °C, 90 °C, 105 °C (Maximum) Diameter Tolerance ±0.3 mm Angle of Incidence 0 - 45° Supplier Location New Jersey, USA See product details More from Edmund Optics
Nanoparticle Linear Polarizer	> 10000:1	-	1260 - 1360 nm	In stock	$ 451.56
Product Code Wavelength Range 1260 - 1360 nm Transmittance > 91% Dimensions 10 x 10 mm (+0/-0.1 mm) Thickness 0.09 mm Extinction Ratio > 10000:1 Shape Square Thickness Tolerance ±0.025 mm Surface Quality 40-20 scratch-dig Operating Temperature -50 to 400 °C Transmitted Wavefront Error < 3λ (RMS) Angle of Incidence 0 - 20° Damage Threshold CW 0.01 kW/cm² Supplier Location New Jersey, USA See product details More from Edmund Optics
Polymer Linear Polarizer	400:1 (800 - 2200 nm)	-	400 - 2200 nm	Contact Supplier	$ 103.88
Product Code Wavelength Range 400 - 2200 nm Coating Uncoated Transmittance 29% (400 - 760 nm, Single) 39% (761 - 2200 nm, Single) Diameter 20 mm Dimensions Ø 20 mm Thickness 0.5 mm Extinction Ratio 400:1 (800 - 2200 nm) Substrate Polymer Film Shape Round Thickness Tolerance ±0.1 mm Operating Temperature -55 to 85 °C (10800 s) Supplier Location New Jersey, USA See product details More from Edmund Optics
Half Waveplate	-	-	514.5 nm (Center Wavelength)	Contact Supplier	$ 277.72
Product Code Wavelength Range 514.5 nm (Center Wavelength) Center Wavelength 514.5 nm Coating AR/Transmissive V-Coating (514.5 nm) Diameter 12.7 mm (0.5") Dimensions Ø 12.7 mm (0.5") Thickness 6.4 mm Parallelism 0.5'' Substrate Crystalline Quartz Shape Round Clear Aperture 8 mm Thickness Tolerance +0/-0.25 mm Surface Quality 10-5 scratch-dig Retardance λ/2 Transmitted Wavefront Error λ/10 (P-V) Coating Features Narrowband Diameter Tolerance +0/-0.25 mm Retardance Order Multiple Order Supplier Location New Jersey, USA See product details More from Edmund Optics
Polarizing Cube Beamsplitter	1000:1	< 0.25% (850 nm, Absolute) > 99.5% (s-pol)	850 nm (Center Wavelength)	In stock	$ 473.82
Product Code Wavelength Range 850 nm (Center Wavelength) Center Wavelength 850 nm Reflectance < 0.25% (850 nm, Absolute) > 99.5% (s-pol) Transmittance > 95% (p-pol) Dimensions 35 x 35 x 35 mm (±0.1 mm) Extinction Ratio 1000:1 Substrate N-BK7 Shape Cube Clear Aperture 31.5 x 31.5 x 31.5 mm Surface Quality 40-20 scratch-dig Beam Deviation ±3' Surface Irregularity λ/4 (Flatness) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Quarter Waveplate	-	0.5%	532 nm (Center Wavelength)	In stock	$ 2067.00
Product Code Wavelength Range 532 nm (Center Wavelength) Center Wavelength 532 nm Reflectance 0.5% Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6.35 mm (0.25", Mount) Substrate N-BK7, Polymer Film Shape Round Clear Aperture 17.8 mm Surface Quality 60-40 scratch-dig Operating Temperature 0 - 40 °C Retardance λ/4 Angle of Incidence 0 - 30° Beam Deviation < 1' Supplier Location New Jersey, USA See product details More from Edmund Optics
Wire Grid Linear Polarizer	> 1415:1 (0°, 550 nm)	-	400 - 1200 nm	In stock	$ 86.92
Product Code Wavelength Range 400 - 1200 nm Transmittance 84.9% (550 nm) Dimensions 25 x 25 mm Thickness 0.19 mm Extinction Ratio > 1415:1 (0°, 550 nm) Substrate Aluminium Wires on COP Shape Square Thickness Tolerance ±0.03 mm Operating Temperature 60 °C, 90 °C (Maximum) 105 °C Angle of Incidence 0 - 45° Supplier Location New Jersey, USA See product details More from Edmund Optics
Polarizing Cube Beamsplitter	1000:1	-	1520 - 1550 nm	In stock	$ 848.00
Product Code Wavelength Range 1520 - 1550 nm Center Wavelength 1550 nm Dimensions 12.7 x 12.7 x 12.7 mm (+0/-0.3 mm) Extinction Ratio 1000:1 Substrate Fused Silica Shape Cube Clear Aperture 11.43 x 11.43 x 11.43 mm Surface Quality 40-20 scratch-dig Damage Threshold Pulsed 20 J/cm² (10 ns, 20 Hz, 1064 nm) Beam Deviation < 3' Surface Irregularity λ/6 (PV, Flatness) Supplier Location New Jersey, USA See product details More from Edmund Optics
Glan-Taylor Polarizer	< 500000:1	-	350 - 2300 nm	Contact Supplier	$ 1240.20
Product Code Wavelength Range 350 - 2300 nm Coating Magnesium Fluoride Diameter 25.4 mm (1") Dimensions Ø 25.4 x 21 mm Extinction Ratio < 500000:1 Substrate Calcite Shape Glan Taylor Prism Clear Aperture 12.7 mm (0.5") Surface Quality 20-10 scratch-dig Transmitted Wavefront Error λ/4 (632.8 nm, RMS) λ/2 (632.8 nm, P-V) Damage Threshold Pulsed 2 J/cm² (10 ns, 10 Hz, 1064 nm) Beam Deviation < 3' Length 21 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Polarizing Cube Beamsplitter	1000:1	< 0.25% (532 nm, Absolute) > 99.5% (s-pol)	532 nm (Center Wavelength)	In stock	$ 256.52
Product Code Wavelength Range 532 nm (Center Wavelength) Center Wavelength 532 nm Reflectance < 0.25% (532 nm, Absolute) > 99.5% (s-pol) Transmittance > 95% (p-pol) Dimensions 5 x 5 x 5 mm (±0.1 mm) Extinction Ratio 1000:1 Substrate N-BK7 Shape Cube Clear Aperture 4.5 x 4.5 x 4.5 mm Surface Quality 40-20 scratch-dig Beam Deviation ±3' Surface Irregularity λ/4 (Flatness) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Half Waveplate	-	< 0.3% (366 nm)	366 nm (Center Wavelength)	In stock	$ 540.60
Product Code Wavelength Range 366 nm (Center Wavelength) Center Wavelength 366 nm Reflectance < 0.3% (366 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 6 mm (Mount) Substrate Crystalline Quartz Shape Round Clear Aperture > 20 mm Thickness Tolerance ±0.2 mm Surface Quality 20-10 scratch-dig Retardance λ/2 Transmitted Wavefront Error λ/10 (632.8 nm, RMS) Diameter Tolerance +0/-0.2 mm Retardance Order Zero Supplier Location New Jersey, USA See product details More from Edmund Optics
Polymer Linear Polarizer	5000:1 (400 - 760 nm) 1350:1 (760 - 2200 nm, Typical)	-	400 - 2200 nm	In stock	$ 477.00
Product Code Wavelength Range 400 - 2200 nm Coating Uncoated Transmittance 26% (400 - 760 nm, Single) 40% (760 - 2200 nm, Single) Dimensions 50 x 50 mm Thickness 0.58 mm Extinction Ratio 5000:1 (400 - 760 nm) 1350:1 (760 - 2200 nm, Typical) Substrate Polymer Film Shape Square Thickness Tolerance ±0.1 mm Operating Temperature 70 °C (Heat Resistance) -51 °C (Cold Resistance) Length 50 mm Width 50 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Polarizing Cube Beamsplitter	1000:1	< 0.25% (632.8 nm, Absolute) > 99.5% (s-pol)	632.8 nm (Center Wavelength)	In stock	$ 306.34
Product Code Wavelength Range 632.8 nm (Center Wavelength) Center Wavelength 632.8 nm Reflectance < 0.25% (632.8 nm, Absolute) > 99.5% (s-pol) Transmittance > 95% (p-pol) Dimensions 20 x 20 x 20 mm (±0.1 mm) Extinction Ratio 1000:1 Substrate N-BK7 Shape Cube Clear Aperture 18 x 18 x 18 mm Surface Quality 40-20 scratch-dig Beam Deviation ±3' Surface Irregularity λ/4 (Flatness) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Polymer Linear Polarizer	1000:1	-	750 - 850 nm	Contact Supplier	$ 577.70
Product Code Wavelength Range 750 - 850 nm Transmittance 30% Diameter 50 mm Dimensions Ø 50 mm Thickness 2 mm Parallelism < 4' Extinction Ratio 1000:1 Substrate B 270, Polymer Film Shape Round Thickness Tolerance ±0.2 mm Operating Temperature -25 to 65 °C Transmittance Tolerance ±3% Supplier Location New Jersey, USA See product details More from Edmund Optics
Polarizing Cube Beamsplitter	1000:1	< 0.25% (1064 nm, Absolute) > 99.5% (s-pol)	1064 nm (Center Wavelength)	In stock	$ 313.76
Product Code Wavelength Range 1064 nm (Center Wavelength) Center Wavelength 1064 nm Reflectance < 0.25% (1064 nm, Absolute) > 99.5% (s-pol) Transmittance > 95% (p-pol) Dimensions 25 x 25 x 25 mm (±0.1 mm) Extinction Ratio 1000:1 Substrate N-BK7 Shape Cube Clear Aperture 22.5 x 22.5 x 22.5 mm Surface Quality 40-20 scratch-dig Beam Deviation ±3' Surface Irregularity λ/4 (Flatness) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Polymer Linear Polarizer	5000:1	-	400 - 700 nm	In stock	$ 31.80
Product Code Wavelength Range 400 - 700 nm Coating Uncoated Transmittance 40% (Single) Dimensions 50 x 50 mm (+0/-0.5 mm) Thickness 0.4 mm Extinction Ratio 5000:1 Substrate Polymer Film Shape Square Thickness Tolerance ±0.05 mm Length 50 mm Width 50 mm Transmittance Tolerance ±2% Supplier Location New Jersey, USA See product details More from Edmund Optics
Quarter Waveplate	-	-	488 nm (Center Wavelength)	In stock	$ 527.88
Product Code Wavelength Range 488 nm (Center Wavelength) Center Wavelength 488 nm Coating AR/Transmissive V-Coating (488 nm) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 7.8 mm Parallelism 0.5'' Substrate Crystalline Quartz Shape Round Clear Aperture 15 mm Thickness Tolerance +0/-0.25 mm Surface Quality 10-5 scratch-dig Retardance λ/4 Transmitted Wavefront Error λ/10 (P-V) Coating Features Narrowband Diameter Tolerance +0/-0.25 mm Retardance Order 0 Supplier Location New Jersey, USA See product details More from Edmund Optics
Polymer Linear Polarizer	9000:1 (555 nm)	-	400 - 700 nm	In stock	$ 26.50
Product Code Wavelength Range 400 - 700 nm Coating Uncoated Transmittance 42% (Single) Diameter 40 mm Dimensions Ø 40 mm Thickness 1.02 mm Extinction Ratio 9000:1 (555 nm) Substrate Polymer Film Shape Round Thickness Tolerance ±0.25 mm Operating Temperature -10 to 60 °C Diameter Tolerance ±0.3 mm Transmittance Tolerance ±2% Supplier Location New Jersey, USA See product details More from Edmund Optics
