Optomechanics

Optomechanics includes optical mounts, posts, stages, bases, positioners, actuators, and transducers that hold and move optical components and can be assembled to perform a specific function.

Product	Type Of Movement	Type Of Drive	Construction	Availability	Price (USD)
Multi-Axis Kinematic Mount	XYZ & Tip-Tilt	Manual	Black Anodized Aluminum	In stock	$ 824.25
Product Code Type of Movement XYZ & Tip-Tilt Type of Drive Manual Construction Black Anodized Aluminum Type of Optics Circular Linear Travel ±1.5 mm, ±2 mm (XY Axis, Z Axis) Weight 660 g Size of Compatible Optics Ø 50 - 50.8 mm Clear Aperture 46 mm Maximum Thickness of Optics 12.5 mm Tilt Angle ±34.91 mrad (±2°) Tip Angle ±34.91 mrad (±2°) Travel Z-Axis ±1.5 mm Travel XY-Axis ±2 mm Compatible Posts M6 x 1 Supplier Location New Jersey, USA See product details More from Edmund Optics
Lens Tube	Fixed	Manual	Anodized Aluminum	In stock	$ 27.83
Product Code Type of Movement Fixed Type of Drive Manual Construction Anodized Aluminum Outer Diameter 30 mm Length 75 mm Clear Aperture 22 mm Thread Type SM1 Supplier Location New Jersey, USA See product details More from Edmund Optics
Stepper Motor Actuator	X / Linear	Lead Screw, Manual, Stepper Motor	-	In stock	$ 1395.00
Product Code Manufacturer Zaber Type of Movement X / Linear Type of Drive Lead Screw, Manual, Stepper Motor System of Measurement Metric Linear Travel 25 mm 25.4 mm (1") Weight 140 g Travel Resolution 47.63 nm (Resolution) < 1 μm (Repeatability) 40 μm (Unidirectional, Accuracy) Dimensions 137.1 mm Operating Temperature 0 - 50 °C Key Features Integrated Controller Supply Voltage 24 - 48 V Type of Encoder Quadrature, Rotary Driving Force 25 N Backlash <15 Velocity 2.9 × 10^-5 - 30 mm/sec Interfaces RS-232 Supplier Location New Jersey, USA See product details More from Edmund Optics
Micrometer Head	X / Linear	Manual	-	In stock	$ 74.03
Product Code Manufacturer Mitutoyo Type of Movement X / Linear Type of Drive Manual System of Measurement Metric Linear Travel 13 mm Length 15.5 mm (Spindle) 9.5 mm (Stem) 62 mm (Overall) Graduation 0.01 mm Spindle Diameter 5 mm Stem Diameter 9.5 mm Stem/Spindle Plain/Flat Supplier Location New Jersey, USA See product details More from Edmund Optics
Kinematic Rectangular Optics Mount	Tip-Tilt	Manual	Aluminum Plates Brass Thread Bushings Stainless Steel Screws	In stock	$ 134.40
Product Code Type of Movement Tip-Tilt Type of Drive Manual Construction Aluminum Plates Brass Thread Bushings Stainless Steel Screws Type of Optics Rectangular Square Linear Travel 8 mm Size of Compatible Optics 12.7 - 101.6 mm Clear Aperture 25 mm Maximum Thickness of Optics 0.5 - 3.7 mm Angular Resolution 19.39 μrad (per 1° Knob Rotation, Sensitivity) 6.981 mrad (per 0.25 mm turn, Tolerance) Tilt Angle ±87.27 mrad (±5°) Tip Angle ±87.27 mrad (±5°) Travel Z-Axis 8 mm Number of Adjustment Screws 3 Adjustment Screw Pitch 0.25 mm Compatible Posts M4 x 0.7, 8-32 Supplier Location New Jersey, USA See product details More from Edmund Optics
Honeycomb Optical Breadboard	-	-	Stainless Steel	Contact Supplier	$ 1600.00
Product Code Construction Stainless Steel System of Measurement English Thickness 50 mm Mounting Thread 1/4-20 Number of Holes 765 Weight 28.12 kg (62 lbs) Length 1193.8 mm (47") Dimensions 1193.8 mm (47") 482.6 mm (19") 50 mm Width 482.6 mm (19") Flatness 130 μm Threads Centerline 1" Core Construction ≤3 Supplier Location New Jersey, USA See product details More from Edmund Optics
Rotating & Kinematic Mount	Rotary & Tip-Tilt	Manual	Aluminum Plates Brass Thread Bushings Stainless Steel Screws	In stock	$ 189.00
Product Code Type of Movement Rotary & Tip-Tilt Type of Drive Manual Construction Aluminum Plates Brass Thread Bushings Stainless Steel Screws Type of Optics Circular Linear Travel 9 mm Size of Compatible Optics 25 - 25.4 mm Clear Aperture 22 mm Angular Resolution 19.39 μrad (per 1° Knob Rotation, Sensitivity) 6.981 mrad (per 0.25 mm turn, Tolerance) Minimum Thickness of Optics 1.8 mm Tilt Angle ±87.27 mrad (±5°) Tip Angle ±87.27 mrad (±5°) Coarse Rotation 360° Number of Adjustment Screws 3 Adjustment Screw Pitch 0.25 mm Compatible Posts M4 x 0.7, 8-32 Supplier Location New Jersey, USA See product details More from Edmund Optics
X/Linear Stage	X / Linear	Lead Screw, Stepper Motor	-	In stock	$ 2815.00
Product Code Manufacturer Zaber Type of Movement X / Linear Type of Drive Lead Screw, Stepper Motor System of Measurement Metric Load Capacity 98.07 N (10 kg) Linear Travel 100 mm 101.6 mm (4") Platform Size 45 x 238.8 mm Weight 370 g Guide System Ball Bearing Travel Resolution 50 μm (Resolution) < 3 μm (Repeatability) 35 μm (Unidirectional, Accuracy) Height 21 mm Operating Temperature 0 - 50 °C Key Features Integrated Controller Supply Voltage 24 - 48 V (Recommended) Type of Encoder Quadrature, Rotary Backlash <12 Velocity 3 × 10^-5 - 26 mm/sec Interfaces RS-232, USB Parallelism < 25 μm Supplier Location New Jersey, USA See product details More from Edmund Optics
Rotation Mount	Rotary	Manual	-	In stock	$ 164.85
Product Code Type of Movement Rotary Type of Drive Manual Length 25.05 mm Clear Aperture 22 mm Thread Type C-Mount Compatible Posts M6 x 1 Supplier Location New Jersey, USA See product details More from Edmund Optics
Filter Wheel	Rotary	Manual	-	In stock	$ 118.65
Product Code Type of Movement Rotary Type of Drive Manual Type of Optics Circular Size of Compatible Optics 25 - 25.4 mm Clear Aperture 23 mm Maximum Thickness of Optics 3.6 mm Number of Filters 6 Supplier Location New Jersey, USA See product details More from Edmund Optics
Threaded Mounting Cell	Fixed	Manual	Black Anodized Aluminum	In stock	$ 41.48
Product Code Type of Movement Fixed Type of Drive Manual Construction Black Anodized Aluminum System of Measurement Metric Type of Optics Circular, Cylindrical Tube Length 5 mm Size of Compatible Optics 6 mm Dimensions Ø 25 mm Maximum Thickness of Optics 5 mm Thread Type M23.2x0.75 Supplier Location New Jersey, USA See product details More from Edmund Optics
Adapter Plate for Stages	-	Manual	Black Anodized Aluminum	In stock	$ 133.35
Product Code Type of Drive Manual Construction Black Anodized Aluminum System of Measurement English Dimensions 70 x 70 x 105 mm Compatible Stage Size 70 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
90° Angle Bracket	-	-	-	In stock	$ 131.25
Product Code System of Measurement English Supplier Location New Jersey, USA See product details More from Edmund Optics
Motorized Filter Wheel	Rotary	Motorized	-	In stock	$ 359.10
Product Code Type of Movement Rotary Type of Drive Motorized Type of Optics Circular Size of Compatible Optics Ø 50 mm Maximum Thickness of Optics 5.5 mm Number of Filters 5 Supplier Location New Jersey, USA See product details More from Edmund Optics
Gimbal Mirror Holder	Gimbal	Manual	-	In stock	$ 501.90
Product Code Type of Movement Gimbal Type of Drive Manual Type of Optics Circular Size of Compatible Optics Ø 50 - 50.8 mm Clear Aperture 46 mm Maximum Thickness of Optics 11 mm Tilt Angle ±69.81 mrad (±4°) Tip Angle ±69.81 mrad (±4°) Coarse Rotation 360° Compatible Posts M6 x 1 Supplier Location New Jersey, USA See product details More from Edmund Optics

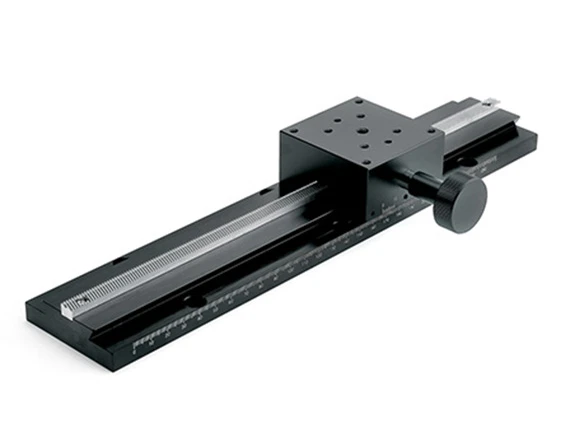

X/Linear Stage	X / Linear	Rack and Pinion	Black Anodized Aluminum	In stock	$ 256.20
Product Code Type of Movement X / Linear Type of Drive Rack and Pinion Construction Black Anodized Aluminum System of Measurement Metric Mounting Thread M4x0.7, M6x1 Load Capacity 19.61 N (2 kg, Vertical) 49.03 N (5 kg, Normal) Number of Holes 1 (M6x1) 8 (M4x0.7) Linear Travel 125 mm Platform Size 62 x 60 mm Travel Resolution 100 - 250 μm (Accuracy) Graduation 1 mm (Track) 0.1 mm (Vernier Reading) Travel per Rotation 18 mm SHCS C'Bore (4) 6.5mm Thru on Track Supplier Location New Jersey, USA See product details More from Edmund Optics
Rotating & Kinematic Mount	Rotary & Tip-Tilt	Manual	Aluminum Plates Brass Thread Bushings Stainless Steel Screws	In stock	$ 180.60
Product Code Type of Movement Rotary & Tip-Tilt Type of Drive Manual Construction Aluminum Plates Brass Thread Bushings Stainless Steel Screws Type of Optics Circular Linear Travel 9 mm Size of Compatible Optics 12.5 - 12.7 mm Clear Aperture 10 mm Angular Resolution 19.39 μrad (per 1° Knob Rotation, Sensitivity) 6.981 mrad (per 0.25 mm turn, Tolerance) Minimum Thickness of Optics 1.8 mm Tilt Angle ±87.27 mrad (±5°) Tip Angle ±87.27 mrad (±5°) Coarse Rotation 360° Number of Adjustment Screws 3 Adjustment Screw Pitch 0.25 mm Compatible Posts M4 x 0.7, 8-32 Supplier Location New Jersey, USA See product details More from Edmund Optics
Post Holder	-	-	-	In stock	$ 16.80
Product Code System of Measurement English Mounting Thread 1/4-20 Length 101.6 mm (4") Compatible Posts 1/2", 12.7 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
Carrier	X / Linear	Manual	Black Anodized Aluminum	In stock	$ 82.95
Product Code Type of Movement X / Linear Type of Drive Manual Construction Black Anodized Aluminum System of Measurement English Mounting Thread 1/4-20 Number of Holes 3 Length 12.7 mm (0.5") Guide System Dovetail Width 12.7 mm (0.5") Supplier Location New Jersey, USA See product details More from Edmund Optics
Spacer	-	-	Brass Spacer Ring	In stock	$ 6.83
Product Code Construction Brass Spacer Ring Thickness 25 mm Outer Diameter 25.4 mm (1") Inner Diameter 22 mm Supplier Location New Jersey, USA See product details More from Edmund Optics
