Material Processing Systems

Micro 3D Printing Machine - FemtoMPP_Standard

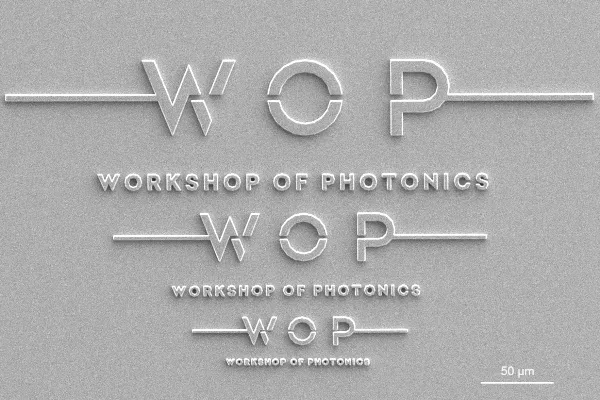

Workshop of Photonics Micro 3D Printing Machine image 0

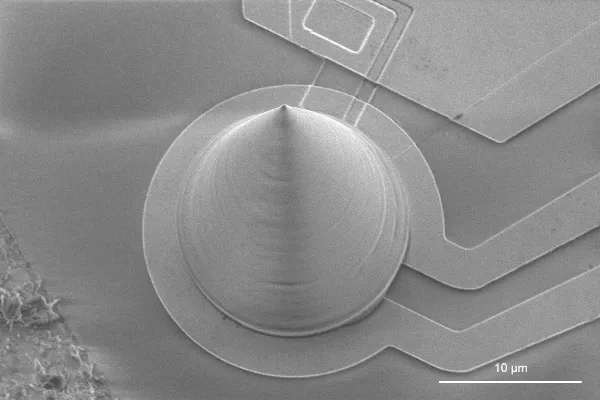

Workshop of Photonics Micro 3D Printing Machine image 1

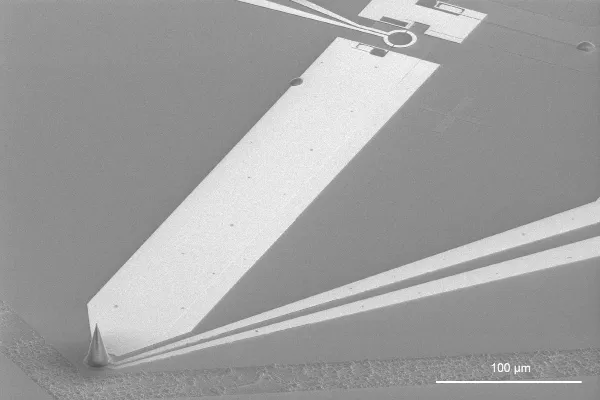

Workshop of Photonics Micro 3D Printing Machine image 2

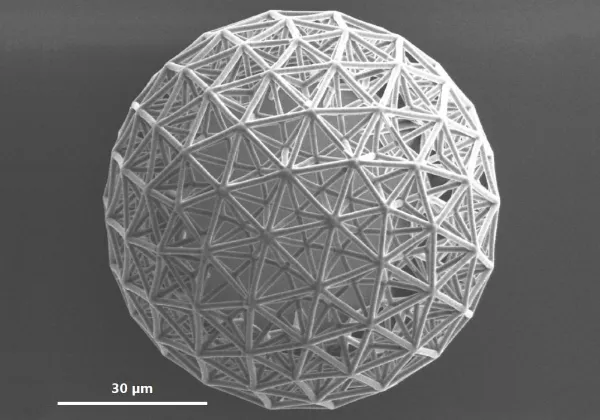

Workshop of Photonics Micro 3D Printing Machine image 3
Workshop of Photonics Micro 3D Printing Machine image 4
5/5 images
Updated:
1 day ago

Micro 3D Printing Machine

Product Code
Price
Request quote
Availability
Contact Supplier
Product Details
See all Workshop of Photonics products

Product Specifications

FemtoMPP is a laser micromachining workstation specifically optimized for multiphoton polymerization (MPP) technology. It is ideal for scientific laboratories and R&D centers that require custom solutions for various tasks. The workstation is essentially a complete laser laboratory on an optical table, featuring a high-end industrial-grade femtosecond laser, high-accuracy linear positioning stages, and high-performance galvanometer scanners. It also includes versatile micromachining software, SCA, which enhances its functionality. FemtoMPP is designed to save experiment time and facilitate the training of new users, making it particularly beneficial for laboratories with multiple researchers. Its flexibility allows for system expansion and upgrades as new requirements emerge. The workstation excels in fabricating complex objects with submicron resolution, offering high-speed and ultra-high precision micromachining. It ensures efficient beam delivery and power control, with a unique software interface that synchronizes object movement and laser pulses in time and space, controlling all hardware units seamlessly.

Product Code
Applications
Fabrication of Complex Objects
Build Volume
10 x 10 x 0.5 mm
Key Features
High-Performance Galvanometer Scanners
Real-Time Motion and Pulse Synchronization
Laser Source Details
Single or dual-wavelength
Layer Distance
0.5 - 1 μm
Maximum Object Height
1 mm
Micromachining Technologies
Additive Micromanufacturing
Minimum Surface Roughness
50 nm
Movement Speed
0.1 - 1 mm/s (Scanning Speed)
Positioning Accuracy
0.7 μm (Horizontal Resolution)
1.5 μm (Vertical Resolution)
Power Control
Integrated External Control
Smallest Feature Size
300 nm
System Components
System Control Software
Optical Table
Scanning Unit
Beam Delivery System
Laser Power Control Unit
Laser Source
Sample Holder
Polarization Control Unit
Sample Positioning System
Travel Range
60 mm (X-Axis)
60 mm (Y-Axis)
5 mm (Z-Axis)
Vibration Control
Passive
Supplier Location
Lithuania
