Cylindrical Lenses

Optical components that feature a cylindrical surface that focuses or diverges light on a single axis.

Product	Focal Length	Wavelength Range	Dimensions	Availability	Price (USD)
Plano-Convex Cylinder	50 mm (±1.5 mm)	425 - 675 nm	Ø 10 mm	In stock	$ 141.00
Product Code Wavelength Range 425 - 675 nm Coating BBAR (425 - 675 nm) Reflectance < 0.4% (425 - 675 nm, Average) Diameter 10 mm Dimensions Ø 10 mm Thickness 2 mm (Center) 1.51 mm (Edge) Edge Thickness 1.51 mm Focal Length 50 mm (±1.5 mm) Substrate N-BK7 Radius of Curvature 25.84 mm Center Thickness 2 mm Back Focal Length 46.68 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Round Coating Features Broadband Center Thickness Tolerance ±0.1 mm f-Number 5 Numerical Aperture 0.1 Wedge Tolerance ±7' 30'' Supplier Location New Jersey, USA See product details More from Edmund Optics

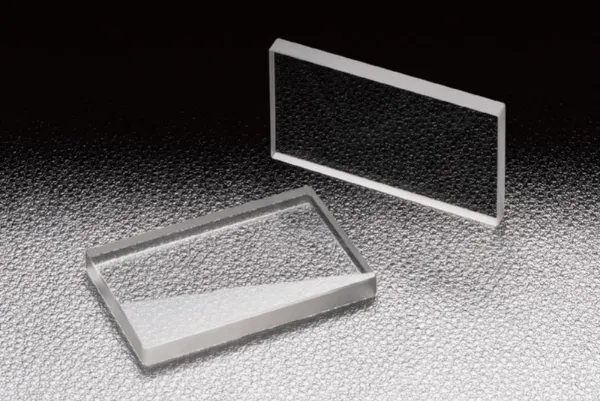

Plano-Convex Cylinder	250 mm	750 - 1550 nm	30 x 50 mm	6 - 12 weeks	$ 220.00
Product Code Wavelength Range 750 - 1550 nm Center Wavelength 546.1 nm Coating BBAR (750 - 1550 nm) Transmittance > 98.5% (Average) Dimensions 30 x 50 mm Thickness 5 mm (Center) 4 mm (Edge) Edge Thickness 4 mm Focal Length 250 mm Substrate BK7 Radius of Curvature 129.75 mm Center Thickness 5 mm Back Focal Length 246.7 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Coating Features Broadband Damage Threshold Pulsed 4 J/cm² (10 ns, 20 Hz) Refractive Index 1.519 Weight 19 g Supplier Location California, USA See product details More from OptoSigma
Plano-Convex Cylinder	1500 mm	195 - 2100 nm	-	4 - 5 days	$ 105.00
Product Code Wavelength Range 195 - 2100 nm Thickness 2.2 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 1500 mm Substrate UV Fused Silica Radius of Curvature 713.3 mm Center Thickness 2.2 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Surface Irregularity λ (633 nm) Thickness Tolerance ±0.5 mm Supplier Location Lithuania See product details More from EKSMA Optics
Plano-Convex Cylinder	40 mm	546.1 nm (Center Wavelength)	20 x 70 mm	6 - 12 weeks	$ 329.00
Product Code Wavelength Range 546.1 nm (Center Wavelength) Center Wavelength 546.1 nm Coating Uncoated Dimensions 20 x 70 mm Thickness 5 mm (Center) 2.4 mm (Edge) Edge Thickness 2.4 mm Focal Length 40 mm Substrate BK7 Radius of Curvature 20.76 mm Center Thickness 5 mm Back Focal Length 36.7 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Refractive Index 1.519 Weight 18 g Supplier Location California, USA See product details More from OptoSigma
Plano-Convex Cylinder	100 mm (±1 mm)	600 - 1050 nm	Ø 25.4 mm (1")	In stock	$ 109.00
Product Code Wavelength Range 600 - 1050 nm Coating BBAR (600 - 1050 nm) Reflectance < 0.5% (600 - 1050 nm, Average) Diameter 25.4 mm (1") Dimensions Ø 25.4 mm (1") Thickness 3.16 mm (Center) 1.58 mm (Edge) Edge Thickness 1.58 mm Focal Length 100 mm (±1 mm) Substrate N-BK7 Radius of Curvature 51.68 mm (S1) Center Thickness 3.16 mm Back Focal Length 97.92 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Shape Round Coating Features Broadband Center Thickness Tolerance ±0.1 mm Surface Irregularity λ/4 (632.8 nm, PV) Clear Aperture 22.86 mm f-Number 4 Numerical Aperture 0.13 Diameter Tolerance +0/-0.025 mm Wedge < 5' (Plano Axis) < 5' (Power Axis) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics

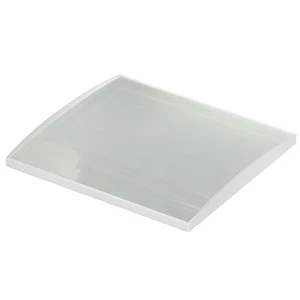

Plano-Convex Cylinder	300.12 mm (±3.0012 mm)	650 - 1050 nm	62 x 60 mm	In stock	$ 232.84
Product Code Wavelength Range 650 - 1050 nm Center Wavelength 587.6 nm Coating BBAR (650 - 1050 nm) Reflectance < 0.5% (650 - 1050 nm, Average) Dimensions 62 x 60 mm Thickness 5.9 mm (Center) 3 mm (Edge) Edge Thickness 3 mm Focal Length 300.12 mm (±3.0012 mm) Substrate N-BK7 Radius of Curvature 155.1 mm Center Thickness 5.9 mm Back Focal Length 296.2 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Coating Features Broadband Damage Threshold Pulsed 7.5 J/cm² (0.144 mm, 10 ns, 10 Hz, 810 nm) Center Thickness Tolerance ±0.1 mm Surface Irregularity 3λ/2 (Cylindrical Surface) λ/2 (Flatness) Clear Aperture > 55.8 x 54 mm Centration < 5' (f ≤ 50 mm) < 3' (f > 50 mm) Length 62 mm Height Tolerance +0/-0.1 mm Height 60 mm Length Tolerance +0/-0.1 mm Supplier Location New Jersey, USA See product details More from Thorlabs

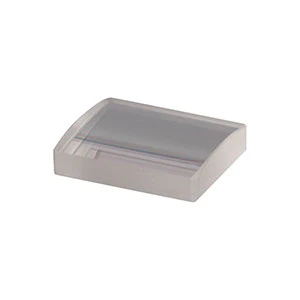

Plano-Convex Cylinder	40 mm (±0.4 mm)	350 - 2000 nm (Uncoated)	12 x 10 mm	In stock	$ 62.95
Product Code Wavelength Range 350 - 2000 nm (Uncoated) Center Wavelength 587.6 nm Coating Uncoated Dimensions 12 x 10 mm Thickness 2.6 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 40 mm (±0.4 mm) Substrate N-BK7 Radius of Curvature 20.7 mm Center Thickness 2.6 mm Back Focal Length 38.3 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Center Thickness Tolerance ±0.1 mm Surface Irregularity 3λ/2 (Cylindrical Surface) λ/2 (Flatness) Clear Aperture > 10.8 x 9 mm Centration < 5' (f ≤ 50 mm) < 3' (f > 50 mm) Length 12 mm Height Tolerance +0/-0.1 mm Height 10 mm Length Tolerance +0/-0.1 mm Supplier Location New Jersey, USA See product details More from Thorlabs
Plano-Convex Cylinder	50 mm	200 - 2200 nm	25.4 x 25.4 mm	In stock	$ 147.00
Product Code Wavelength Range 200 - 2200 nm Coating Uncoated Dimensions 25.4 x 25.4 mm Thickness 5 mm (Center) 1.16 mm (Edge) Edge Thickness 1.16 mm Focal Length 50 mm Substrate Fused Silica Radius of Curvature 22.93 mm Center Thickness 5 mm Back Focal Length 46.58 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Square Center Thickness Tolerance ±0.1 mm Surface Irregularity λ/4 (632.8 nm, PV) Clear Aperture 22.86 x 22.86 mm f-Number 2 Numerical Aperture 0.17 Wedge < 3' (Plano Axis) < 4' 30'' (Power Axis) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics

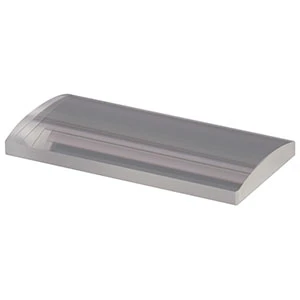

Plano-Convex Cylinder	75.6 mm (±0.756 mm)	350 - 2000 nm (Uncoated)	51 x 25.4 mm	In stock	$ 137.80
Product Code Wavelength Range 350 - 2000 nm (Uncoated) Center Wavelength 587.6 nm Coating Uncoated Dimensions 51 x 25.4 mm Thickness 5.1 mm (Center) 3 mm (Edge) Edge Thickness 3 mm Focal Length 75.6 mm (±0.756 mm) Substrate N-BK7 Radius of Curvature 39.1 mm Center Thickness 5.1 mm Back Focal Length 72.2 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Center Thickness Tolerance ±0.1 mm Surface Irregularity 3λ/2 (Cylindrical Surface) λ/2 (Flatness) Clear Aperture > 45.9 x 22.86 mm Centration < 5' (f ≤ 50 mm) < 3' (f > 50 mm) Length 51 mm Height Tolerance +0/-0.1 mm Height 25.4 mm (1") Length Tolerance +0/-0.1 mm Supplier Location New Jersey, USA See product details More from Thorlabs
Plano-Convex Cylinder	25 mm	310 - 2700 nm	-	4 - 5 days	$ 66.00
Product Code Wavelength Range 310 - 2700 nm Thickness 14 mm (Center) 2.5 mm (Edge) Edge Thickness 2.5 mm Focal Length 25 mm Substrate BK7 Radius of Curvature 13 mm Center Thickness 14 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Surface Irregularity λ (633 nm) Thickness Tolerance ±0.5 mm Supplier Location Lithuania See product details More from EKSMA Optics
Plano-Convex Cylinder	150 mm (±4.5 mm)	600 - 1050 nm	12.7 x 12.7 mm	In stock	$ 84.50
Product Code Wavelength Range 600 - 1050 nm Coating BBAR (600 - 1050 nm) Reflectance < 0.5% (600 - 1050 nm, Average) Dimensions 12.7 x 12.7 mm Thickness 2.65 mm (Center) 2.39 mm (Edge) Edge Thickness 2.39 mm Focal Length 150 mm (±4.5 mm) Substrate N-BK7 Radius of Curvature 77.52 mm Center Thickness 2.65 mm Back Focal Length 148.25 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Square Coating Features Broadband Center Thickness Tolerance ±0.1 mm f-Number 11.81 Numerical Aperture 0.04 Supplier Location New Jersey, USA See product details More from Edmund Optics
Plano-Convex Cylinder	75 mm	310 - 2700 nm	-	Contact Supplier	$ 61.00
Product Code Wavelength Range 310 - 2700 nm Thickness 4.1 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 75 mm Substrate BK7 Radius of Curvature 38.9 mm Center Thickness 4.1 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Surface Irregularity λ (633 nm) Thickness Tolerance ±0.5 mm Supplier Location Lithuania See product details More from EKSMA Optics
Plano-Convex Cylinder	80 mm	400 - 1200 nm	20 x 30 mm	6 - 12 weeks	$ 250.00
Product Code Wavelength Range 400 - 1200 nm Center Wavelength 546.1 nm Coating Uncoated Dimensions 20 x 30 mm Thickness 4 mm (Center) 2.6 mm (Edge) Edge Thickness 2.6 mm Focal Length 80 mm Substrate Synthetic Fused Silica Radius of Curvature 36.8 mm Center Thickness 4 mm Back Focal Length 77.3 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Refractive Index 1.46 Weight 6 g Supplier Location California, USA See product details More from OptoSigma
Plano-Convex Cylinder	1500 mm	310 - 2700 nm	-	4 - 5 days	$ 65.00
Product Code Wavelength Range 310 - 2700 nm Thickness 2.2 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 1500 mm Substrate BK7 Radius of Curvature 778.1 mm Center Thickness 2.2 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Surface Irregularity λ (633 nm) Thickness Tolerance ±0.5 mm Supplier Location Lithuania See product details More from EKSMA Optics
Plano-Convex Cylinder	50 mm	400 - 1200 nm	20 x 70 mm	6 - 12 weeks	$ 479.00
Product Code Wavelength Range 400 - 1200 nm Center Wavelength 546.1 nm Coating Uncoated Dimensions 20 x 70 mm Thickness 4 mm (Center) 1.7 mm (Edge) Edge Thickness 1.7 mm Focal Length 50 mm Substrate Synthetic Fused Silica Radius of Curvature 23 mm Center Thickness 4 mm Back Focal Length 47.3 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Refractive Index 1.46 Weight 13 g Supplier Location California, USA See product details More from OptoSigma
Plano-Convex Cylinder	50 mm (±0.5 mm)	750 - 1550 nm	25.4 x 25.4 mm	In stock	$ 114.00
Product Code Wavelength Range 750 - 1550 nm Coating BBAR (750 - 1550 nm) Reflectance < 0.7% (750 - 1550 nm, Average) < 1.5% (750 - 800 nm, Absolute) < 1% (800 - 1550 nm, Absolute) Dimensions 25.4 x 25.4 mm Thickness 4.34 mm (Center) 1 mm (Edge) Edge Thickness 1 mm Focal Length 50 mm (±0.5 mm) Substrate N-BK7 Radius of Curvature 25.84 mm (S1) Center Thickness 4.34 mm Back Focal Length 47.14 mm Surface Quality 40-20 scratch-dig Type of Curvature Plano-Convex Shape Square Coating Features Broadband Center Thickness Tolerance ±0.1 mm Surface Irregularity λ/4 (632.8 nm, PV) Clear Aperture 22.86 x 22.86 mm f-Number 2 Numerical Aperture 0.25 Wedge < 5' (Plano Axis) < 5' (Power Axis) Bevels Protective bevel as needed Supplier Location New Jersey, USA See product details More from Edmund Optics
Plano-Convex Cylinder	75 mm (±2.25 mm)	350 - 2200 nm	12.5 x 25 mm	In stock	$ 64.00
Product Code Wavelength Range 350 - 2200 nm Coating Uncoated Dimensions 12.5 x 25 mm Thickness 2 mm (Center) 1.49 mm (Edge) Edge Thickness 1.49 mm Focal Length 75 mm (±2.25 mm) Substrate N-BK7 Radius of Curvature 38.76 mm Center Thickness 2 mm Back Focal Length 73.68 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Center Thickness Tolerance ±0.1 mm f-Number 6 Numerical Aperture 0.08 Supplier Location New Jersey, USA See product details More from Edmund Optics

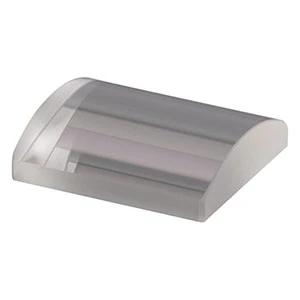

Plano-Convex Cylinder	25.4 mm (±0.254 mm, 1")	350 - 2000 nm (Uncoated)	18 x 16 mm	In stock	$ 82.56
Product Code Wavelength Range 350 - 2000 nm (Uncoated) Center Wavelength 587.6 nm Coating Uncoated Dimensions 18 x 16 mm Thickness 4.7 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 25.4 mm (±0.254 mm, 1") Substrate N-BK7 Radius of Curvature 13.1 mm Center Thickness 4.7 mm Back Focal Length 22.3 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Center Thickness Tolerance ±0.1 mm Surface Irregularity 3λ/2 (Cylindrical Surface) λ/2 (Flatness) Clear Aperture > 16.2 x 14.4 mm Centration < 5' (f ≤ 50 mm) < 3' (f > 50 mm) Length 18 mm Height Tolerance +0/-0.1 mm Height 16 mm Length Tolerance +0/-0.1 mm Supplier Location New Jersey, USA See product details More from Thorlabs
Plano-Convex Cylinder	150 mm	546.1 nm (Center Wavelength)	30 x 40 mm	2 weeks	$ 150.00
Product Code Wavelength Range 546.1 nm (Center Wavelength) Center Wavelength 546.1 nm Coating Uncoated Dimensions 30 x 40 mm Thickness 5 mm (Center) 3.5 mm (Edge) Edge Thickness 3.5 mm Focal Length 150 mm Substrate BK7 Radius of Curvature 77.85 mm Center Thickness 5 mm Back Focal Length 146.7 mm Surface Quality 20-10 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Refractive Index 1.519 Weight 16 g Supplier Location California, USA See product details More from OptoSigma

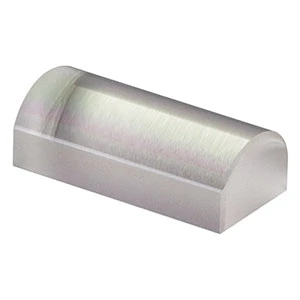

Plano-Convex Cylinder	6.4 mm (±0.064 mm)	1050 - 1700 nm	12 x 6 mm	In stock	$ 127.09
Product Code Wavelength Range 1050 - 1700 nm Center Wavelength 587.6 nm Coating BBAR (1050 - 1700 nm) Reflectance < 0.5% (1050 - 1700 nm, Average) Dimensions 12 x 6 mm Thickness 4 mm (Center) 2 mm (Edge) Edge Thickness 2 mm Focal Length 6.4 mm (±0.064 mm) Substrate N-BK7 Radius of Curvature 3.3 mm Center Thickness 4 mm Back Focal Length 3.7 mm Surface Quality 60-40 scratch-dig Type of Curvature Plano-Convex Shape Rectangular Coating Features Broadband Damage Threshold Pulsed 7.5 J/cm² (0.123 mm, 10 ns, 10 Hz, 1542 nm) Center Thickness Tolerance ±0.2 mm Surface Irregularity 3λ/2 (Cylindrical Surface) λ/2 (Flatness) Clear Aperture > 10.8 x 5.4 mm Centration < 5' (f ≤ 50 mm) < 3' (f > 50 mm) Length 12 mm Height Tolerance +0/-0.1 mm Height 6 mm Length Tolerance +0/-0.1 mm Supplier Location New Jersey, USA See product details More from Thorlabs
