High-Pass Amplifier - FIL-01
High-Pass Amplifier
Product Specifications
The FIL-01 by SILENTSYS SAS is an electronic high-pass filter and amplifier module with exceptional voltage noise performance. Acting as an AC coupling filter, it removes DC input signal components with a 600 mHz cut-off frequency. With a 2000x (66 dB) amplification factor, it ensures ultralow noise and high efficiency in a sleek aluminum enclosure with standard connectors.
- Product Code
- Dimensions
- 125 x 80 x 35 mm
- Frequency Bandwidth
- 30 MHz
- Gain
- 66 dB
- High Cut-Off Frequency
- 600 mHz
- Input Channels
- 1
- Interface

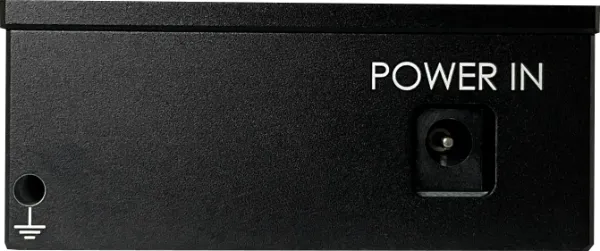

- P1J (Power Supply Input)

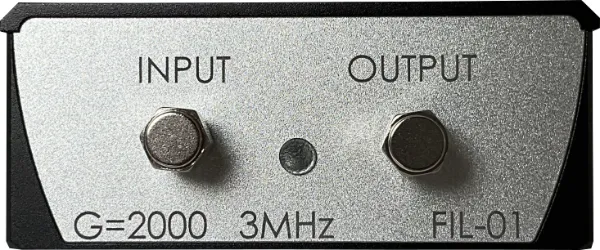

SMA (Input, Output) - Key Features
- Short Circuit Protections
Ultralow Noise - Operating Temperature
- 0 - 40 °C
- Output Channels
- 1
- Weight
- ~ 400 g
- Supplier Location
- France
Technical Documents
