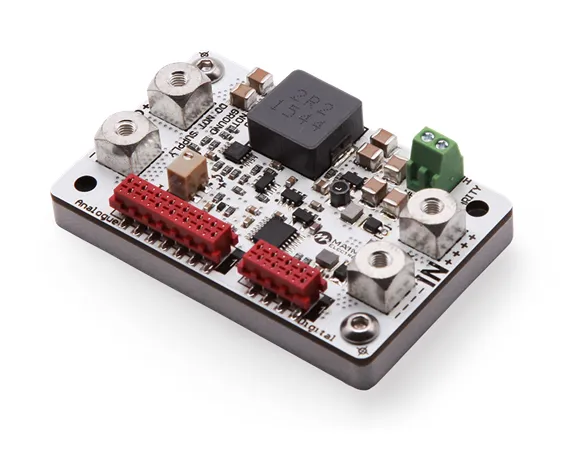

Optogama Laser Diode Current Controller image 0
Optogama Laser Diode Current Controller image 1
Optogama Laser Diode Current Controller image 2
Optogama Laser Diode Current Controller image 3
4/4 images
Updated:
15 hours ago

Laser Diode Current Controller

Product Code
Price
$ 792.68
Availability
Contact Supplier
Product Details
See all Optogama products

Product Specifications

The LD Current Driver 30A 10V SF6030 by Optogama is a table-top current driver designed for precision control of laser diodes in both CW and QCW modes. It delivers output currents up to 30 Amps and output voltages from 1 to 10 Volts with a setpoint resolution of 0.01 Amps. Key features include a rise time as fast as 300μs, multiple layers of laser diode protection, and a user-friendly interface with analog and RS-232/UART communication. It's suitable for laser applications requiring high stability and fast response times.

Product Code
Current Resolution
< 10 mA (1%, 0.01 Amp)
Current Ripple
<0.2 %
Dimensions
37 x 58 x 21 mm (OEM)
78 x 124 x 43 mm (Table Top)
78 x 155 x 43 mm (Table Top + Connectors)
Fall Time
300 μs (Minimum)
1.5 ms (Maximum)
Integration
Table Top
Interface
RS-232, UART
Operation Modes
Continuous, Quasi-Continuous
Output Current
0 - 30 A
Output Voltage
1 - 10 V
Rise Time
300 μs, 700 μs (15 A, Minimum, Maximum)
300 μs, 600 μs (30 A, Minimum, Maximum)
Safety Features
Interlock, Laser Current Limit, Laser Overvoltage Protection, Over Temperature Protection, Reverse Current Protection, Soft Start
Supply Voltage
10 - 14 V
Supplier Location
Lithuania

Technical Documents

KDB__V1 (pdf) Data sheet & manual (pdf) Software user manual (pdf) Bench soft program (zip)
