Photomultiplier Tubes

PMT (tube only) - R4607A-01

HAMAMATSU PMT (tube only) image 0
HAMAMATSU PMT (tube only) image 1
HAMAMATSU PMT (tube only) image 2
HAMAMATSU PMT (tube only) image 3
4/4 images
Updated:
5 hours ago

PMT (tube only)

Product Code
Price
Request quote
Availability
Contact Supplier
Product Details
See all HAMAMATSU products

Product Specifications

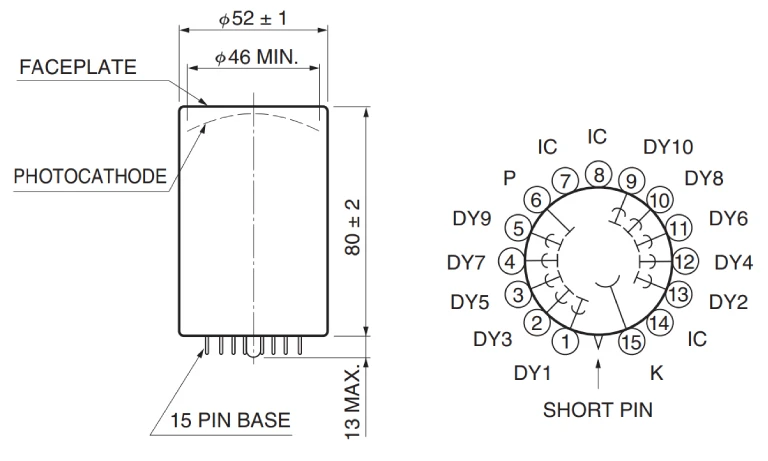

The photomultiplier tube features a 51mm diameter with a head-on type design. It includes a high-temperature bialkali photocathode with an effective area of 46mm diameter. Its spectral response ranges from 300 nm to 650 nm.

Product Code
Dimensions
Ø 51 mm (Tube Size)
Wavelength Range
375 nm (Peak Sensitivity)
300 - 650 nm
Active Area
1662.0 mm2
Active Area Diameter
46 mm
Anode Current
20 μA (Maximum)
Anode to Cathode Voltage
1.8 kV
Blue Sensitivity Index
6 (Typical, Cathode)
Dark Current
50 nA (Maximum, After 30 Min)
3 nA (Typical, After 30 Min)
Detection Wavelength Region
UV, Visible
Dynode Stages
10
Gain
5 × 105 (Typical, Anode)
Luminous Sensitivity
40 μA/lm (Typical, Cathode), 5 A/lm (Minimum, Anode), 20 μA/lm (Minimum, Cathode), 20 A/lm (Typical, Anode)
Peak Response Wavelength
375 nm
Photocathode Material
High Temperature Bialkali
Radiant Sensitivity
25000 A/W (Anode, Typical)
0.051 A/W (Cathode, Typical)
Rise Time
2.2 ns (Typical)
Sensing Area
Ø 46 mm
Sensor Type
Bialkali Photocathode
Supply Voltage
1.5 kV
Transit Time
28 ns (Typical)
Window Material
Borosilicate glass
Supplier Location
Japan
