Photomultiplier Tubes

Current Output PMT Module - H10720-20

HAMAMATSU Current Output PMT Module image 0
HAMAMATSU Current Output PMT Module image 1
HAMAMATSU Current Output PMT Module image 2
HAMAMATSU Current Output PMT Module image 3
1/4 images
Updated:
4 days ago

Current Output PMT Module

Product Code
Price
Request quote
Availability
Contact Supplier
Product Details
See all HAMAMATSU products

Product Specifications

The H10720 and H10721 series photomultiplier tube modules feature a metal package PMT and high-voltage power supply, offering high gain, wide dynamic range, and high-speed response in a compact size. Available in seven types with varying spectral sensitivity, the "P" type is optimized for photon counting. H10720 has pin output; H10721 has flexible cable output.

Product Code

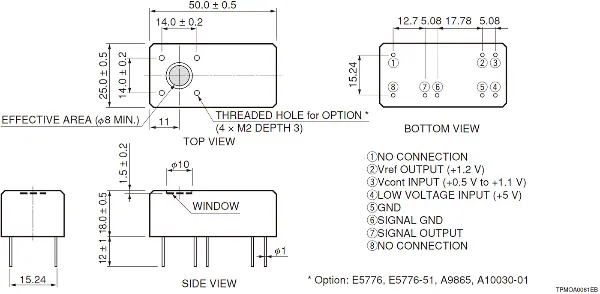

Dimensions
50 x 18 x 25 mm
Wavelength Range
630 nm (Peak Sensitivity)
230 - 920 nm
Applications
Single Photon Counting
Weight
42 g
Key Features
Low Dark Counts
Wide Sectral Bandwidth Response
Operating Temperature
5 - 50 °C
Active Area
50.27 mm2
Active Area Diameter
8 mm
Control Voltage
500 mV - 1.1 V (1 MΩ)
Dark Current
100 nA (Maximum, After 30 Min)
10 nA (Typical, After 30 Min)
Detection Wavelength Region
UV, Visible, Near IR
Input Current
2.7 mA (Maximum)
Input Voltage
+2.8 V to +5.5 V, 5.5 V (Maximum)
Luminous Sensitivity
500 μA/lm (Typical, Cathode), 350 A/lm (Minimum, Anode), 350 μA/lm (Minimum, Cathode), 1000 A/lm (Typical, Anode)
Peak Response Wavelength
630 nm
Radiant Sensitivity
1.5 × 105 A/W (Anode, Typical)
0.078 A/W (Cathode, Typical)
Ripple Noise
100 μV
Rise Time
570 ps (Typical)
Sensing Area
Ø 8 mm
Settling Time
10 s (Maximum)
Storage Temperature
-20 to 50 °C
Supply Current
2.7 mA (Maximum)
Supply Voltage
2.8 - 5.5 V
5.5 V (Maximum)
Supplier Location
Japan

Technical Documents

Datasheet
